QW2420-BKK1S

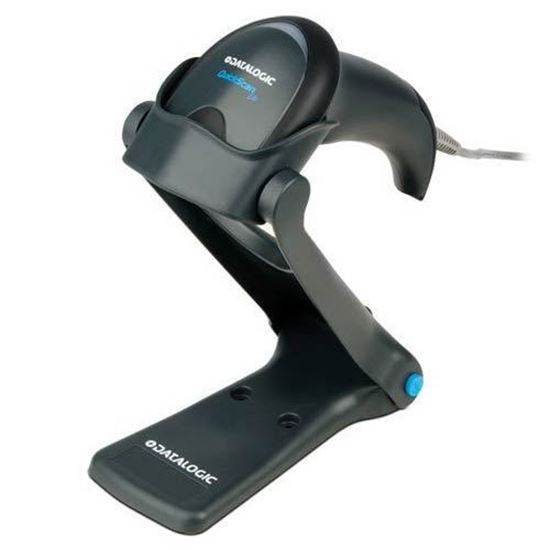

QuickScan Lite QW2420 1D&2D USB BK cable & stand.
brand: Datalogic
SKU: QW2420-BKK1S-3Y
P 5,505.26
  • Description

The QuickScan Lite QW2400 2D area imager is an entry level scanner
specifically designed for reading long and truncated 1D codes and
larger 2D codes from close distance. The QW2400 imager has an
extra-wide Field of View (FOV)which captures these challenging
1D and 2D codes at a nominal distance using different scan angles,
meeting the scanning needs in Retail, Light Manufacturing,
Document/Bill Processing and Banking/Finance. The QuickScan
Lite 2D imager is the most affordable area imager with the best
performance in its class.


DESIGNED WITH THE USER IN MIND
The QW2400 imager is small, lightweight and its ergonomic design
is comfortable to use in daily operations. It offers snappy reading
performance on most commonly used 1D and 2D codes, whether
printed or displayed on a mobile device. The white illumination
combined with the blue aiming dot provides users with a visible and
clear aiming system without irritating the user’s eyes. Datalogic’s
patented ‘Green Spot’ technology provides good-read feedback in
noisy environments and the internal beeper can be silenced for quiet
environments.


SIMPLICITY IS THE BEST
The QW2400 area imager is available in two interface options: USB or
Keyboard Wedge/RS-232. Customers can purchase the scanner only
or separate certified kits which include a cable and stand.
All accessories can be shared with the QW2100 linear imager,
making it easier for customers to upgrade from 1D to 2D readers.



Specification:

DECODING CAPABILITY
1D / Linear Codes - Autodiscriminates all standard 1D codes including GS1, DataBar™ linear codes.
2D Codes - Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code
Postal Codes - Australian Post; British Post; Canadian Post; China Post; Japanese Post; IMB; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes - EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
ELECTRICAL
Current - Operating (Typical): 170 mA @ 5 VDC; Standby/Idle (Typical): 90 mA @ 5 VDC
Input Voltage - 5 VDC +/- 10%
ENVIRONMENTAL
Ambient Light - Up to 92,000 lux
Drop Resistance - Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
ESD Protection - (Air Discharge) 16 kV
Humidity (Non-Condensing) 0 - 95%
Particulate and Water  Sealing - IP42
Temperature - Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
INTERFACES
QW2420-BK: USB
READING PERFORMANCE
Image Sensor - Field of View: 48 x 37º (H x V) Wide VGA: 640 x 480 pixels
Light Source - Aiming: 1 Blue LED; Illumination: White LED 350 - 770 nm
Motion Tolerance -  20 IPS
Print Contrast Ratio (Minimum) - 20%
Reading Angle -  Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 65°
Reading Indicators - Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
Resolution (Maximum) - Code 39: 4 mils: 0.102 mm; PDF417: 6.6 mils: 0.168 mm; QR/Data Matrix: 7.5 mils: 0.191 mm
READING RANGES
Typical Depth of Field - Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39: 5 mils: 0.5 to 12.5 cm / 0.2 to 4.9 in EAN/UPCA: 13 mils: 0.5 to 30.0 cm / 0.2 to 11.8 in PDF417: 6.6 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in Data Matrix: 10 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in QR: 20 mils: 1.0 to 14 cm / 0.4 to 5.5 in
SAFETY & REGULATORY
Agency Approvals - The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a list of certifications. Environmental Compliance  - Complies to China RoHS; Complies to EU RoHS
UTILITIES
Datalogic Aladdin™ - Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JavaPOS - OPOS and JavaPOS utilities are available for download at no charge.
Remote Host Download - Lowers service costs and improves operations
(-RM models only)
WARRANTY
Warranty  - 3-Year Factory Warranty
PHYSICAL CHARACTERISTICS
Colors Available - Black
Dimensions - 7.1 x 17.1 x 6.6 cm / 2.8 x 6.7 x 2.6 in
Weight - 120 g / 4.2 oz
