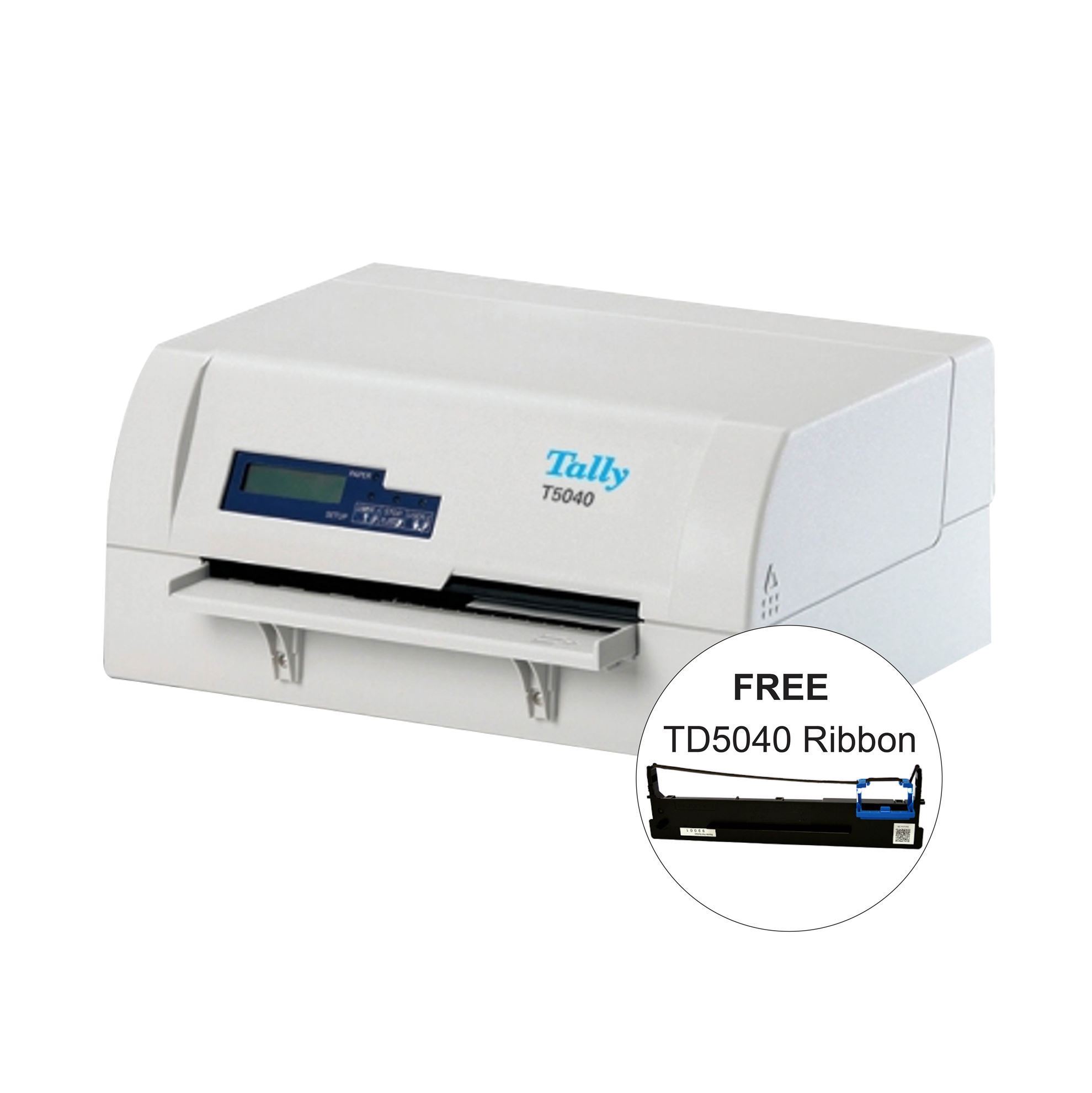

With up to 600 characters per second, the T5040 rapidly
processes media of diverse types ranging from passbooks
and cheques to A5 receipts and A4 information sheets.
The printer‘s flatbed design provides totally assured paper
handling, and with advanced features such as Automatic
Paper Alignment and Auto Gap Adjustment (AGA), they offer
unsurpassed ease-of-use. Using Serial Impact technology
- the most reliable and versatile method available of producing
print - the T5040 is a durable, robust, dependable
printer that supports a wide range of printing applications.
The standard T5040 supports cut forms via a serial interface
connection and a secure command language, as
demanded within the banking environment. As standard,
USB and Parallel interfaces are also included for flexi-
bility of connection and multi-user operation. An alternative
configuration with a second serial interface is available.
Also available are models with Magnetic Stripe encoding
for reading accounts codes directly into the system minimizing
user intervention.
Specification:
Print Speed: 600 cps (Fastest Mode); 400 cps (Draft), 133 cps (LQ) at 10 cpi
Resolution: up to 360 x 360 dpi
Character Density: 10, 12, 15, 16.6, 17.1, 20 cpi
Line Density: 1, 2, 3, 4, 6, 8 lpi
Printhead 24-pin, 400 million characters
Memory 256 KBytes
Standard Connectivity Parallel (Bi-directional), Serial RS-232 and USB 2.0. Optional 2nd Serial.
Standard Emulation IBM 4722, IBM ProPrinter XL24E, Epson LQ (ESC P/2), Olivetti PR50/PR2/PR2e
Fonts Draft, Courier, Roman, Sans Serif, Prestige, Script, Orator, Gothic, Souvenir,
OCR-A/B, 10 Barcodes
Consumables Ribbon: 10 million characters
Standard Paper Handling Cut sheet: Front with auto align, auto load, auto edge & gap detections
Number of Copies 1 original + 6 copies *
Paper Type Cut sheets, multi-part forms, passbooks with a thickness up to 2.0 mm
Paper Weight 60 - 260 g/m²
Paper Size Width: 70 to 240 mm; Length: 70 to 500 mm (cut sheet)
Width: 105 to 235 mm; Length: 125 to 210 (passbooks)
Physical Weight < 10 kg
Physical Size 378 x 280 x 168 mm (W x D x H)
Acoustic 55 dB(A)
Power Voltage 230 V - 50/60 Hz
Power Consumption 73 W Printing; 9 Watt Stand-By
Temperature +10° to +40° C; 15% to 75% humidity
Workload 5,000 transactions per month
MTBF 10,000 hours
Drivers Windows 2000/XP/Vista/7/8/8.1/Server 2003/2008/2012
Classification: Hardware
Class: TA02-043379
Dimension: 378 x 280 x 168 MM
Weight: 10KG
