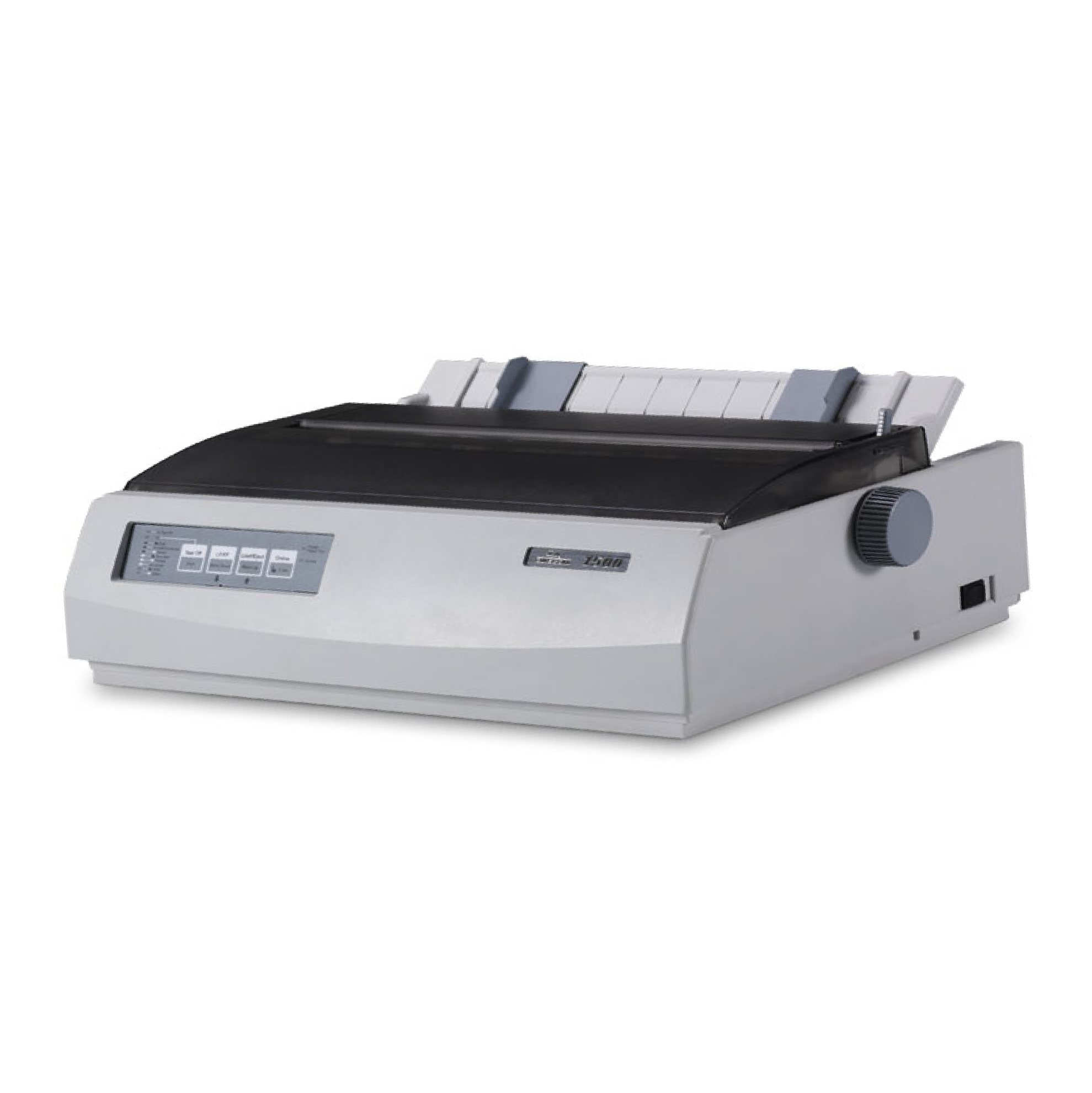

The mid range serial matrix printer Tally Dascom 1500 is
designed for applications where fast throughput and flexible
paper management are vital.
Forms are easy to load as the paper is loaded either at the
bottom or the rear of the printer. For precise paper control
and to enable feeding of continuous forms, the push tractor
can also be used as a pull tractor.
With auto switching USB, parallel interfaces as standard
and an optional Ethernet, this new dot matrix printer offers
a cost effective solution.
With high print speeds of up to 500 characters per second
and the ability to handle different types of print media,
including labels, invoices, reports and multi part forms, they
are well suited for back office applications, including retail,
local government, healthcare, warehousing and distribution
Specification:
- Print Speed 500 cps (Fastest Mode); 440 cps (HS Draft), 400 cps (Draft), 133 cps (LQ) at 10 cpi
- Printhead 24 wires
- Resolution up to 360 x 360 dpi
- Throughput (ECMA 132) 395 pages per hour
- Character Density 10, 12, 15, 17.1, 20 cpi
- Line Density 1, 2, 3, 4, 6, 8, 12 lpi
- Printhead Life 400 million characters
- Memory 256 kB
- Standard Connectivity Parallel (Bi-directional) and USB 2.0
Parallel (Bi-directional), Serial (RS-232) and USB 2.0
- Emulation IBM ProPrinter XL24E, Epson ESC P/2
- Fonts Draft, Roman, Sans Serif, Prestige, Script, Orator, Gothic,
Souvenir, OCR-A/B
- Consumables Ribbon: 7 million characters
Standard Paper Handling Push tractor (rear) or pull tractor (top) and cut sheet insertion
- Number of Copies 1 original + 4 copies
- Paper Type Cut sheets, continuous forms, multi-part forms
- Weight 60-120 g/m²
- Paper Size Width: 67 to 254 mm
- Physical Weight 6.5 kg
- Physical Size 398 x 330 x 135 mm (W x D x H)
- 55 dB(A) in LQ (ISO 7779)
- Power Voltage 230 V - 50/60 Hz
- Power Consumption 51 Watt Printing; <7 W Sleep Mode
- Temperature +10° to +40° C; 20% to 85% humidity
- Workload 20,000 pages per month
- MTBF 20,000 hours
- Drivers Windows 2000/XP/Vista/7/8 and Server 2003/2008
Classification: Hardware
Class: TA03-042159
Dimension: 398 x 330 x 135 mm
Weight: 6.5KG
