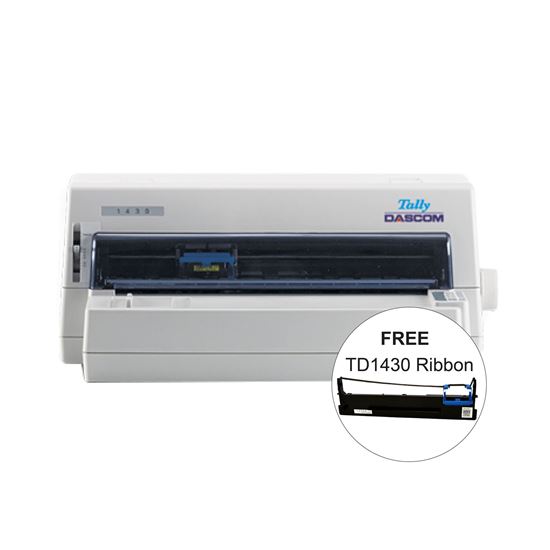

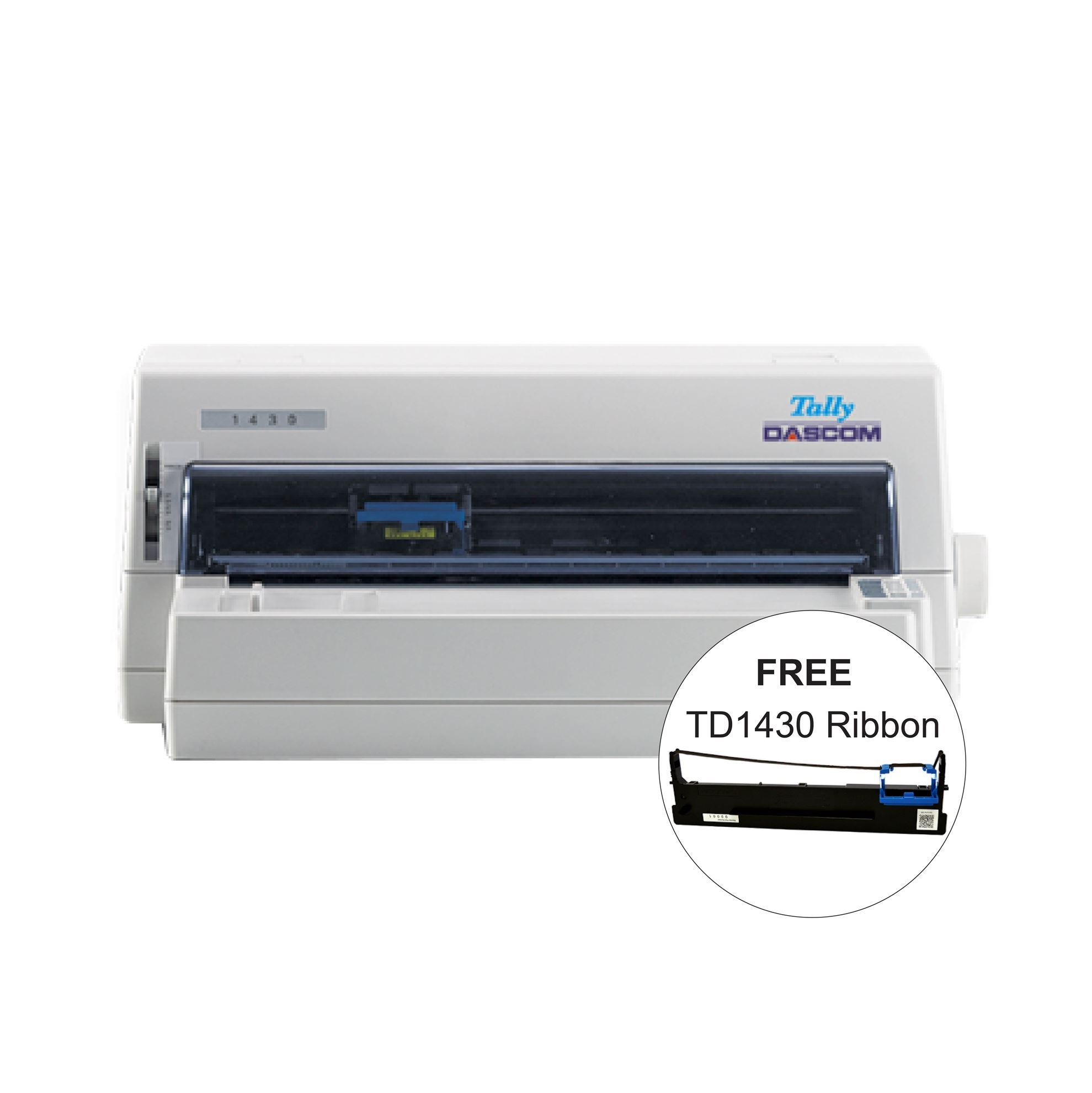

Tally DASCOM’s 1430 flat-bed seral dot matrix printer, is a
24 pin, 106 column printer with USB and parallel interfaces
as standard. The printer is ideal for front office applications
in retail outlets, travel agents, train stations and doctor’s
surgeries where a wide range of media is used.
With high quality output, an easy to use control panel and
the option to use pre-cut or tractor fed paper, the 1430 is
ideal for counter-top printing applications such as, tickets,
receipts, forms and multi-part documents. The long life ribbon of the 1430 means fewer ribbon changes,
less downtime and lower running costs.
With print speeds of 600 characters per second (cps) and
flexible media handling it keeps transactions smooth and
the user happy.
The 1430 is a reliable and easy to use printer, with low
running costs and flexible paper management
Specification:
Print Speed: 600 cps (Fastest Mode); 450 cps (HS Draft), 300 cps (Draft), 100 cps (LQ) at 10 cpi
Print Method: 106 column - Flat-Bed Serial Impact Dot Matrix
Resolution: Up to 360 x 360 dpi
Character Density: 10, 12, 15, 17.1, 20 cpi, Proportional Spacing
Line Density: 1, 2, 3, 4, 6, 8 lpi
Printhead life: 400 Million Strokes per pin
Memory: 68 KB
Standard Connectivity: USB 2.0 and parallel (Bi-directional)
Standard Emulation: Epson (ESC P/2), IBM 2390 Plus
Fonts: Draft, Courier, Roman, Sans Serif, Prestige, Orator, Gothic, Souvenir,
OCR-A/B, 10 Barcodes
Consumables: Black Ribbon: 7 million characters
Standard Paper Handling: Friction and push tractor
Number of Copies: 1 Original + 7 (8-part forms)
Paper Type: Cut sheet and continuous forms
Paper Weight: 52 - 157 gsm
Paper Size: 56 - 305 mm
Physical Weigth: 7.5 kg
Physical Size: 495 x 342 x 202 mm (W x D x H)
Power Voltage: 120 V and 220 V models available
Power Consumption: <3.5 W (Stand-By)
MTBF: 10,000 hours
Drivers: Windows 98/2000/XP/Vista/7/8 and Server 2003/2008
Temperature: 5° C to +35° C
Humidity: 10% to 80% (not condensing)
Acoustic: < 55 dB(A) (ISO 7779)
Note: For OCR applications it is recommended that your readers are tested with print samples supplied
by DASCOM prior to purchase. Paper is a highly variable medium and should be tested prior to
purchase. The quoted consumable life is the average for the printer when used under normal
operation conditions.
Classification: HARDWARE
Class: TA02-28.803.00
Dimension: 495 x 342 x 202 MM
Weight: 7.5KG
