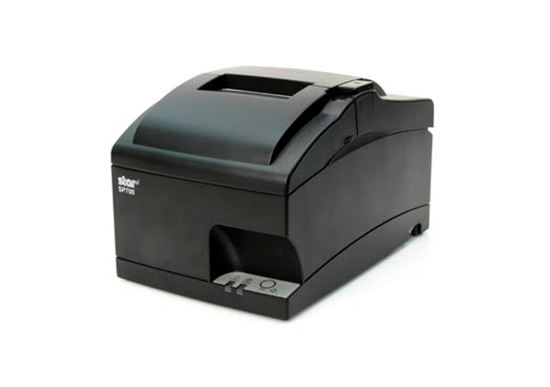

Dot Impact Type Receipt Printer, Equipped with a 9 - pin head (SP712/SP742) and a stepping motor for paper feed drive. The printer is capable of a variety of prints, including graphics and Chinese characters. Logical Seeking Control Equipped with a stepping motor for carriage drive, and corresponds to bidirectional printing using logical seeking. Paper Insertion
Employs a drop - in method for easy paper insertion.
Ribbon cassette is structured for easy mounting/dismounting. Black mark sensor is standard. TOP control enables positioning of the printing position on format paper. Commands Conforms to emulation for both STAR standard commands and ESC/POS system commands. Code Pages
Conforms to an abundance of country code pages. Serial interface: Conforms to RS - 232C. External device drive circuits. The printer employs two drive circuits for drive of peripheral devices, such as cash drawers. Auto - cutter. Both partial and full cuts are possible by changing the mounting position. Employs universal power supply Built - in switching type universal power supply
Specification:
Print Method 9 Pin Serial Impact Dot Matrix
Interface: Serial Interface
Print Speed Capable of printing 13 x 20 line receipts per minute from
4.7 to 8.9 lps depending on number of columns
Paper Feed Speed Approx. 5.6 inches per second (@ continuous feed)
Print Direction Bi-directional, Logic Seeking
Print font:
Character Matrix 7 x 9 (Half dot) / 5 x 9
Column capacity 42 / 35
Character Size (mm) 1.2 (W) x 2.42 (H) / 1.5 (W) x 2.42 (H)
Character Set 95 Alphanumeric, 32 International
Code Pages 40
Character Per Inch (CPI) 16.9 / 14.1
Paper Loading Drop-In and Print, Easy Load with see-through cover
Paper Handling:
Width with guide included 76mm (default), 69.5mm, 58mm (± 0.5) x 85mm roll diameter
Thickness 1 ply + 2 copies (0.06 ~ 0.085mm)
Wall Mount Facility Available on all models (up to 2 part paper)
Paper Sensors Paper End (Near End Sensor option – factory fit)
Ribbon Life:
RC700B 3 million characters
Data Buffer 8 Kbyte
Program ROM Flash Memory (16Mbit), NV bit image 256 Kbyte
Emulation Star Mode and ESC/POS™
Power Supply INTERNAL Power Supply with power cable included
D.K.D. Function 2 Drivers
Reliability MCBF 22 million lines
Autocutter (Guillotine) Partial, 1.5 million cuts
Overall Dimensions 160 (W) x 245 (D) x 152 (H) mm
164 (W) x 245 (D) x 152 (H) mm (rewind versions)
Weight SP742: 3.18Kg
Classification: HARDWARE
Class: ST0101-39332510
Dimension: 160 x 245 x 154 mm
Weight: 2.96KG
