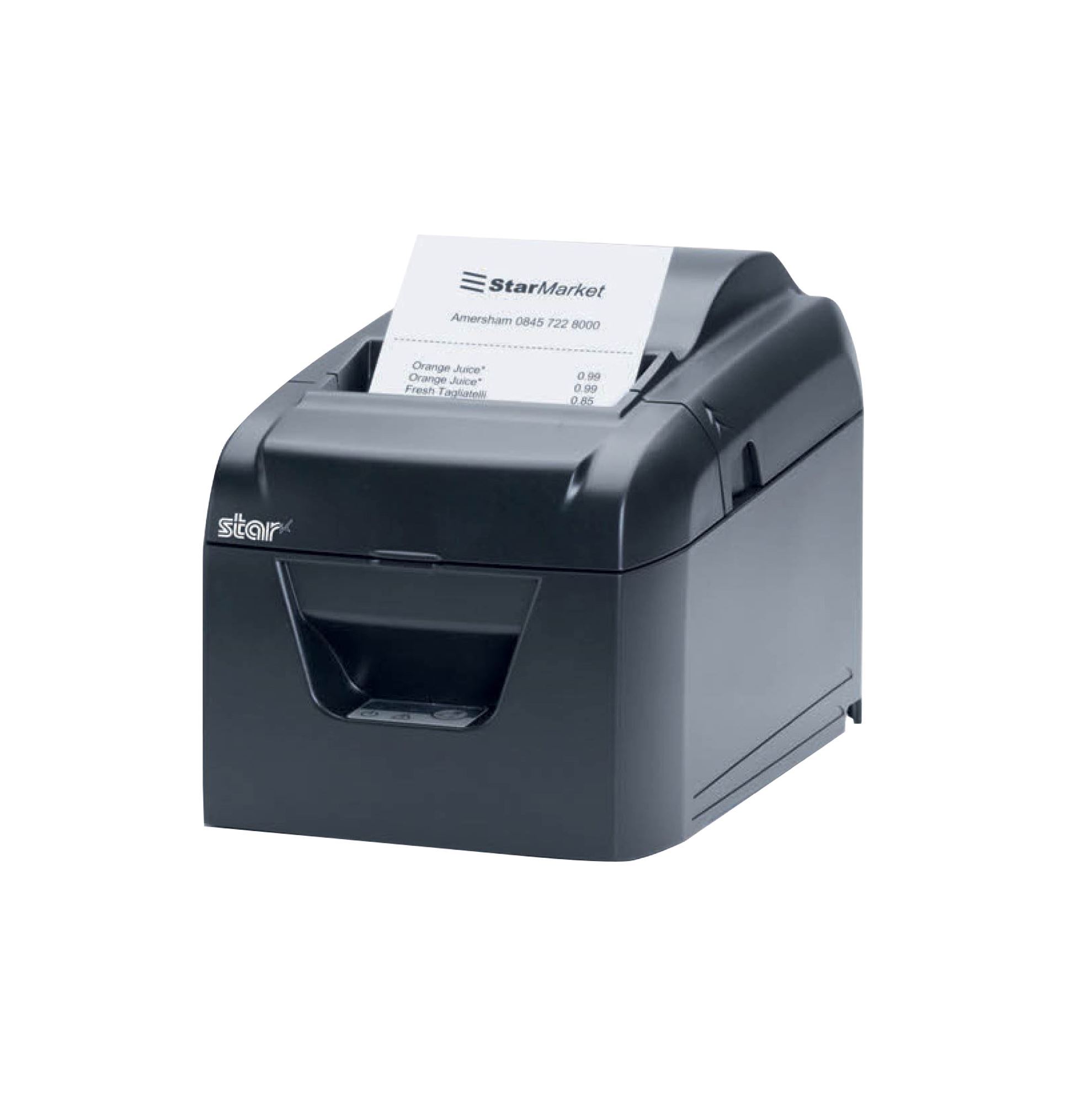

STAR BSC10UD

Print speed up to 250mm/sec; Paper Width: 80mm / 58mm; USB+Serial interface
SKU: ST0101-39465031
P 9,500.00
  • Description

Star Micronics BSC-10 is a low-cost, direct thermal printing speed printer. With its simple design and easy paper loading, this printer is designed to outperform the competition in retail and hospitality environments. Its high-speed receipt processing (250mm / second), dual interface and 10cm roll capacity make it the first choice for retailers and operators in the global hospitality industry. The BSC-10  USB + Serial connectivity.
The BSC-10 has ESC-POS ™ emulation and Bematech value configuration utility, including Windows ™ and OPOS drivers.



Specifications:

Print Method Direct Line Thermal Printing
Print Resolution 203 dpi
Speed:
TRUE Print Speed Up to 250mm/second
Paper Feed Speed Up to 300mm/second
Software Control:
Logo Store Epson compatible – up to 512kB / 9,025 logos (new)
Emulations ESC/POS™
Code pages 40 + 1 blank
Dual Interface USB / Serial 25pin
Windows Driver ESC/POS™ with StarPRNT Intelligence & config utility
Drivers available Windows XP SP3, Vista 32/64 SP2, 7 32/64 None SP/SP1
No Star Line mode available
Character Size / Line Spacing Font A: 12 x 24 / Font B: 9 x 24 / Font A: 42 / 48 (80mm),
30 / 33 (58mm)
Font B : 56 / 64 (80mm), 40 / 45 (58mm) (Selectable by
Memory Switch)
Compressed Print Vertical 50%, Horizontal 67% (by Firmware)
Barcodes 1D x 9 versions / 2D - PDF417
Paper Specifications:
Width 58 / 80mm (80mm default with 58mm guide)
Printable Width 64mm / 45mm
(72mm / 50.8mm Selectable by Memory Switch)
Roll Diameter up to 102mm
Thickness 0.065 ~ 0.085mm (0.057 ~ 0.065mm special paper only)
Top Margin Approx. 11mm
Paper Sensors Photo PE sensor: Standard
Power Supply PS60 supplied in box
Input / Supply Voltage 100V (-10%) to 240V (+10%) / 24V DC
Reliability 60 million lines MCBF
Auto-Cutter Partial Cut (One-Point Center) / Guillotine Type
Min. Cut Length 24mm (0.065mm≦ paper thickness≦ 0.085mm)
Auto-Cutter Life 1 million cuts
Print Head Life 100 Km (using recommended paper)
Additional Information:
Simplified Tear-Bar Supported
Vertical Use Not supported (only up to 45 degrees)

Classification: HARDWARE

Class: ST0101-39465031

Dimensions: 142 x 212 x 149 mm

Weight: 1.34KG
