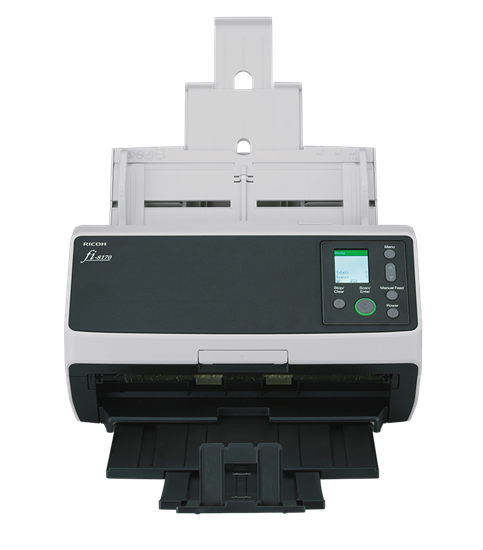

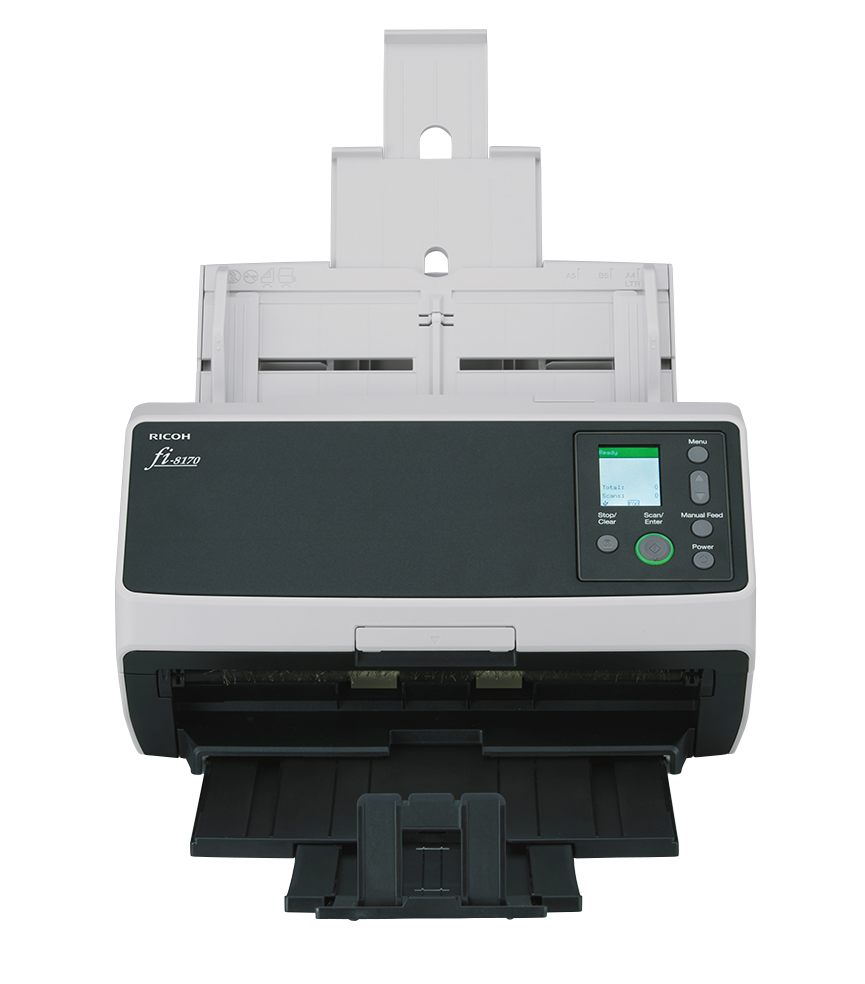

The fi-8170 offers an innovative and superior scanning experience. Compact and reliable, the scanner achieves scan speeds of 70 ppm/140 ipm (200/300 dpi, color, A4 portrait), loads up to 100 sheets at a time, and comes equipped with a capability of scanning up to as many as 10,000 sheets a day.
Scans big volumes with “Automatic Separation Control”
"Paper Protection" function using Image Monitoring technology and sound technology
Optimized high-quality image data with "Clear Image Capture"
Scans variety of documents including passports and booklets
Color LCD Panel for easy operation
PaperStream IP and PaperStream Capture providing advanced image processing functions, with PaperStream Capture Pro software as a premium option
PaperStream ClickScan for ad-hoc use
Specifications:
Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed*1 (A4 Portrait)
(Color*2/Grayscale*2/Monochrome*3) Simplex 70 ppm (200/300 dpi)
Duplex 140 ipm (200/300 dpi)
Image Sensor Type CIS x 2 (front x 1, back x 1)
Light Source RGB LED x 2 (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution*4
(Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White / Black (selectable)
Document Size Maximum*6 215.9 x 355.6 mm (8.5 x 14 in.)
Minimum 48 x 50 mm (1.9 x 2 in.)
Long Page Scanning*7 6,096 mm (240 in.)
Paper Weight (Thickness) Paper 20 to 465 g/m² (5.3 to 124 lb)*8
Booklet Less than 7 mm (0.276 in.)*9
Plastic Card 1.4 mm (0.055 in.) or less*10
ADF Capacity*11*12 100 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume*13 10,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor), Length detection
Paper Protection Image monitoring, Sound detection (iSOP)*14
Interface USB USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T
