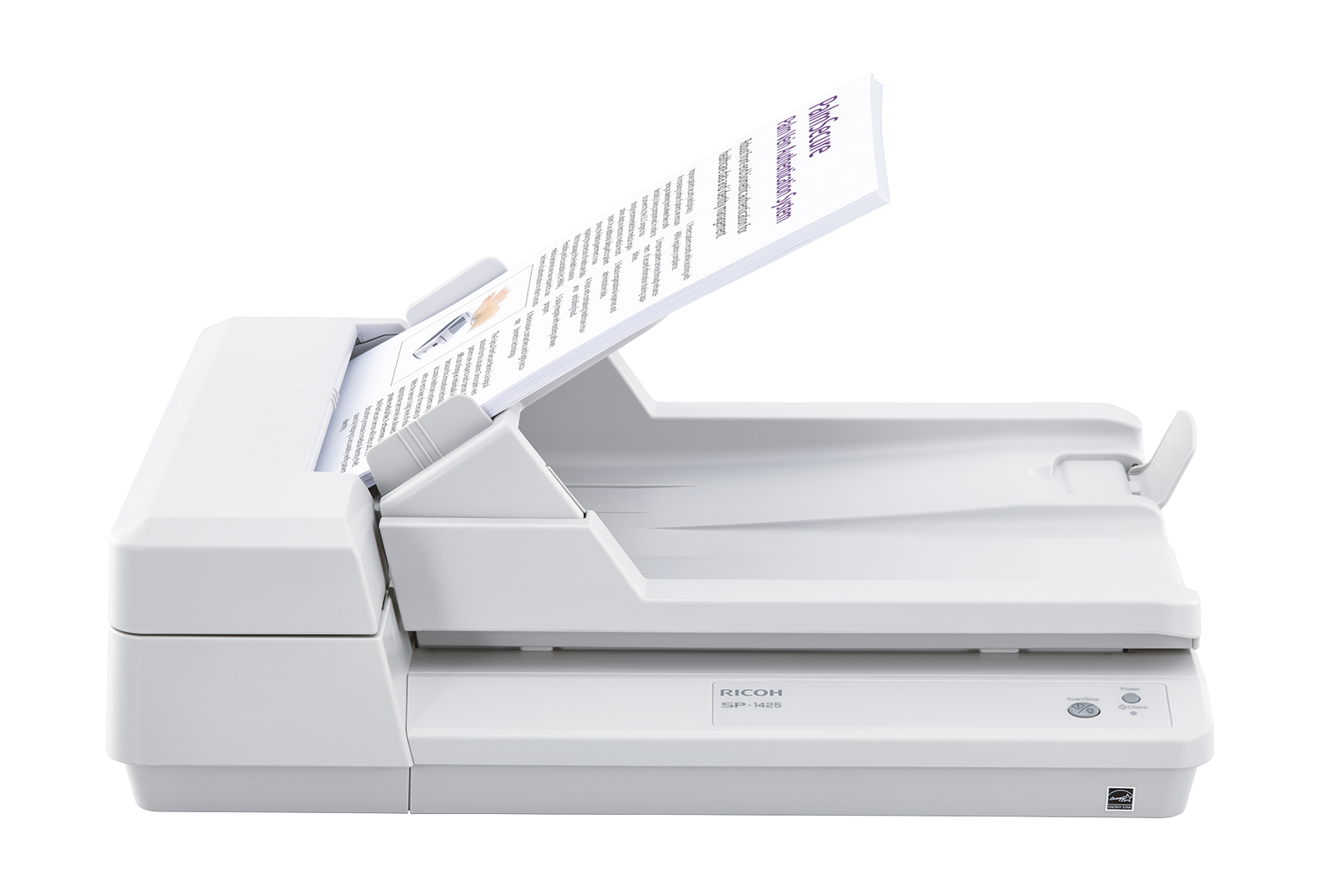

The SP-1425 is an A4-compatible ADF scanner equipped with a flatbed. Designed to be placed in limited spaces, the scanner delivers simple operation and reliable performance.
Comfortable scanning speeds of 25 ppm/50 ipm
Versatile scanning with both flatbed and ADF
Compact and user-friendly design
Comes with PaperStream IP for SP Series and PaperStream Capture Lite providing advanced image processing functions
Various software available for better data management
PaperStream ClickScan also available for ad-hoc use to scan in 3 simple steps
Specifications:
Scanner Type ADF (Automatic Document Feeder) / Flatbed, Duplex
Scanning Speed*1 (A4 Portrait)
(Color*2/Grayscale*2/Monochrome*3) ADF Simplex: 25 ppm (200/300 dpi)
Duplex: 50 ipm (200/300 dpi)
Flatbed 4 seconds (200/300 dpi)
Image Sensor Type Single line CMOS-CIS x 2 (front / flatbed x 1, back x 1)
Light Source 3 Color LED x 2 (front / flatbed x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution*4
(Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format*6 Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors ADF: White, Flatbed: Black
Document Size (ADF) Maximum 216 x 356 mm (8.5 x 14 in.)
Minimum 114 x 140 mm (4.5 x 5.5 in.)
Long Page Scanning*7 3,048 mm (120 in.)
Document Size (Flatbed) Maximum 216 x 297 mm (8.5 x 11.7 in.)
Paper Weight (Thickness)*8 52 to 127 g/m2 (14 to 34 lb)
ADF Capacity*9 50 sheets (A4 80 g/m2 or Letter 20 lb)
Expected Daily Volume*10 4,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor)
Interface*11 USB 2.0 / USB 1.1
