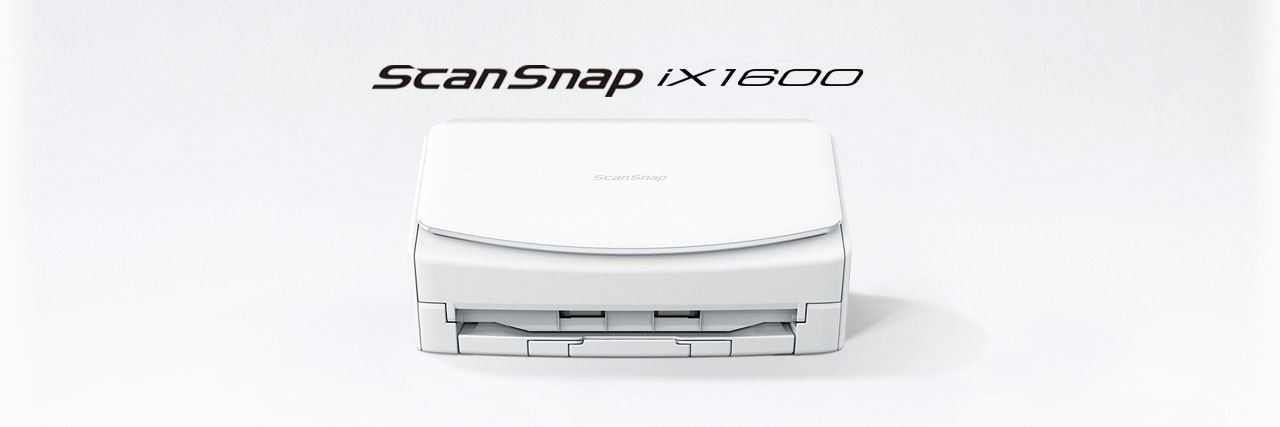

The newest flagship in the ScanSnap family is 33% faster*, giving you more time back in your day. Designed for everyday use, the ScanSnap iX1600 gets documents digitized, organized and sent anywhere—anytime—with minimal effort.
Fast, double-sided scans up to 40 pages per minute
50-page automatic document feeder (ADF)
Equipped with Wi-Fi (2.5/5GHz) and USB connectivity
Instantly creates a variety of files, including searchable PDFs, JPEGs and editable Microsoft® Word, Excel and PowerPoint® files
Scan envelopes, plastic cards, folded A3 documents, and documents with sticky notes with Manual Feed mode
Scans 4″x6″ photos in under a second with intelligent features, such as auto-facial orientation and red-eye reduction
SPECIFICATION:
Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed*1 (A4 portrait) Auto mode*2 Simplex / Duplex: 40 ppm
Normal mode Simplex / Duplex: 40 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
Better mode Simplex / Duplex: 40 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi)
Best mode Simplex / Duplex: 40 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi)
Excellent mode*3 Simplex / Duplex: 10 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi)
Scanning Color Mode Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome*4 detection)
Image Sensor CIS x 2 (Front x 1, Back x 1)
Light Source 3 color LED (Red / Green / Blue)
Optical Resolution 600 dpi
Document Size Normal Scan*5 Minimum 50.8 x 50.8 mm (2 x 2 in.)
Maximum 216 x 360 mm (8.5 x 14.17 in.)
Manual Scan*6 A3, B4, 279 x 432 mm (11 x 17 in.)
Long Paper Scanning*7 3,000 mm (863 mm in 32-bit)
Smart Device: 863 mm (Duplex), 1,726 mm (Simplex)
Paper Weight (Thickness) 40 to 209 g/m2 (11 to 56 lb)
A8 or less: 128 to 209 g/m2 (34 to 56 lb)
Cards: 0.76 mm or less (Compliant with the ISO7810 ID-1 type) (Includes embossed cards in landscape orientation)
ADF Capacity*8 50 sheets (A4, 80 g/m2 or 20 lb)
Multifeed Detection Overlap detection (Ultrasonic sensor), Length detection
Interface USB USB 3.2 Gen1 / USB 3.1 / USB 3.0 / USB 2.0 / USB 1.1 (Connector Type: Type-B)*9
Wi-Fi IEEE802.11a/b/g/n/ac
Frequency band: 2.4 GHz / 5 GHz*10
Wi-Fi Interface Connection Mode Access Point Connect Mode (Infrastructure mode)*11
Direct Connect Mode (Ad-hoc mode)*12
Security WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TKIP / AES), WPA2-PSK (AES)
Easy Installation WPS2.0
Rated Power (EIRP) (North America) 2.4 GHz: 11b: +23.5dBm / 11g: +22.0dBm / 11n/ac: +22.0dBm (20 / 40MHz)
5 GHz*10: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz)
Rated Power (EIRP) (Others) 2.4 GHz: 11b: +19.0dBm / 11g: +20.5dBm / 11n/ac: +20.5dBm (20 / 40MHz)
5 GHz*10: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz)
LCD 4.3 in. color TFT touch screen
Power Requirements AC 100 to 240 V, 50/60 Hz
Power Consumption Operating Mode 17 W or less
Sleep Mode USB connected: 1.5 W or less
Wi-Fi connected: 1.6 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR, RoHS
Dimensions (W x D x H)*13 292 x 161 x 152 mm (11.5 x 6.3 x 6.0 in.)
Weight 3.4 kg (7.5 lb)
Driver ScanSnap specific driver
Windows: Does not support TWAIN / ISIS™
macOS: Does not support TWAIN
Software*14 ScanSnap Home (for PC) (All-in-one document management software/driver)
ScanSnap Home (for mobile)
Kofax Power PDF Standard (Windows)*15
Kofax Power PDF Standard for Mac (Mac)*15
ABBYY FineReader for ScanSnap™
Included Items Safety Precautions, AC cable, AC adapter, USB cable, Receipt Guide
