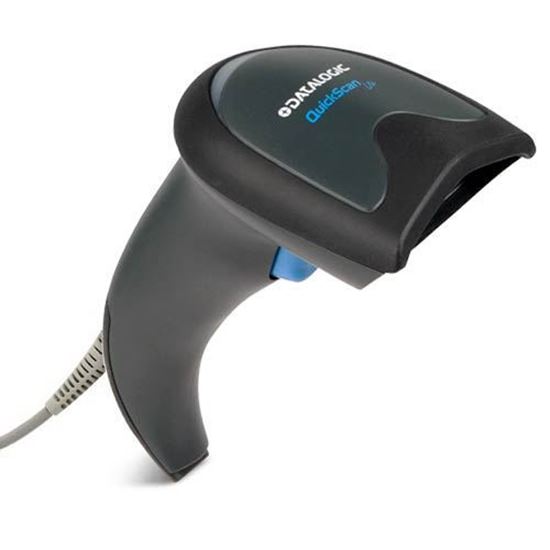

The QuickScan™ Lite QW2100 linear imager is an entry level product created
specifically for reading long and truncated bar codes which is common in
some areas of the world. It is perfect for use in retail, light manufacturing,
document/bill processing and banking/finance environments.
The QW2100 imager is small, lightweight and its ergonomic design is
comfortable to use during daily operations. It offers snappy reading
performance on most 1D bar codes and features a wide scanning angle with
an extended scanning line which is perfect for capturing longer and wider bar
codes typically found on utility bills and used by manufacturers of electronic
parts. Additionally, the scanning line is thinner and brighter, allowing users
to scan at wide angles without having to increase the scanning distance.
The QW2100 imager is available in Black, USB Interface, equipped with cable and stand to facilitate hands-free reading options. VERSATILE STAND
A specially designed stand has been created for the QW2100 imager which is
light in weight, collapsible to use as a holder instead of a stand, and also has
a ‘tiltable head’ for various angle settings.
Specification:
QUICKSCAN™ LITE QW2100
DECODING CAPABILITY
1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1; DataBar™ linear codes.
Postal Codes: China Post
Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
ELECTRICAL
Current: Operating (Typical): <180 mA @ 5 VDC Standby/Idle (Typical): <25 mA @ 5 VDC Sleep Mode: USB Suspend (QW2120): <2 mA @ 5 VDC Low Power Mode (QW2170): <6 mA @ 5 VDC
Input Voltage: 5 VDC +/- 0.5 V
ENVIRONMENTAL
Ambient Light: 120,000 lux
Drop Resistance: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface;
ESD Protection(Air Discharge): 16 kV
Humidity (Non-Condensing): 5 - 95%
Particulate and Water Sealing: IP42
Temperature
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F
INTERFACES
Interfaces: QW2120-BK: USB
PHYSICAL CHARACTERISTICS
Colors Available: Black
Dimensions: 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
Weight: 119.0 g / 4.2 oz
READING PERFORMANCE
Light Source: Red LED 610-650 nm
Print Contrast Ratio(Minimum): 25%
Read Rate (Maximum): 400 reads/sec.
Reading Angle Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°
Reading Indicators: Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED; Good Transmission
Resolution (Maximum): 0.102 mm / 4 mils (1D Codes)
Field of View: 56° +/- 2°
READING RANGES
Typical Depth of Field: Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light
dependent. 5 mils : 2.5 to 15.0 cm / 1.0 to 6.0 in 7.5 mils : 0 to 24.0 cm / 0 to 9.4 in 10 mils: 0 to 35.0 cm / 0 to 13.8 in 13 mils: 0 to 40.0 cm / 0 to 15.7 in 20 mils: 0 to 60.0 cm / 0 to 23.6 in
SAFETY & REGULATORY
Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a list of certifications.
Environmental Compliance: Complies to China RoHS; Complies to EU RoHS
UTILITIES
Datalogic Aladdin™: Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JavaPOS: JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at not charge.
Remote Host Download: Lowers service costs and improves operations (-RM models only)
WARRANTY
Warranty: 3-Year Factory Warranty
Dimension: 170 x 65 x 70 mm
Weight: 0.119 kg (unit only)
