POLY STUDIO X30 VIDEO BAR
Just because your meetings are in small spaces doesn’t mean those meetings
aren’t important.

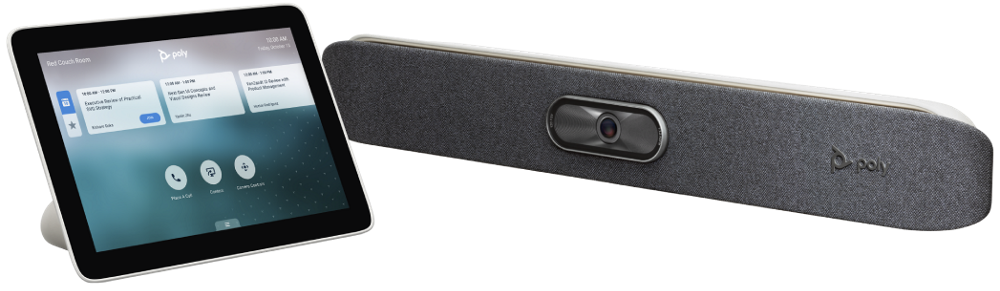

Meet the Poly Studio X30, an all-in-one video bar for huddle and small rooms. It’s
radically simple to use with support for leading cloud video services built right in—no
PC or Mac required. Voices are crisp and clear, thanks to a beamforming microphone
array and acoustic chamber design. Built-in, wireless content sharing lets users share
from their devices without the need for cables or pucks. Setup, management, and
maintenance are all streamlined, too. Say hello to lower IT costs.
• Ideal for rooms of up to six participants
• Compact, lightweight design easily fits on top or underneath display
• Affordable price delivers excellent huddle room performance
without breaking the bank
Specification:
BENEFITS
• Get any small room up and running in
minutes, with a simple setup process
and all-in-one design
• Make it easy for anyone, even guests,
to share content wirelessly from any
personal device—with no special apps
or tools needed
• Powerful audio pickup and incredible
noise blocking technology allows every
word to be heard without distractions
• On-board support for cloud service
platforms means no room PC or Mac
is required
SPECIFICATIONS
POLY STUDIO X30
PACKAGE INCLUDES:
• Poly Studio X30
• Cable bundle
• Monitor clamp
• Privacy cover
VIDEO STANDARDS AND PROTOCOLS
• H.264 AVC, H.264 High Profile, H.265
VIDEO INPUT
• 1x HDMI
VIDEO OUT
• 1x HDMI
• Touch display compatible
PEOPLE VIDEO RESOLUTION
• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
CONTENT VIDEO RESOLUTION
• Input
- UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600
• Output
- UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
• Content frame rate
- 5–60 fps (up to 4K resolution at 15 fps
in call)
CONTENT SHARING
• Poly Content App support
• Apple Airplay
• Miracast
• HDMI input
• Whiteboarding
CAMERA
• 4x digital zoom
• 120° FOV
• UHD 2160p (4K) capture resolution
• Automatic people framing
AUDIO INPUT
• Four MEMS microphones
AUDIO OUTPUT
• Single Speaker
OTHER INTERFACES
• 1x USB-A (3.0)
• 1x USB-C
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO)
Multi-channel Concurrency
Dimension: 441.8mm x 62.5 mm x 61.6mm
Weight: 1.6 lbs/.73 kg
