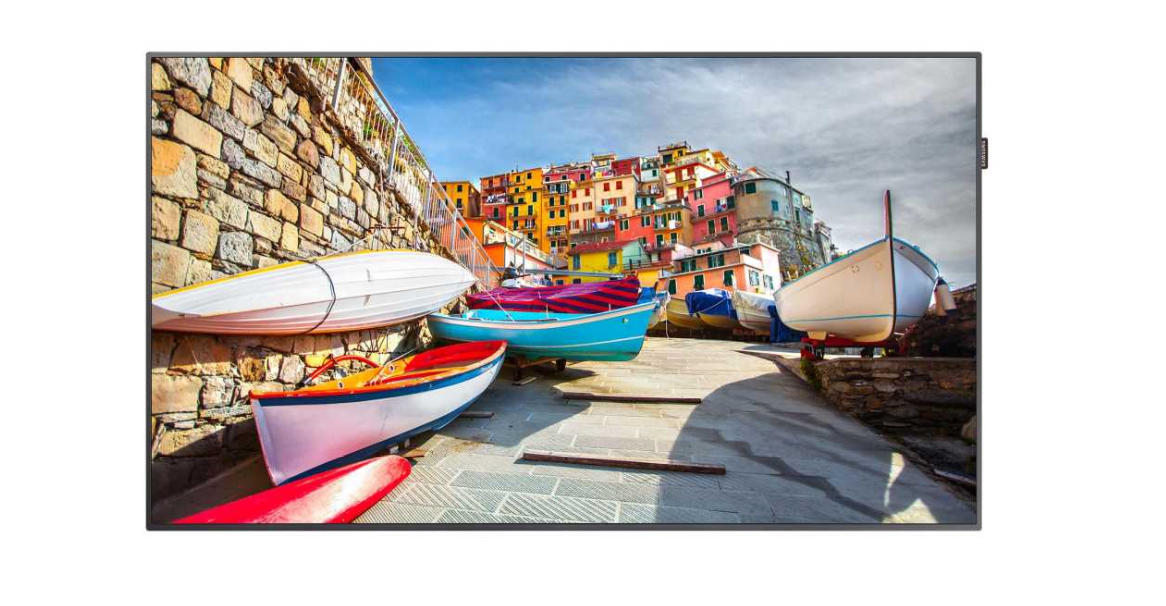

LED, 9mm (Top/Side), 500nit, Built-in MagicInfo Player S4, / Amplify business content efficiently through captivating TIZEN-powered displays
HIGHLIGHTS
· Accommodate any business setting through slim design
· Deploy advanced web applications to effectively manage content by using SSSP 4.0 powered by TIZEN
· Effectively handle all environmental conditions and dusty situations thanks to IP5x-certified displays
· Realize complete and convenient control by navigating display hub with Central IR
· Discover heightened image visibility and information readability with non-glare panels
CLEAR AND CONSISTENT CONTENT DELIVERY
Samsung’s TIZEN-powered PMH Series premium displays achieve peak per-formance all while maintaining a stylish and captivating design. The PMH Series displays leverage elevated brightness and refined image sharpness to ensure a consistently clear presentation even in settings with variable lighting. Additionally, the IP5x-certified PMH Series displays achieve ro-bust, 24/7 durability for dependable and uninterrupted operations. As a result, businesses can feel confident that their messages will be delivered exactly as intended anywhere and at any time.
IP5X CERTIFIED DISPLAY
PMH standalone displays are IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions.
The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conven¬iently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 24/7 content delivery is always assured regardless of surrounding natural or interactive conditions.
SSSP 4.0_EMBEDDED MEDIA PLAYER POWERED BY TIZENTM
PMH series that supports SSSP 4.0 allows for a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and de¬ploy advanced web applications which can help to effectively manage con¬tent and SMART Signage for their customers.
POWERFUL PERFORMANCE AND SIMPLE USABILITY
1) Enhanced 3D Graphic Engine : The display supports 3 movies playing concur¬rently on one screen with enhanced 3D graphic performance
2) PC-less Touch Solution : Touch performance is fully realized due to the TIZEN OS that bypasses the need for a PC.
3) Enhanced Security : A holistic security architecture allows for powerful security through 3 layers of supplementation.
4) Easy Development : The ability to develop the solution further is facilitated, thanks to development tools such as SW Development Kit or Remote Web Inspector.
5) Simple Usability : Usability is attained due to a touch-friendly UI while web browsers are able to display a homepage without the need to develop a web app.
CONNECTIVITIES :
1. USB 1
2. USB 2
3. RS232C IN
4. RS232C OUT
5. AUDIO IN
6. AUDIO OUT
7. HDMI 1
8. HDMI 2
9. DVI/PC/MAGICINFO IN
10. DP IN
11. DP OUT
12. RJ45
PANEL
Diagonal Size : Class 43" / Measured 42.5"/ 107.9 cm
Type : 60 Hz E- LED BLU
Resolution : 1920 x 1080 ( 16:9)
Pixel Pitch ( m m) : 0.0163(H) x 0.49 (V)
Active Display Area(mm) : 940.89(H) x 529.25(V)
Brightness (typ) : 500nit
Viewing Angle(H/V) : 178:178
Response Time(G-to-G) : 8ms
Display Colors : 10bit Dithering - 1.07Billion
Color Gamut : 72%
Operation Hour : 24/7
Haze : 44%
DISPLAY
Dynamic C / R : Mega
H- Scanning Frequency : 30- 81kHZ
V - Scanning Frequency : 48 -75HZ
Maximum Pixel Frequency : 148.5 MHz
SOUND
Speaker Type : Built in Speaker (10W + 10W)
CONNECTIVITY INPUT
RGB : DVI-I(D-Sub Common),Display Port 1.2 (2)
VIDEO : HDMI 2.0 (2) / HDCP 2.2
INPUT : HDCP HDCP 2.2
AUDIO : Stereo mini Jack, RGB/DVI/HDMI
USB : USB 2.0 x 2
CONNECTIVITY OUTPUT
RGB : DP1.2(Loop-out)
VIDEO :N/A
AUDIO : Stereo mini Jack
Power Out :N/A
USB :N/A
EXTERNAL CONTROL : RS232C(in/out) thru Stereo Jack, RJ45
EXTERNAL SENSOR : N/A
Tuner : Yes(only for NA)
POWER
Type : Internal
Power Supply : AC 100 -240 V -(+/-10% ) , 50/0 Hz
Power Consumption : Max 154 / Typical[W/h] - EU123, US 66, WW 123 / BTU(Max) -525.14 / Sleep mode - less than 0.5W / Off mode - less than 0.5W
MECHANICAL SPECS
Dimension (mm) : Set - 964.0 x 554 .3 x 30.5 ) / Packages 1077 x 661 x 154
Weight ( kg) : Set 9.5 / Package 13.3
VESA Mount : 200 x 200
Stand Type Foot Stand ( Optional )
Bezel Width ( Top/ Side/Bot) (mm) - 9.0/9.0/11.0
OPERATION
Operating Temperature : 0° C - 40 °C
Humidity : 10-80%
FEATURE
Key : Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0
Special
H/ W : Non Glare Panel, Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), IP5x, Center IR
S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/ RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall(ex-ternal source only), Multi Channel, Mobile Control, Event Schedule, Backup Player
Feature
Internal Player (Embedded H/W)
Processor : Cortex-A12 1.3GHz Quad Core CPU
On-Chip Cache : L1 (I/D) : 32KB / 32KB
Memory : L2 (Unified) : 1MB
Clock Speed : 1.3GHz CPU Quad
Main Memory Interface : 2.5GB 3 channel 96bit DDR3-933 (1866MHz)
Graphics : 2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES
Storage (FDM) : 8GB (3.75GB Occupied by O/S, 4.25GB Available, )
Multimedia : Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
IO Ports : USB 2.0
Operating System : Tizen 2.4 (VDLinux)
