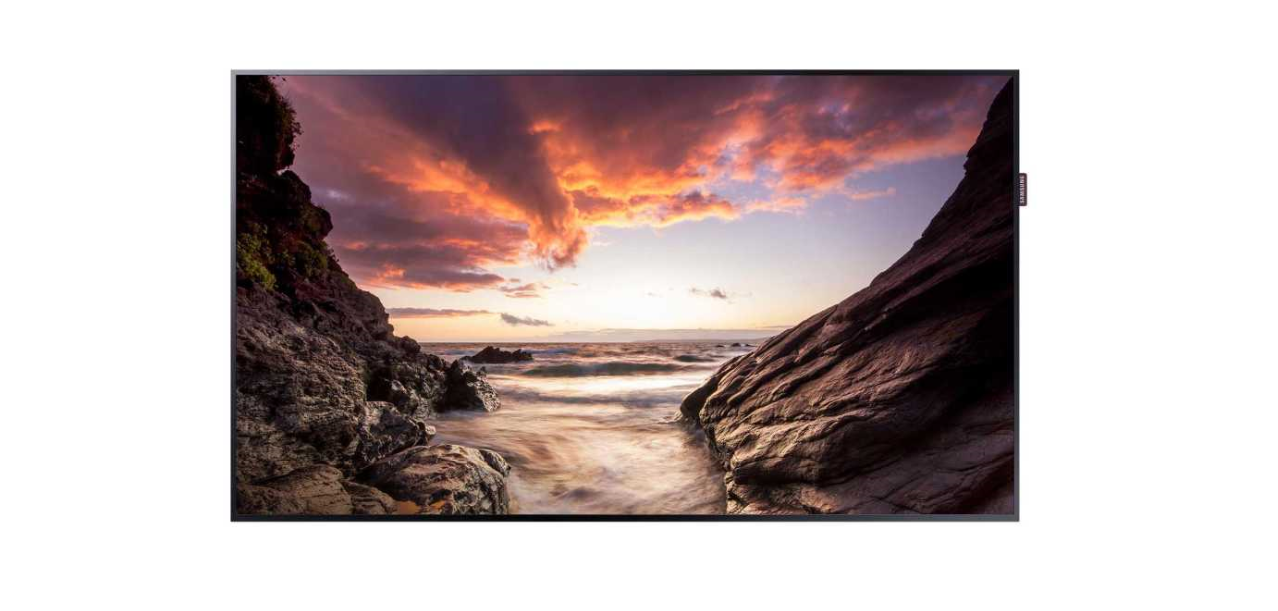

PM32F Samsung Large Format Display

32" Large Format Display LED, 9mm (Top/Side) Bezel, 500nit Brightness, Built-in MagicInfo Player S4 Amplify business content efficiently through captivating TIZEN-powered displays
SKU: LH32PMFPBGC
P 59,785.71
  • Description

LED, 9mm (Top/Side), 500nit, Built-in MagicInfo Player S4, / Amplify business content efficiently through captivating TIZEN-powered displays

HIGHLIGHTS

· Accommodate any business setting through slim design
· Deploy advanced web applications to effectively manage content by using SSSP 4.0 powered by TIZEN
· Effectively handle all environmental conditions and dusty situations thanks to IP5x-certified displays
· Realize complete and convenient control by navigating display hub with Central IR
· Discover heightened image visibility and information readability with non-glare panels

CLEAR AND CONSISTENT CONTENT DELIVERY

Samsung’s TIZEN-powered PMH Series premium displays achieve peak per-formance all while maintaining a stylish and captivating design. The PMH Series displays leverage elevated brightness and refined image sharpness to ensure a consistently clear presentation even in settings with variable lighting. Additionally, the IP5x-certified PMH Series displays achieve ro-bust, 24/7 durability for dependable and uninterrupted operations. As a result, businesses can feel confident that their messages will be delivered exactly as intended anywhere and at any time.

IP5X CERTIFIED DISPLAY

PMH standalone displays are IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions.
The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conven¬iently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 24/7 content delivery is always assured regardless of surrounding natural or interactive conditions.

SSSP 4.0_EMBEDDED MEDIA PLAYER POWERED BY TIZENTM

PMH series that supports SSSP 4.0 allows for a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and de¬ploy advanced web applications which can help to effectively manage con¬tent and SMART Signage for their customers.

POWERFUL PERFORMANCE AND SIMPLE USABILITY

1) Enhanced 3D Graphic Engine : The display supports 3 movies playing concur¬rently on one screen with enhanced 3D graphic performance
2) PC-less Touch Solution : Touch performance is fully realized due to the TIZEN OS that bypasses the need for a PC.
3) Enhanced Security : A holistic security architecture allows for powerful security through 3 layers of supplementation.
4) Easy Development : The ability to develop the solution further is facilitated, thanks to development tools such as SW Development Kit or Remote Web Inspector.
5) Simple Usability : Usability is attained due to a touch-friendly UI while web browsers are able to display a homepage without the need to develop a web app.

Diagonal Size : 32"
Type : 60Hz E-LED BLU
Resolution : 1920x1080 (16:9)
Pixel Pitch(mm) : 0.360(H) x 0.360(V)
Active Display Area(mm) : 698.4(H) x 392.85(V)
Brightness(Typ.) : 400nit
Contrast Ratio(Typ.) : 5000:1
Viewing Angle(H/V) :178:178
Response Time(G-to-G) : 8ms
Display Colors : 10bit Dithering - 1.07Billion
Color Gamut : 72%
Operation Hour :16/7
Haze : 2%

DISPLAY

Dynamic C/R : Mega
H-Scanning Frequency : 30 - 81kHZ
V-Scanning Frequency : 48 - 75HZ
Maximum Pixel Frequency : 148.5MHz

SOUND

Speaker Type : Built in Speaker(10W + 10W)

CONNECTIVITY INPUT

RGB : DVI-I(D-Sub Common), Display Port 1.2 (2)
VIDEO : HDMI (2)
AUDIO : Stereo mini Jack
USB : USB 2.0 x 2

CONNECTIVITY OUTPUT

RGB : DP1.2(Loop-out)
AUDIO : Stereo mini Jack
Power Out : N/A

EXTERNAL CONTROL - RS232C(in/out) thru Stereo Jack, RJ45
Tuner : Yes(only for North America)

POWER

Type: Internal
Power Supply : AC 100 - 240 V- (+/- 10 %), 50/60 Hz

POWER CONSUMPTION

Max[W/h] : 88
Typical[W/h] : EU 61, US 42, WW 61
BTU(Max) : 300.08
Sleep mode : less than 0.5W
Off mode : less than 0.5W

MECHANICAL SPEC

Dimension (mm) : Set - 721.2 x 415.6 x 29.9 / Package - 796 X 484 X 132
Weight (kg) : Set - 5.6 / Package - 7
VESA Mount : 200x200
Protection Glass : N/A
Stand Type : Foot Stand (Optional)
Bezel Width (Top/Side/Bot) (mm) : 8.9(Even)

Specifications

OPERATATION

Operating Temperatur : 0°C~ 40°C
Humidity : 10~80%
Key : Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0

FEATURE

Special
H/W - Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), IP5x, Center IR
S/W - Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Ro-tation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player

Internal Player (EmbeddedH/W)
Processor : Cortex-A12 1.3GHz Quad Core CPU
On-Chip Cache Memory : L1 (I/D) : 32KB / 32KB / L2 (Unified) : 1MB
Clock Speed 1.3GHz CPU Quad
Main Memory Interface : 2.5GB/ 3 channel 96bit DDR3-933 (1866MHz)
Graphics : 2D & 3D Graphics Engine : Up to 3840x2160p. 32bpp / Supports OpenGL ES
Storage (FDM) : 8GB (3.75GB Occupied by O/S, 4.25GB Available)
Multimedia : Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC / VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) : AC3 (DD), MPEG, DTS and etc.
IO Ports : USB 2.0
Operating System : Tizen 2.4 (VDLinux)

CERTIFICATION

Safety : CB (Europe) : IEC60950-1/EN60950-1 , CCC (China) : GB4943.1-2011 / PSB (Singapore ) :PB+IEC60950-1 /NOM (Mexico ) : NOM-001-SCFI-1993 , IRAM (Argentina ) : IRAM+IEC60950-1 ,SASO (Saudi Arabia ) : SASO+IEC60950-1 , BIS(India) : IEC60950-1 / IS13252 ,NOM (Mexico) : Tuner : NOM-001-SCFI-1993 /Tunerless : NOM-019-SCFI-1998 , KC(Korea) :K60950-1 ,EAC(Russia) :EAC+IEC60950-1 ,INMETRO(Brazil) :INMETRO+IEC60950-1 ,BSMI(Taiwan) : BSMI+IEC60950-1 , RCM(Australia) : IEC60950-1/AS/NZS 60950-1 ,UL(USA) : cUL60950-1 , CSA (Canada) : cUL , TUV (Germany) : CE , NEMKO (Norway) : CE ,
EMC : FCC (USA) Part 15, Subpart B Class A , CE (Europe) : EN55022:2006+A1:2007 /EN55024:1998+A1:2001+A2:2003 ,VCCI (Japan) : VCCI V-3 /2010.04 Class A , KCC/EK (Korea) : Tuner: KN13 / KN20 /Tunerless : KN22 / KN24 ,BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / /CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) ,C-Tick (Australia) : AS/NZS CISPR22:2009 , CCC(China) :GB9254-2008 /GB17625.1-2012 ,GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 /EN55022:2006+A1:2007 /EN55024:1998+A1:2001+A2:2003
Environment : N/A

ACCESSORIES

IncludedRS232C(IN) : Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, adapter, Cover Jack
OPTIONAL
Stand : STN-L3240E
Mount : WMN4070SD
Specialty : CML400XJ
Media Player : SBB(Not attachble)
