Key Features :
-Automatic Voltage Regulation (AVR)
- Auto-Restart/Auto-charge
- Generator Compatible
- Cold Start Function
- Off-mode Charging
-LCD Panel
-USB
Specification

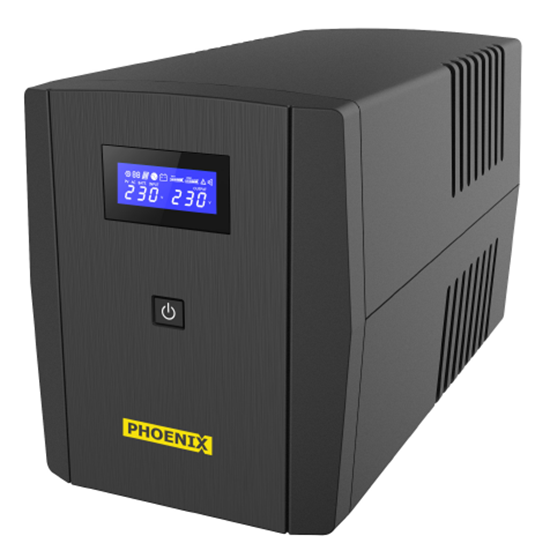

Model :2200VA/1320W
Input
Voltage : 220-240V
Voltage Range : 160-290Vac
Frequency : 50/60Hz (Auto-sensing)
Output
Voltage (Battery) : 220-240V
Frequency (Battery) : 50/60Hz±1%
Waveform (Battery) : Simulated Sine Wave
Transfer Time : 4ms Typical
Outlet Type : 8 NEMA 5-15R
Protection : Overload, Short Circuit, Over Discharge and Over Charge
Battery
Typical Back-up Time : 5-20 minutes
Sealed Lead-acid Battery : 12V 9AH * 2
Typical Recharge Time : 8 hours max (recharge time to 90% of capability)
Indicators
Display : LCD Panel
Alarm : Battery Mode, Low Battery, Overload, Fault, etc.
Interface : USB/RJ-11/RJ-45 & Breaker
Management
Auto Recharge : Yes
Auto Restart : Yes
Power Management Software : Yes
Physical
Dimensions (WxHxD) (mm) : 148 x 178 x 298
Netweight (kg) : 10.8
Environment
Temperature and Humidity : 0° to +40°C, 0 to 90% Relative Humidity (Non-condensing)
Noise Level : Less than 40dB
Dimension: UNIT: (WxHxD) (mm) :148 x 178 x 298
Weight: UNIT: 10.8kgs
