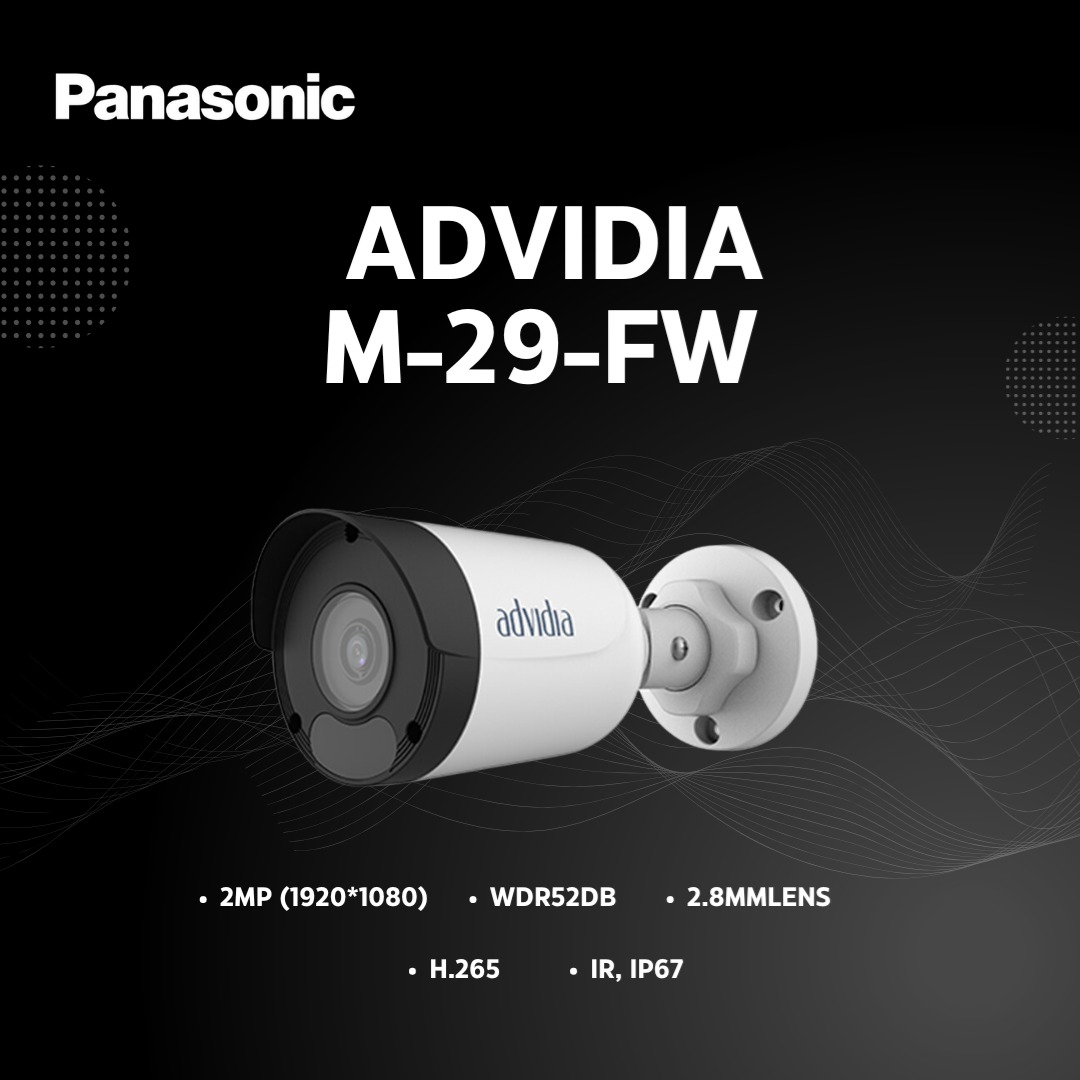

DISCLAIMER: For order basis with 30-45 days lead time.
Only available in APAC
2MP (1920*1080)
WDR52dB
2.8mmLens
H.265
IR, IP67
Specification:
mage Sensor 1 / 2.8" Progressive Scan CMOS
Min Illumination Color: 0.01Lux (F2.0, AGC ON) | 0Lux with IR
Shutter Time Auto/Manual, 1 ~ 1/100000s
Lens 2.8mm@F2.0
WDR 52 dB
Angle of View H: 106.7°, V: 57.1°
Angle Adjustment Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360°
3-Axis Adjustment Yes
Day & Night IR-Cut Filter with Auto Switch (ICR)
IR Range Up to 30m (98ft) IR range
Video Compression H.265, H.264
Video Bit Rate 128 Kbps ~ 6 Mbps
Two Stream Yes
Analytics Motion Detection
Max. Image Resolution 1920 x 1080
Frame Rate 30fps (1920 x 1080)
ROI Codec Up to 8 areas
Image Setting White Balance, Digital Noise Reduction, Smart IR, Flip, HLC, BLC
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
Communication Interface 10M/100M Base-TX Ethernet
afety CE, IEC62368-1
EMC FCC Part 15, EN 55032:2015+A11:2020, EN 55035: 2017+A11:2020
Operating Conditions Temperature: -30°C~60°C(-22°F~140°F),
Humidity:≤95%RH(Non-Condensing)
Power Consumption Max 5.5 W
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Weather Proof Rating IP67
Dimensions 167 × 63 ×62mm (6.6” × 2.5” × 2.4”)
Net Weight 0.27kg (0.60lb)
Software No license required for use with Video Insight Software
