Product Model |

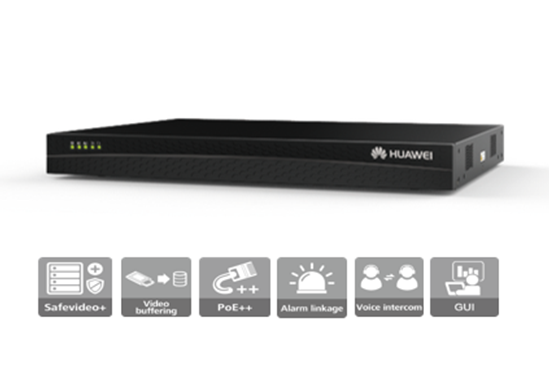

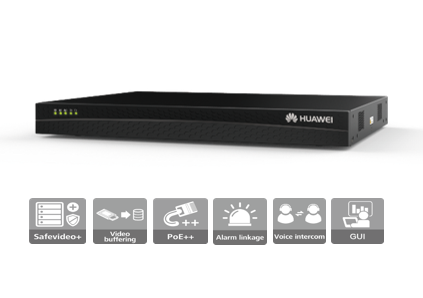

VCN510-8P |
|
Device performance |
|
|
Maximum video access channels |
8 channels |
|
Video input bandwidth |
128 Mbit/s |
|
Video forwarding |
32 channels |
|
Video playback&download |
8 channels |
|
Video output bandwidth |
256 Mbit/s |
|
Video decoding |
|
|
Video format |
H.264, H265, MJEPG |
|
Decoding performance |
1-channel 3840 x 2160 (4K) or 8-channel 1080p or 16-channel 720p or a lower resolution |
|
Preview modes |
1/4/8/9/16 panes |
|
Platform performance |
|
|
Stacking function |
2 to 16 VCN510-8Ps can be deployed in stacking modes |
|
Client |
Single-node system and stacked scenarios: 32 concurrent login users |
|
Single-node system: The LDU supports only one user at a time. |
|
Storage capacity |
|
|
Disk quantity |
2 |
|
Disk interface |
SATA3.0 |
|
Disk type |
Enterprise-level hard disk: 4 TB or 6 TB or 8 TB |
|
RAID level |
non-RAID mode, RAID 1 |
|
Recording management |
|
|
Recording mode |
Support for manual recording, scheduled recording, and alarm-triggered recording |
|
Recording protection |
Supports SafeVideo+ to protect data by channels or time |
|
Query mode |
Query by time or events |
|
Download mode |
Batch download, download by time segment |
|
Security |
|
Watermark |
Allows users to add digital watermarks on PU recordings and generates alarms when the watermarks are tampered with. |
|
Reliability |
|
|
Dual-system |
Supported |
|
Media transmission |
Supports self-adaptive bandwidth, FEC, SEC, and multicast |
|
Data safe |
Backs up key data and automatically restore service data. |
|
Compatibility |
|
|
Device access |
Supports access of devices that comply with the Huawei SDK, GB/T 28181, ONVIF 2.4, or ONVIF Profile S protocol, DHSDK. |
|
Management and maintenance |
|
Management mode |
Supports B/S, C/S management modes. |
|
Log download |
Allows users to download operation and run logs. |
|
External interface |
|
|
Protocol |
TCP,UDP,IPv4, HTTPS,RTP,RTSP,RTCP,SIP,ARP,SSL, NTP HTTP |
|
HDMI |
1 x HDMI 2.0 |
|
VGA |
1 x VGA |
|
Network ports |
1 x 10/100/1000 Mbit/s Ethernet port, 8 x 10/100 Mbit/s Ethernet ports, PoE supported |
|
USB |
1 x USB3.0 and 1 x USB2.0 |
|
Audio input |
1 x BNC |
|
Audio output |
1 x BNC |
|
Alarm input |
2 channels |
|
Alarm output |
1 channel |
|
Others |
|
|
Support Protocol |
TCP,UDP,IPv4, HTTPS,RTP,RTSP,RTCP,SIP,ARP,SSL,NTP RTSP NTP HTTP |
|
Operating temperature |
0°C to 45°C |
|
Operating humidity |
5% to 95% (without condensation) |
|
Power consumption (including disks) |
<60 W |
|
Power supply |
100 V AC to 240 V AC (50/60 Hz) |
|
Dimensions (H x W x D) |
Dimensions (excluding mounting ears): 43.6 mm x 442.0 mm × 310.0 mm |
|
Dimensions (with mounting ears): 43.6 mm × 482.6 mm × 310.0 mm |
|
Cabinet |
Standard 19-inch 1 U cabinet |
|
Weight(including disks) |
≤4.7 kg (including 2 disks) |
|
Certification |
|
|
China |
Type inspection report issued by the Ministry of Public Security and T28181 |
