The most secure, empowering HP DesignJet printer for CAD/GIS workgroups / SECURE—Protect your work and your information
· Protect printers/data from unauthorized access with HP Secure Boot, whitelisting, encrypted hard disk, more
· Protect documents, preserve confidentiality with authentication solutions like PIN printing, card readers1
· Secure your printers with HP JetAdvantage Security Manager; manage your fleet remotely with HP Web Jetadmin
· Control and optimize printing costs with accounting solutions—or with your reseller through HP Partner Link
EFFICIENT—No more PC freezing up
· Adobe PDF drivers2 free up your computer immediately after sending to print—even for the most complex files
· No interruptions—dual-roll options reduce roll changes; two rolls double capacity, help switch paper types3
· Handle complex files—powerful processing architecture4, 128 GB memory5, 500 GB HDD at 116 A1/D pgs/hr.
· Easily print project sets and PDF
documents with HP Click printing software
ACCURATE—Make better decisions with precise colors
· Get bright color and bold image quality— even on plain papers—with HP Bright Office Inks
· Reproduce transparencies, layers, color palettes, and gradients with embedded Adobe PDF Print Engine2
· Tuned profiles reproduce distinct shades of color; color/gray/photo black inks make soft colors, dark tones
· Accurately display data—high-density printheads provide 2400 nozzles per inch, enabling 0.1% line accuracy6
specifications
Print
Line drawings7 : 26 sec/page on A1/D, 116 A1/D prints per hour
Print resolution : Up to 2400 x 1200 optimized dpi
Margins (top x bottom x left x right) Roll: 3 x 3 x 3 x 3 mm (0.1 x 0.1 x 0.1 x 0.1 in) Sheet: 3 x 17 x 3 x 3 mm (0.1 x 0.67 x 0.1 x 0.1 in
Technology : HP Thermal Inkjet
Ink types : Dye-based (C, G, M, pK, Y); pigment-based (mK)
Ink drop : 6 pl
Printheads : 3 universal printheads, 2 colors each: mK-Y / C-M / G-pK
Printhead nozzles : 2112 each color
Line accuracy : ± 0.1%
Minimum line width : 0.02 mm (0.0008 in) (PDF addressable @ 1200 dpi)
Media
Handling : Sheet feed, roll feed, automatic cutter
Size : Rolls: 279 to 1118 mm (11 to 44 in)
Sheets: 210 x 279 to 1118 x 1676 mm (8.3 x 11 to 44 x 66 in)
Standard sheets - A4, A3, A2, A1, A0 (A, B, C, D, E)
Thickness : Up to 0.8 mm (31.5 mil )
Applications : Line drawings, Renderings, Presentations, Maps, Orthophotos
Memory : 128 GB virtual9 500 GB Self Encrypted hard disk (AES-256 Encrypted
Connectivity
Interfaces : Ethernet, Fast Ethernet, Gigabit Ethernet,
10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
Print languages : Basic Printer: HP-GL/2, TIFF, JPEG, URF, CALS G4 PostScript Printer : Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4
Printing paths : HP driver for Windows and MAC OS X, direct printing from USB flash drive, email printing, HP Smart
app, HP Click printing software, HP Print Service for Android, Apple
AirPrint driver
Drivers (included) : Basic Printer: Raster drivers for Windows and
macOS PostScript Printer - Raster drivers for Windows and macOS;
PostScript and PDF Windows drivers and macOS PostScript driver
Security features : HP Secure Boot, Whitelisting10, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, self-encrypting HDD, PIN printing
Dimensions (w x d x h)
Printer : 1802 x 695 x 998 mm (70.9 x 27.4 x 39.3 in)
Shipping : 1955 x 770 x 710 mm (77 x 30.3 x 28 in)
Weight
Printer : Single-roll printer: 72 kg (159 lb) / Double-roll printer: 74 kg (163 lb)
Shipping : Single-roll printer: 126 kg (278 lb) / Double-roll printer: 128 kg (282 lb)

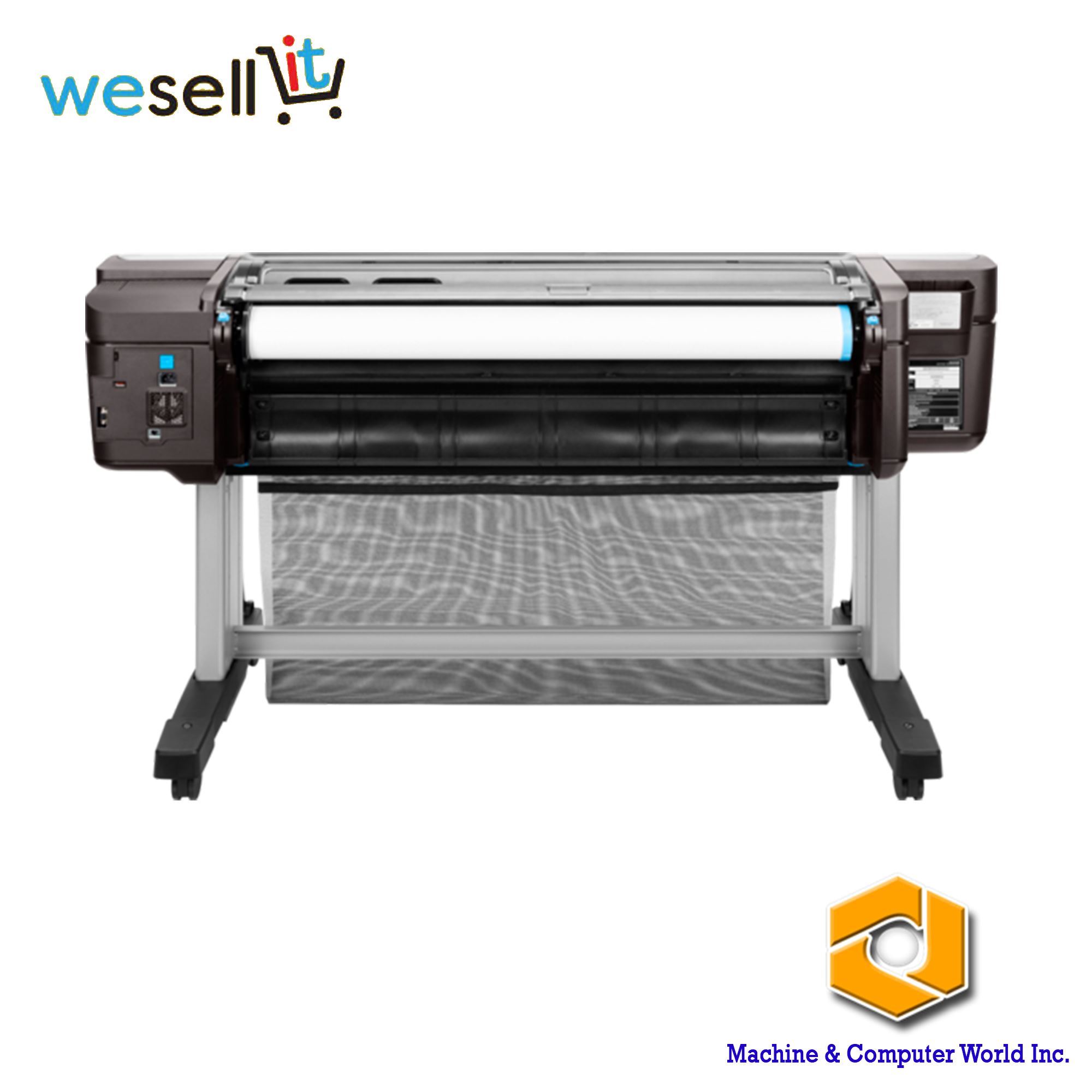

What’s in the box : HP DesignJet T1700 Printer, printheads, Introductory ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits
Compatible software and solutions : HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS
Environmental ranges : Operating temperature: 5 to 40°C (41 to 104°F) / Storage temperature: -25 to 55°C (-13 to 131°F) /
Operating humidity: 20 to 80% RH Acoustic : Sound pressure: 45 dB(A) (printing); 32 dB(A) (ready); < 15 dB(A) (sleep) / Sound power: 6.1 B(A) (printing); 5.0 B(A) (ready); < 3.1 B(A) (sleep)
Power consumption : < 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off) Input voltage (auto ranging) 100-240 V (± 10%), 50/60 Hz (± 3 Hz), 2 A max
Certification
Safety : USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS)
Electromagnetic : Compliant with Class B requirements, including: USA (FCC rules),Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Environmental : ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver
