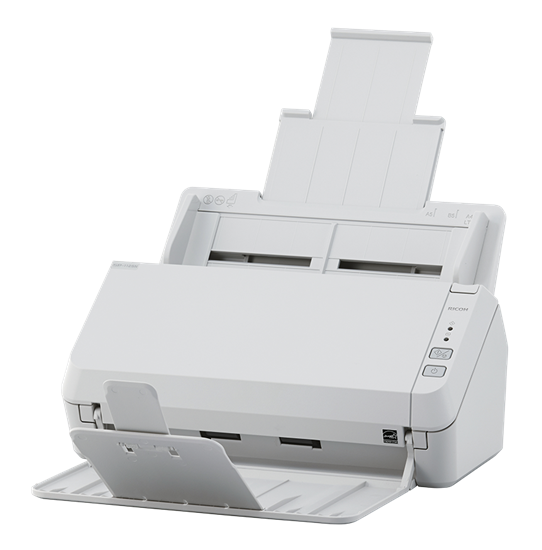

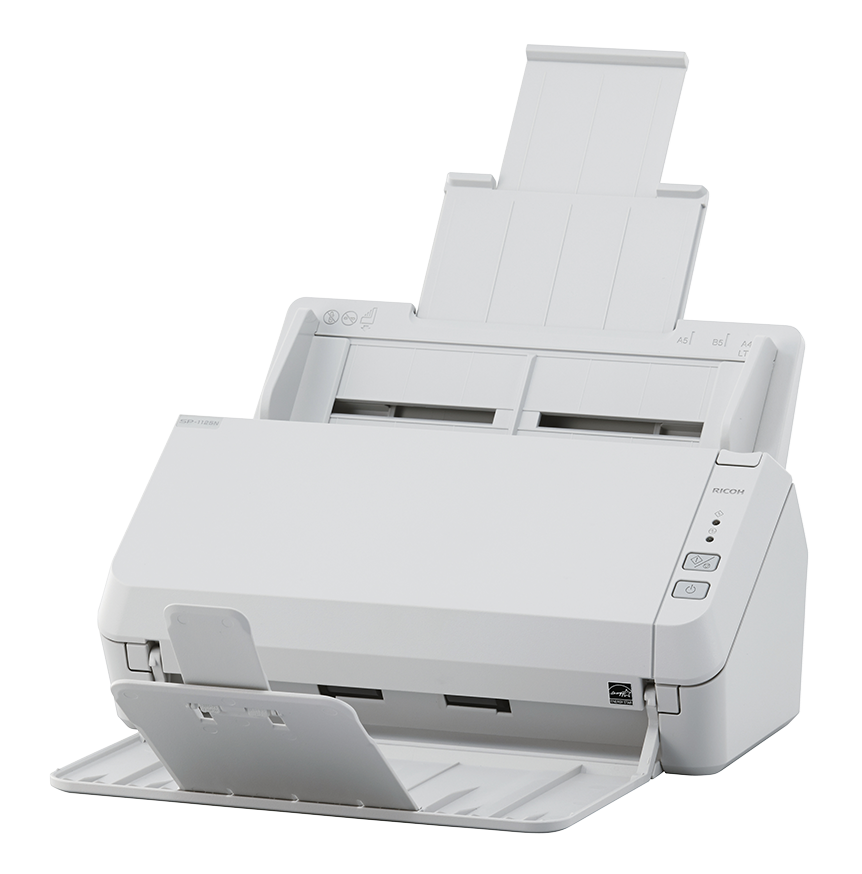

The SP-1125N provides high-value performance as an entry-level model for your business with scanning speeds of 25 ppm/50 ipm (A4 portrait, color, 200 / 300 dpi), ADF capacity of 50 sheets, ability to scan a wide range of documents.
Supports both USB 3.2 Gen 1x1 high-speed connection and wired network connection
Compact and user-friendly design
High quality technologies for accurate and reliable feeding
Plastic card scanning
Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
Various software available for better data management
PaperStream ClickScan also available for ad-hoc use to scan in 3 simple steps
Specifications:
Scanner Type ADF (Automatic Document Feeder), Duplex
Scanning Speed*1 (A4 Portrait)
(Color*2/Grayscale*2/Monochrome*3) Simplex: 25 ppm (200/300 dpi)
Duplex: 50 ipm (200/300 dpi)
Image Sensor Type Single line CMOS-CIS x 2 (front x 1, back x 1)
Light Source RGB LED x 2 (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution*4
(Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White
Document Size Maximum 216 x 355.6 mm (8.5 x 14 in.)
Minimum 52 x 74 mm (2.0 x 2.9 in.)
Long Page Scanning*6 3,048 mm (120 in.)
Paper Weight (Thickness) Paper 50 to 209 g/m2 (13.4 to 56 lb)*7
Plastic Card 0.76 mm (0.0299 in.) or less*8
ADF Capacity*9*10 50 sheets (A4 80 g/m2 or Letter 20 lb)
Expected Daily Volume*11 4,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor)
Interface USB*12*13 USB 3.2 Gen 1x1 / USB 2.0 / USB 1.1
Ethernet 10BASE-T,100BASE-TX,1000BASE-T
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode 18 W or less
Power Saving Mode 2 W or less
Auto Standby (Off) Mode 0.3 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (non-condensing)
Environmental Compliance ENERGY STAR, RoHS
Dimensions*14 (W x D x H) 298 x 135 x 133 mm (11.7 x 5.3 x 5.2 in.)
Weight 2.5 kg (5.5 lb)
Supported Operating System Windows 11*15, Windows 10*15, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS*16, Linux (Ubuntu)*16
Software / Drivers PaperStream IP for SP Series (TWAIN/TWAIN x64/ISIS™), WIA Driver*17, Image Scanner Driver for macOS (ICA)*17*18, Image Scanner Driver for Linux (SANE)*17*18, PaperStream Capture, PaperStream ClickScan*18, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap*18, Scanner Central Admin Server, ABBYY™ FineReader Sprint™*19, Network Setup Tool for SP Series, SP Series Online Update
Image Processing Functions Multi image output, Automatic color detection, Automatic page size detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Split image, De-Skew, Edge filler, Vertical streaks reduction, Digital endorser, Background pattern removal, Character thickness, Character augmentation, Character extraction
Included Items AC adapter, USB cable, Setup DVD-ROM
