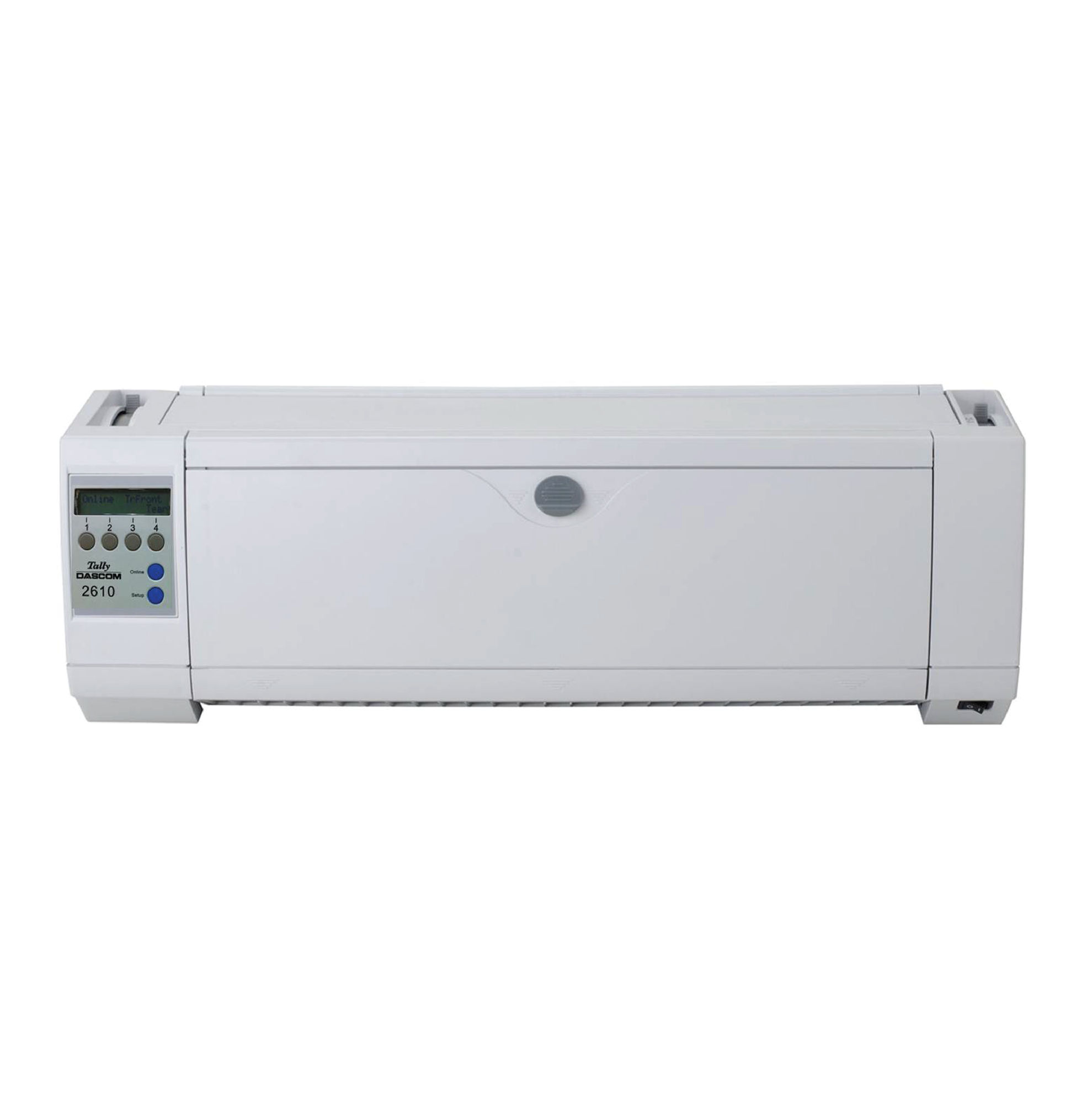

DASCOM TD2610 PRINTER -The Tally Dascom 2610 is a highly featured, reliable and
stylish machine. Performance and workload, ergonomics,
maintainability, excellent price – everything has been
incorporated to ensure it is the only acceptable choice for
the customer.
Continuous and cut forms are fed at the front for quick and
easy loading. This ensures a straight path for the forms
resulting in reliable paper transportation, even on 6-part
stock. Loading paper is easier. The operator does not have
to fumble over or around the printer to gain access to rear
located tractors.
User intervention is kept to a minimum with a suite of
features designed to ensure the products run at optimum
reliability and performance.
The product is at home in the computer room, data processing
room, or in the office. An unobtrusive 55 dBA acoustic
rating results in a printer, which is half as quiet, compared
with many competitive models.
Specification:
Print Speed: 680 cps (Fastest Mode); 500 cps (HS Draft), 333 cps (Draft), 111 cps (LQ) at 10 cpi
Resolution: up to 360 x 360 dpi
Character Density: 10, 12, 15, 17.1, 20 cpi
Line Density: 2, 3, 4, 6, 8, 12 lpi
Printhead Life: 500 mil dots/pin, 24 pin head
Memory 256 KBytes
Standard Connectivity: Parallel (Bi-directional), USB 2.0 and Ethernet (10/100 BaseT)
Optional Connectivity: Serial RS-232
Standard Emulation: IBM ProPrinter XL24, Epson ESC/P2, MTPL + Barcode + LCP
Fonts: HS Draft, Draft, Courier, Roman, Sans Serif, Prestige, Script, OCR-A/B, 14 Barcodes
and large character printing
Consumable: Ribbon:12 million characters
Standard Paper Handling: One tractor useable as push (front or rear) or pull (top) version, continuous paper with straight paper path and park position, cut sheet front insertion, rear or front off
Optional Paper Handling: Additional push tractor (rear)
Number of Copies: 1 original + 5 copies
Paper Type: Cut sheets, continuous forms, multi-part forms
Paper Weight: 60-120 g/m²
Paper Size Width: 76 to 420 mm; Length: 76 to 599 mm
Physical Weight: 10.6 kg
Physical Size: 600 x 265 x 200 mm (W x D x H)
Acoustic: 55 dB(A)
Power Voltage: 100 - 240 V wide range auto-sensing
Power Consumption: 30 Watt Printing; <10 W Sleep Mode
Temperature: +10° to +40° C; 10% to 85% humidity
Workload: 20,000 pages per month
MTBF: 20,000 hours
Drivers: Windows 2000/XP/Vista/7/8 and Server 2003/2008/2012; SAP
Classification: HARDWARE
Class: TA01-28.809.28
Dimension: 600 x 265 x 200 mm
Weight: 10.6KG
