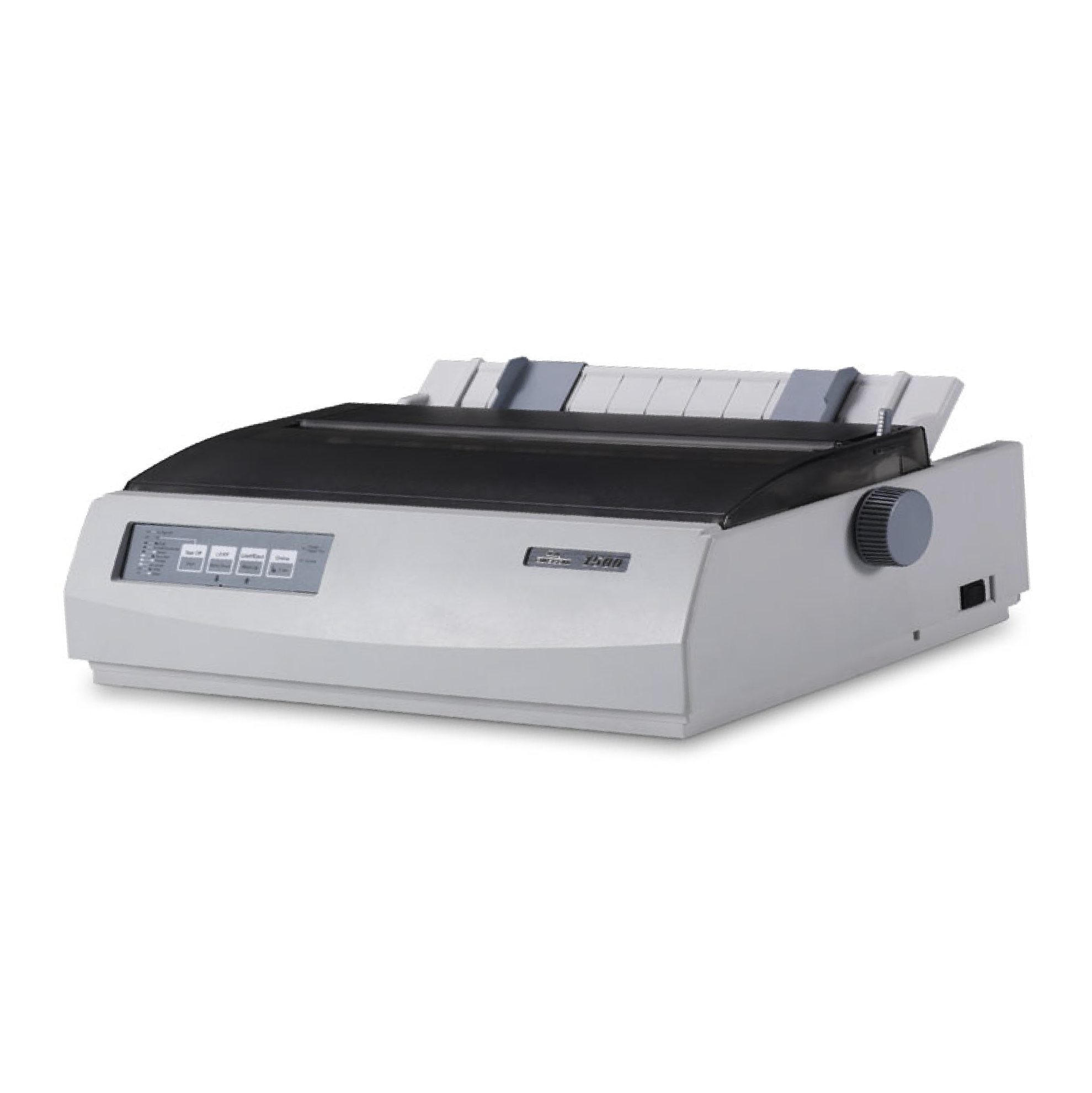

The mid range serial matrix printer Tally Dascom 1500 is
designed for applications where fast throughput and flexible
paper management are vital.
Forms are easy to load as the paper is loaded either at the
bottom or the rear of the printer. For precise paper control
and to enable feeding of continuous forms, the push tractor
can also be used as a pull tractor.
With auto switching USB, parallel interfaces as standard
and an optional Ethernet, this new dot matrix printer offers
a cost effective solution.
With high print speeds of up to 500 characters per second
and the ability to handle different types of print media,
including labels, invoices, reports and multi part forms, they
are well suited for back office applications, including retail,
local government, healthcare, warehousing and distribution
Specification:
Print Speed 500 cps (Fastest Mode); 440 cps (HS Draft), 400 cps (Draft), 133 cps (LQ) at 10 cpi
Printhead 24 wires
Resolution up to 360 x 360 dpi
Throughput (ECMA 132) 395 pages per hour
Character Density 10, 12, 15, 17.1, 20 cpi
Line Density 1, 2, 3, 4, 6, 8, 12 lpi
Printhead Life 400 million characters
Memory 256 kB
Standard Connectivity Parallel (Bi-directional) and USB 2.0
Parallel (Bi-directional), Serial (RS-232) and USB 2.0
Standard Emulation IBM ProPrinter XL24E, Epson ESC P/2
Fonts Draft, Roman, Sans Serif, Prestige, Script, Orator, Gothic,
Souvenir, OCR-A/B
Consumables Ribbon: 7 million characters
Standard Paper Handling Push tractor (rear) or pull tractor (top) and cut sheet insertion
Number of Copies 1 original + 4 copies
Paper Type Cut sheets, continuous forms, multi-part forms
Paper Weight 60-120 g/m²
Paper Size Width: 67 to 254 mm
Physical Weight 6.5 kg
Physical Size 398 x 330 x 135 mm (W x D x H)
Acoustic 55 dB(A) in LQ (ISO 7779)
Power Voltage 230 V - 50/60 Hz
Power Consumption 51 Watt Printing; <7 W Sleep Mode
Temperature +10° to +40° C; 20% to 85% humidity
Workload 20,000 pages per month
MTBF 20,000 hours
Drivers Windows 2000/XP/Vista/7/8 and Server 2003/2008
Classification: Hardware
Class: TA03-042159
Dimension: 398 x 330 x 135 mm
Weight: 6.5KG
