Highlights at a glance
Advanced 24-pin, flatbed printer
Up to 450 CPS speed
Ideal for front and back office application
Up to 7-ply copy capability
9 mil characters long life ribbon
8.2 inches print width, supports A3 portrait
Intelligent print position tracking sensor
Wide range of optional interfaces
Large 256 KB buffer size

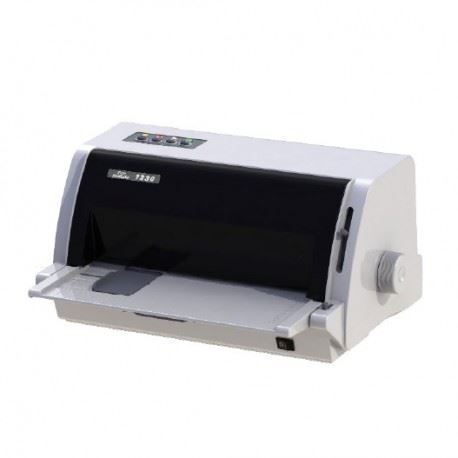

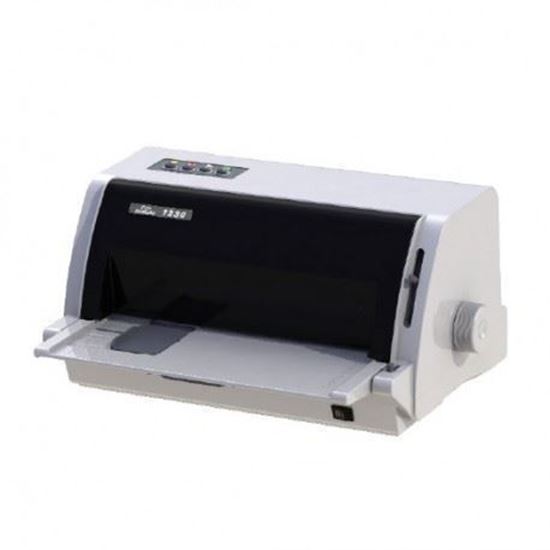

Tally Dascom‘s 1330 f atbed serial dot matrix printer, is a 24-pin, 82-column printer with USB interface as standard. The 1330 is ideal for front office applications in retail outlets, travel agents, train stations, banks and doctor’s surgeries where space is limited.
The 1330 is equipped with a linear encoder sensor to position the print head with high accuracy and intellectually detect and correct any misplaced carriage, which ensures good printing quality and significantly reduces the chances of errors in printing.
With high quality output, an easy to use control panel and the option to use pre-cut or tractor fed paper, the 1330 is ideal for counter-top printing applications such as cheques, tickets, receipts, forms and multi-part documents.
Using the long life ribbon option, the 1330 requires fewer ribbon changes, less downtime and lower running costs. With print speeds of up to 450 characters per second (cps) and f exible media handling, it keeps transactions smooth and the user happy.
The 1330 is a reliable and easy to use printer, with low running costs and a small footprint.
Features
Print Speed : 450 cps (Fastest Mode); 300 cps (Draft, 10 CPI), 200 cps (NLQ, 10CPI), 100 cps (LQ, 10 CPI)
Print Method : 24-pin impact dot matrix
Resolution : Up to 360 x 360 dpi
Character Pitch : 10, 12, 15, 16.6, 17.1, 20, 24 cpi, Proportional Spacing
Line Spacing : 1/6 inch, programmable in 1/360 inch increments
Printhead life : 400 Million Strokes per pin
Memory Buffer : Up to 256 KB
Standard Connectivity : USB 2.0;Optional: Parallel/ Seria/ Ethernet/WIFI/Bluetooth
Standard Emulation : Epson (ESC P/2), IBM PPDS
Fonts : HS Draft, Draft, Courier, Roman, Sans Serif, Prestige, Orator, Gothic, Script, Souvenir, OCR-A/B Barcodes: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Character Sets : 58 types supported
Ribbon Life : 9 million characters
Standard Paper Handling : Friction and push tractor
Number of Copies : Up to 1 Original + 6 copies
Paper Type : Cut sheet and continuous forms
Paper Weight : 52 - 120 gsm
Paper Size : 55 - 297 mm
Physical Weigth : 4.2 kg
Physical Size : 395 x 320 x 205 mm (W x D x H)
Power Voltage & Frequency : AC 100-120 V / 200-240 V; 50-60 Hz
Power Consumption : Average: 34W, Sleep: 1.4W; Energy Star 2.0 compliant
MTBF : 12,000 hours
MVBF : 24 Mil lines
Drivers : Windows 2000/XP/Vista/7/8/8.1 and Server 2003/2008/2012R2
Utility :Tally Dascom Printer Config Tool
Temperature : 5° C to 35° C
Humidity : 10% to 95% (non-condensing)
Acoustic : < 57 dB(A) (ISO 7779
Standard Warranty : One Year
