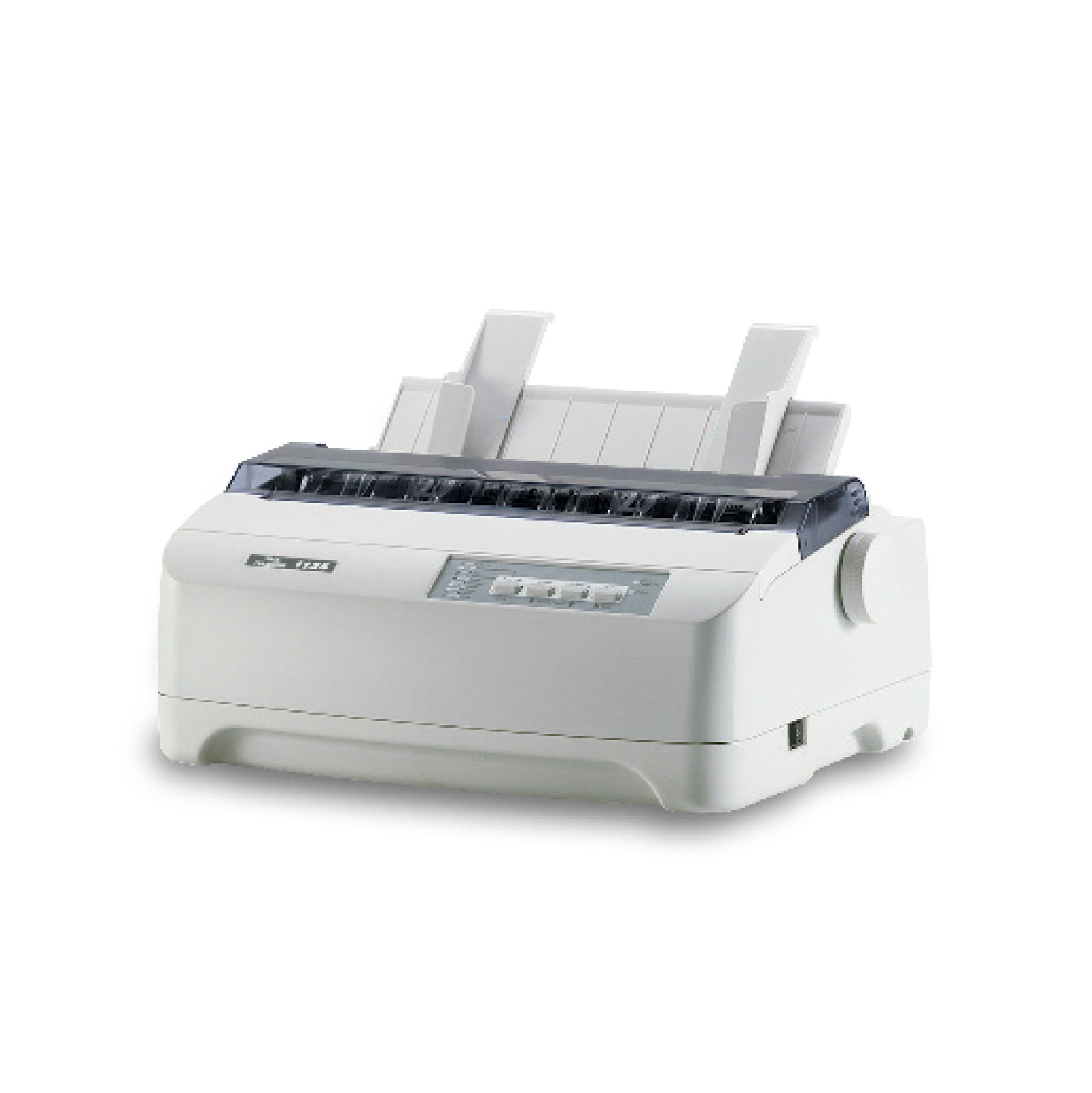

The Tally Dascom 1125, is a 24 pin, 80 column serial dot
matrix printer with USB, parallel and serial interfaces as
standard. Compact in size, the 1125 is perfect for industrial
environments and front and back office applications where
space is limited.
With low running costs, high quality output and an easy to
use control panel it‘s ideal for small business, low volume
listings and reports, as well as dispatch notes and labels.
In addition to these applications, the 1125 is also well
suited to measurement and control systems.Amongst the
lowest priced matrix printers available today the 1125 also
offers a long life ribbon giving this printer very low running
costs.
For draft printing it’s considerably less expensive running
costs make it a viable alternative to low cost inkjet printers.
Specification:
Print Speed 498cps (Fastest Mode); 375 cps (HS Draft), 250 cps (Draft), 83 cps (LQ) at 10 cpi
Resolution up to 360 x 360 dpi
Throughput (ECMA 132) 295 pages per hour
Character density 10, 12, 15, 17.1, 20 cpi
Line density 1, 2, 3, 4, 6, 8 lpi
Printhead life 400 million strokes per pin
Memory 68 KB (Standard); up to 190 KB (Optional)
Standard Connectivity USB 2.0, Parallel (Bi-directional) and Serial RS232
Standard Emulations IBM ProPrinter 2390 Plus, Epson LQ /ESC P/2)
Fonts Draft, Courier, Roman, Sans Serif, Prestige, Script, Orator, Gothic, Souvenir, OCR-A/B,
10 Barcodes
Consumables Black ribbon: 7 million characters
Standard Paper Handling Push tractor and single sheet tray
Number of Copies 1 Original + 4 copies
Paper Type Continous forms, cut sheet
Paper Weight 52 - 100 g/m²
Paper Size Width: 76 - 254 mm (Approx. 3” - 10”)
Physical Weight 5 kg
Physical Size 358 x 284 x 157 mm (W x D x H)
Noise Level (ISO 7779) 51 dB(A)
Power Voltage 120 V and 220 V models available
Power Consumption 3.8 W Stand-By
Temperature +5° to +40° C; 10% to 80% humidity (not condensing)
Print Volume 6,000 pages per month
MTBF 10,000 hours
Printer Drivers Windows 98/2000/XP/Vista/7/8 and Server 2003/2008
Classification: Hardware
Class: TA03-28.800.02
Dimension: 368 x 284 x 157 MM
Weight: 5KG
