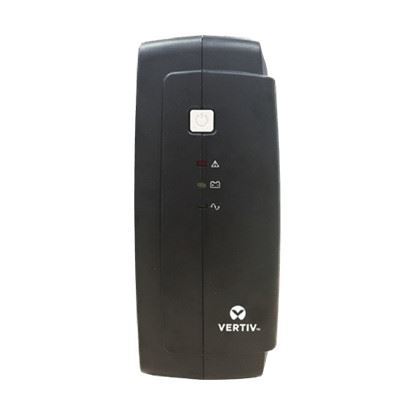

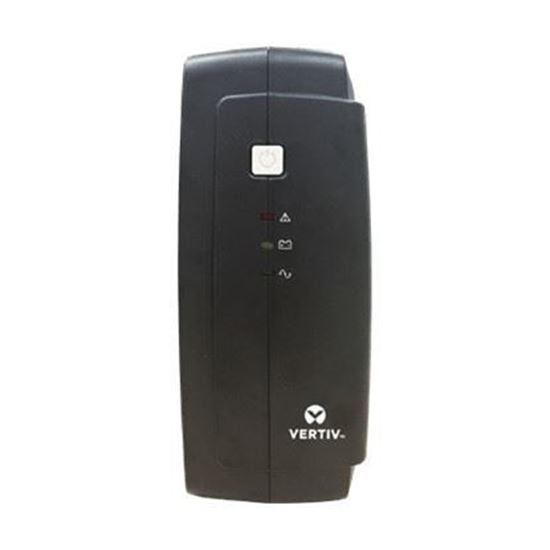

Vertiv Liebert PSA850-SOHO UPS

850VA/510W UPS with USB Port Mobile Charger, Built-in Boost and Buck AVR, Space for Large Power Plugs, and Fuse Protection
brand: Vertiv
SKU: PSA850-SOHO
P 8,480.00
P 4,840.00
  • Description

Vertiv’s high efficiency uninterruptible power supply (UPS) solution specifically designed for small office and home office SOHO with its universal sockets, mobile charger and compact design, the Liebert® PSA itON-SOHO line-interactive UPS protects vital equipment in this ever growing application.

Introducing the Liebert®
PSA itON-SOHO

Ideally Suited for:

 desktop-icon

Desktop PCs

 desktop-icon

Professional workstations

 desktop-icon

Small routers, bridges, and hubs

 desktop-icon

Point-of-sale terminals

 desktop-icon

Small office applications







Physical

Model Number:

PSA850-SOHO

Capacity (VA/W):

850VA/510W

Dimension D × W × H (mm):

85 × 272 × 201

Gross weight (kg):

5.4 kg

Net weight (kg):

4.9 kg

System Features

Indicators AC Mode:

Solid green led lighting; Battery Mode: Solid yellow led flash; Fault Solid: Red led lighting

Protection:

Discharge, Overload and overcharge protection

Alarm:

1.) Battery Mode: Sounding every 10 seconds; 2.) Low battery: Sounding every 1 second; 3.) Overload: Sounding every 0.5 second; 4.) Fault: Continuously sounding

Operating temperature:

0 ~ 40°C

Humidity range:

0 ~ 95% (non-condensing)

Noise level:

Less than 40dB (1 meter from surface)

Fuse Protection:

YES

USB Charging slot:

YES (5.0V/1.0A)

Battery

Battery type & Number :

12V/9AH × 1

Typical recharge time:

6-8 hours recover to 90% capacity (About 1A charging current at Normal Mode)

Configuration: Battery:

1×2.4kg, 9Ah

Configuration: Sockets:

3×Universal

Configuration: USB Charger:

*1

Runtime: Time (in minutes)

Load: 25%:

16m

Load: 50%:

3m

Input

Voltage range:

162 – 290VAC, single-phase

Frequency range:

50Hz/60Hz automatic identification

Output

Voltage tolerance (Batt. Mode) :

Simulated sine wave at nominal voltage ±10%

Frequency range (Batt. Mode):

50Hz/60Hz automatic identification

Transfer time :

Typical 2–6 ms, 10ms max.
