Blink500 Pro RXDi
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Operating Range: Up to 328′(100m)
Audio Output Connector MFi Certified Lightning connector
Power Requirements Supplied by iOS Devices
Other functions 3.5mm headphone jack,Mono/Stereo switch
Antenna PiFA Antenna
Weight Approx. 16.5g(0.58oz)
Dimensions 31×82×12mm
Operating Temperature 0℃ to 50℃
Storage Temperature -20℃ to 55℃
Blink500 Pro TX
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Operating Range: Up to 328′(100m)
RF Output Power: 10mW
Polar Pattern: Omnidirectional
Frequency Response: 50Hz-18KHz
Maximum SPL: Built-in Microphone:120dB SPL
Lavalier Microphone: 110dB SPL
Sensitivity: Built-in Microphone: -39dB
Lavalier Microphone: -39dB
SNR: ＞78dB
Reference audio input level: -30～42dBv MIC input,0 dB attenuation
Power Requirements: Built-in Li-ion Battery or
Micro USB DC 5V or Charging Contact
Other Functions: mute function High-contrast OLED Display
Built-in Battery Life: Approx.8 hours
Antenna: PIFA Antenna
Audio Inputs: 3.5mm TRS Lavalier Mic/
Line- in Input or Built – in Microphone
Weight: Approx. 32g(1.13oz)
Dimensions: 56.5×38×26.1mm
Operating Temperature: 0℃ to 50℃
Storage Temperature: -20℃ to +55℃

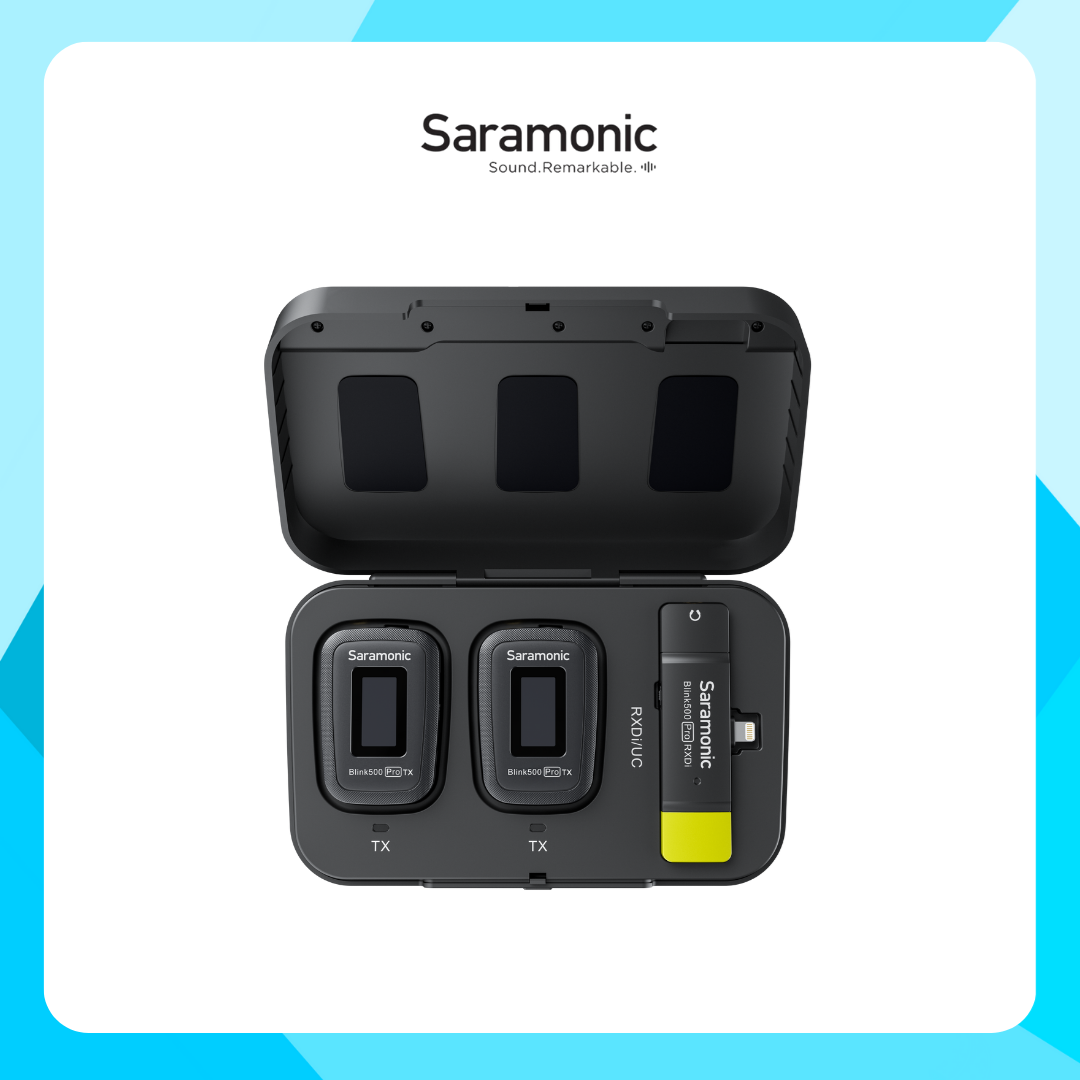

Blink500 Pro BOX Charging Case
Power Requirements Powered by USB-C port (5V/1.5A)
Power Capacity 3000mAh
Charging Time 4 hours
Weight 268g (9.45 oz)
Dimensions 165.8×102.9×39.7mm
Operating Temperature 0°C to 50°C
Storage Temperature –20°C to +55°C
