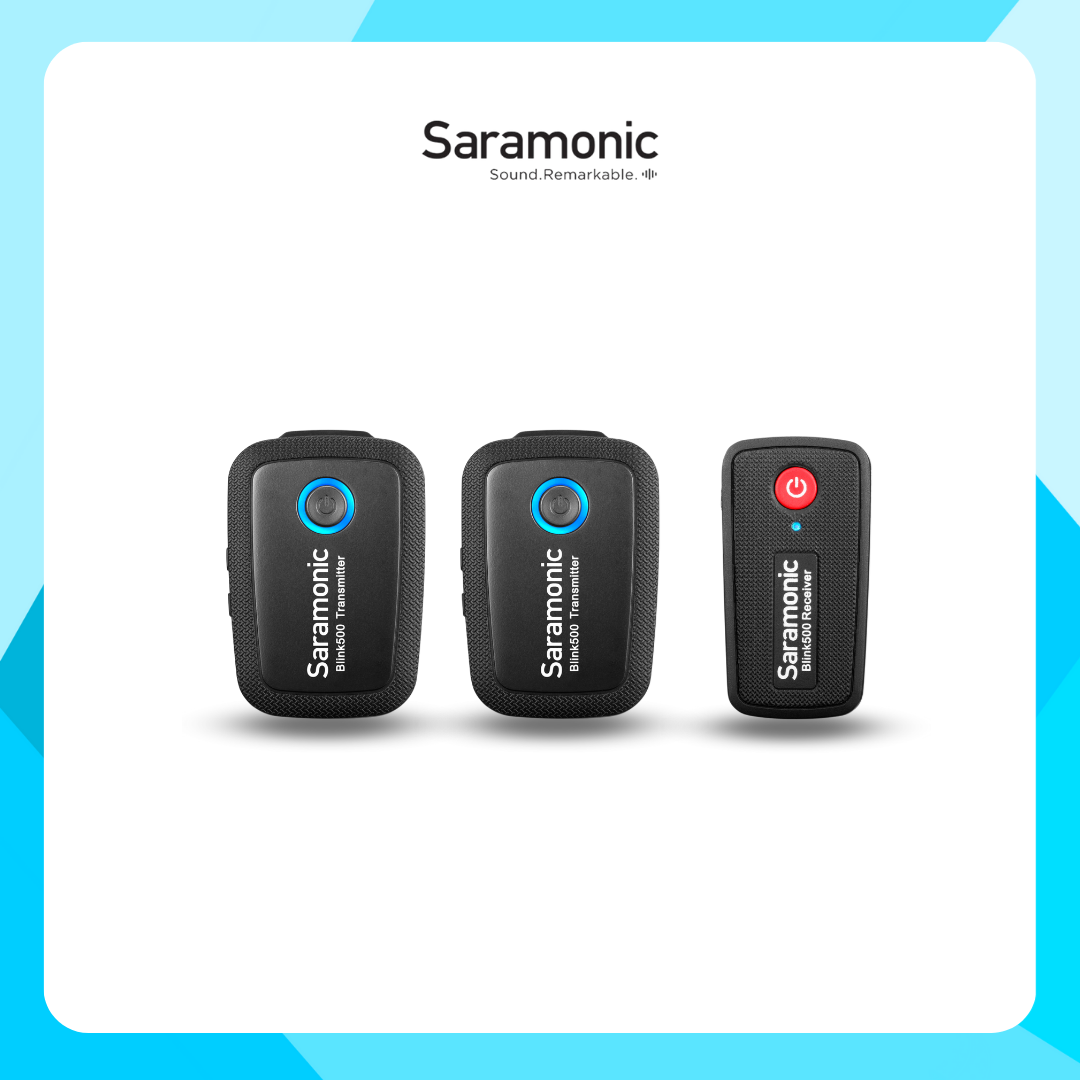

Blink500 RX
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Audio Output Connector: 3.5 mm Jack
Audio Output level: –60 dBV
Power Requirements: Built-in Li-ion Battery or USB-C DC 5V
Built-In Battery Life: Approx. 6 hours
Antenna: PIFA Antenna
Weight: Approx. 26.5g (0.93oz)
Dimensions: 62×33×15.5mm
Operating Temperature: 0°C to 50°C
Storage Temperature: –20°C to +55°C
Blink500 TX
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Operating Range: Up to 164′ (50m)
RF Output Power: 10mW
Polar Pattern: Omnidirectional
Frequency Response: 50Hz-18KHz
Maximum SPL: Built-in Microphone:120dB SPL
Lavalier Microphone: 110dB SPL
Sensitivity: Built-in Microphone: -42dB
Lavalier Microphone: -30dB
SNR: ＞78dB
Power Requirements: Built-in Li-ion Battery or USB-C DC 5V
Built-in Battery Life: Approx. 6 hours
Antenna: PIFA Antenna
Audio Inputs: 3.5mm TRS Lavalier Microphone Input
or Built-in Microphone
Weight: Approx. 34g (1.2oz)
Dimensions: 63×43×16.5mm
Operating Temperature: 0°C to 50°C
Storage Temperature: –20°C to +55°C
