SPECIFICATIONS

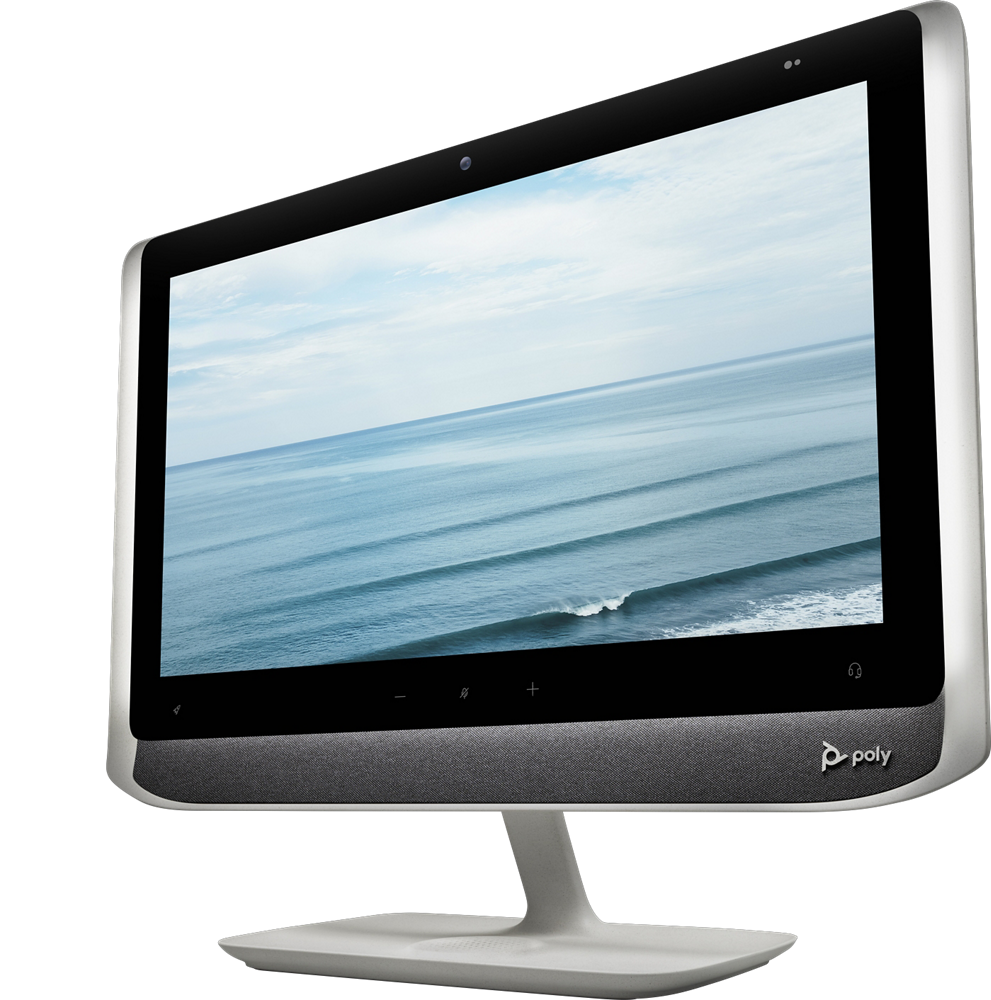

POLY STUDIO P21
DISPLAY
• 21.5 inch LCD Monitor
(476.1 mm x 267.7mm)
• Fixed 1080p FHD resolution
(1920 x 1080), 16:9
• Contrast Ratio: 1000:1 (Typical)
• Viewing Angle: 89 degrees (Typical)
• Brightness: 250 cd/m2 (Typical)
• Color Depth: 16.7M Colors
• Pixel Pitch: 0.24795mm x 0.24795mm
• RoHS/Halogen Free
AMBIENT LIGHTING:
• CRI 80/CCT – 3000K
• Ambient Light Sensor
• Capacitive touch control for
vanity lighting
CAMERA
• 1080p (Full HD), 720P (HD) Compatible
• Max 80° DFOV
• Electronic Zoom up to 4x / EPTZ
• Low light quality & true color images
• Manual pan, tilt and zoom control through
Poly Lens Desktop Application
AUDIO
• Microphone:
- Single uni-directional MEMS microphone
for focused pickup with noise and
reverberance rejection
- -26dB sensitivity, 65dB FS SNR
- 50 Hz to 20 kHz frequency response
• Speakers:
- Dual stereo speakers
- 80 Hz to 20 kHz frequency response
- 10W per Channel
INTERFACES
• 1x USB 3.0 Type-C port (Studio P21
requires USB 3.0 connection on computer)
• 2x USB 3.0 Type-A ports
• Power connector
• Kensington security lock
• 3.5mm, 4-pole North America;
AHJ; CTIA
POWER REQUIREMENTS
• External DC power supply:
120/240V, 80W
• Typical operation voltage/power:
- 20W (no vanity lighting and no
wireless charging)
- 35W (normal; no wireless charging)
- 50 W (maximum; full volume, max
brightness, wireless charging)
- Sleep Mode ≤ 0.8 W
- Off mode ≤ N/A
- Typical operating BTU/h: ≈ > 170.6
SYSTEM REQUIREMENTS
• Native support for Windows 8.1, 10
• Native support for MacOS 10.15 or higher
DEVICE DRIVER SUPPORT
• USB 2.0/3.0/3.1
• UVC/UAC Plug and Play Compatible
• DisplayLink USB Graphics driver required,
available at poly.com/P21
COMPATIBILITY
• Zoom certified
• Microsoft Teams compatible
• Compatible with any application that
supports standard USB/UVC standards
MANAGEABILITY
• Cloud: Poly Lens service
• Local (Windows/Mac):
Poly Lens Desktop App
OTHER FEATURES
• Integrated privacy shutter
• Wireless mobile phone charging
• Volume Up/Down and mute controls, plus
programmable button
• Microsoft Teams/Zoom app button
• USB-A ports built-in for wireless headset
adapter or other peripherals as USB hub,
5W charging capability
• Active call and mute status LED, with
integration to select app partners |
