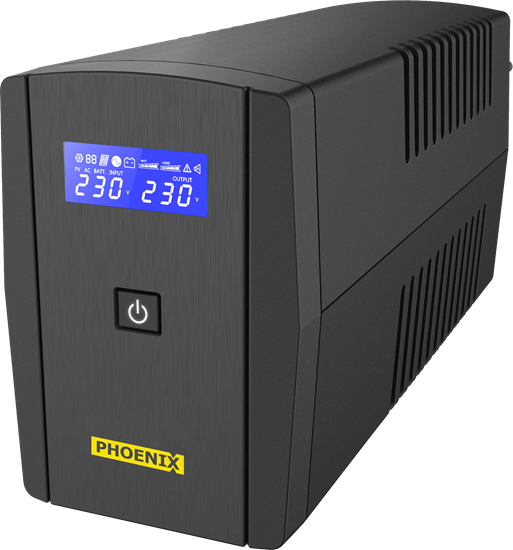

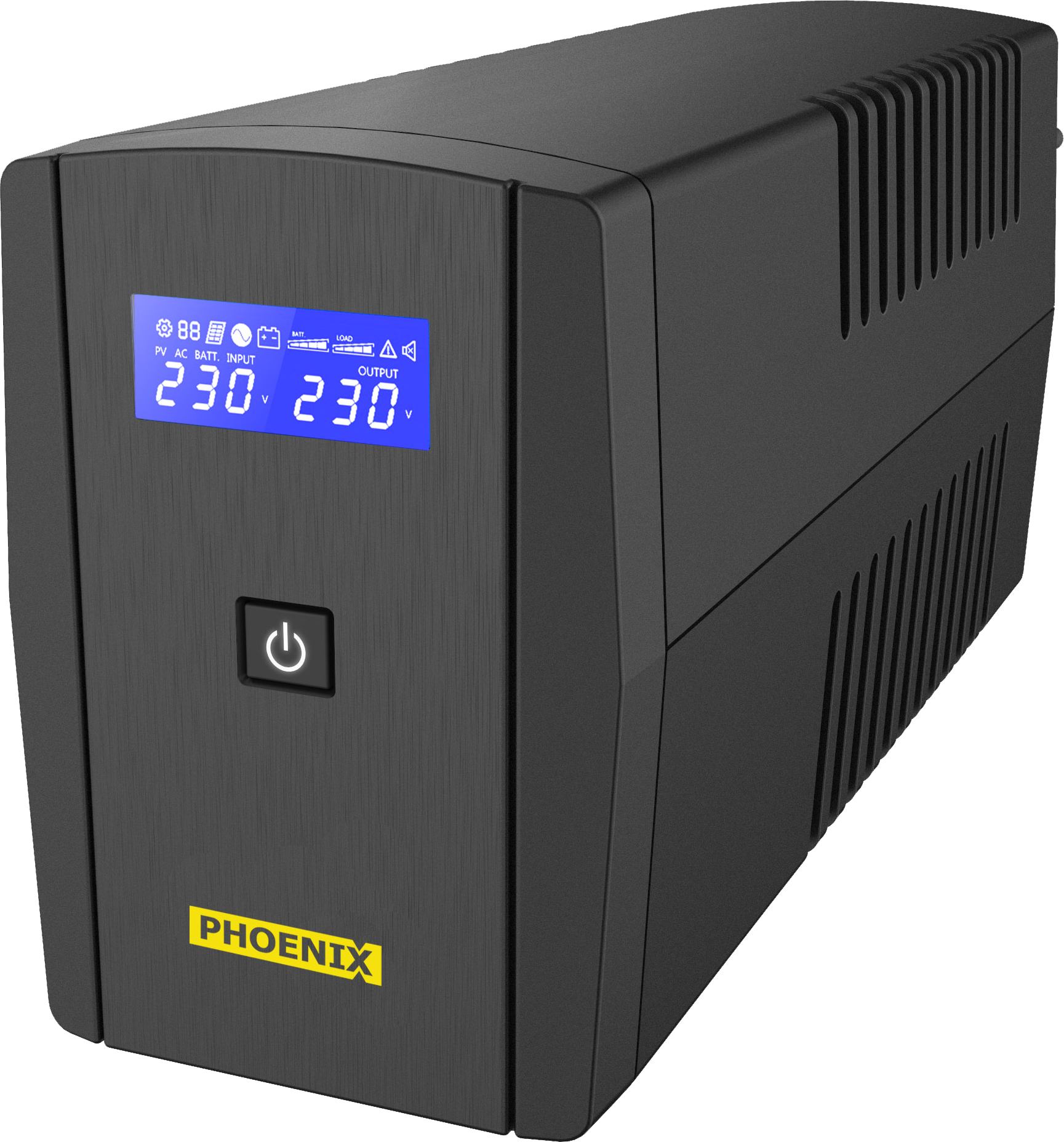

Phoenix UPS VALIANT 1000

Valiant Series UPS Phoenix Valiant is a line interactive UPS providing protection againts power surges and spikes. This series equiped with LCD display to easily visualize and monitor UPS performance and smart outlet functions. They are the perfect choice to protect your data and keep your system available
SKU: PVS-1000-221-SC
P 4,200.00
P 3,580.00
  • Description

Key Features :

Automatic Voltage Regulation (AVR)

Auto-Restart/Auto-charge

Generator Compatible

Cold Start Function

Off-mode Charging

LCD Panel

USB

Specification

Model : 1000VA/600W

Input
Voltage : 220-240V
Voltage Range : 160-290Vac
Frequency : 50/60Hz (Auto-sensing)

Output
Voltage (Battery) : 220-240V
Frequency (Battery) : 50/60Hz±1%
Waveform (Battery) : Simulated Sine Wave
Transfer Time : 4ms Typical
Outlet Type : 6 NEMA 5-15R
Protection : Overload, Short Circuit, Over Discharge and Over Charge

Battery
Typical Back-up Time : 5-20 minutes
Sealed Lead-acid Battery : 12V 9AH * 1
Typical Recharge Time : 8 hours max (recharge time to 90% of capability)

Indicators
Display : LCD Panel
Alarm : Battery Mode, Low Battery, Overload, Fault, etc.
Interface : USB/RJ-11/RJ-45 & Breaker

Management
Auto Recharge : Yes
Auto Restart : Yes
Power Management Software : Yes

Physical
Dimensions (WxHxD) (mm) : 93 x 138 x 286
Netweight (kg) : 6.5

Environment
Temperature and Humidity : 0° to +40°C, 0 to 90% Relative Humidity (Non-condensing)
Noise Level : Less than 40dB
