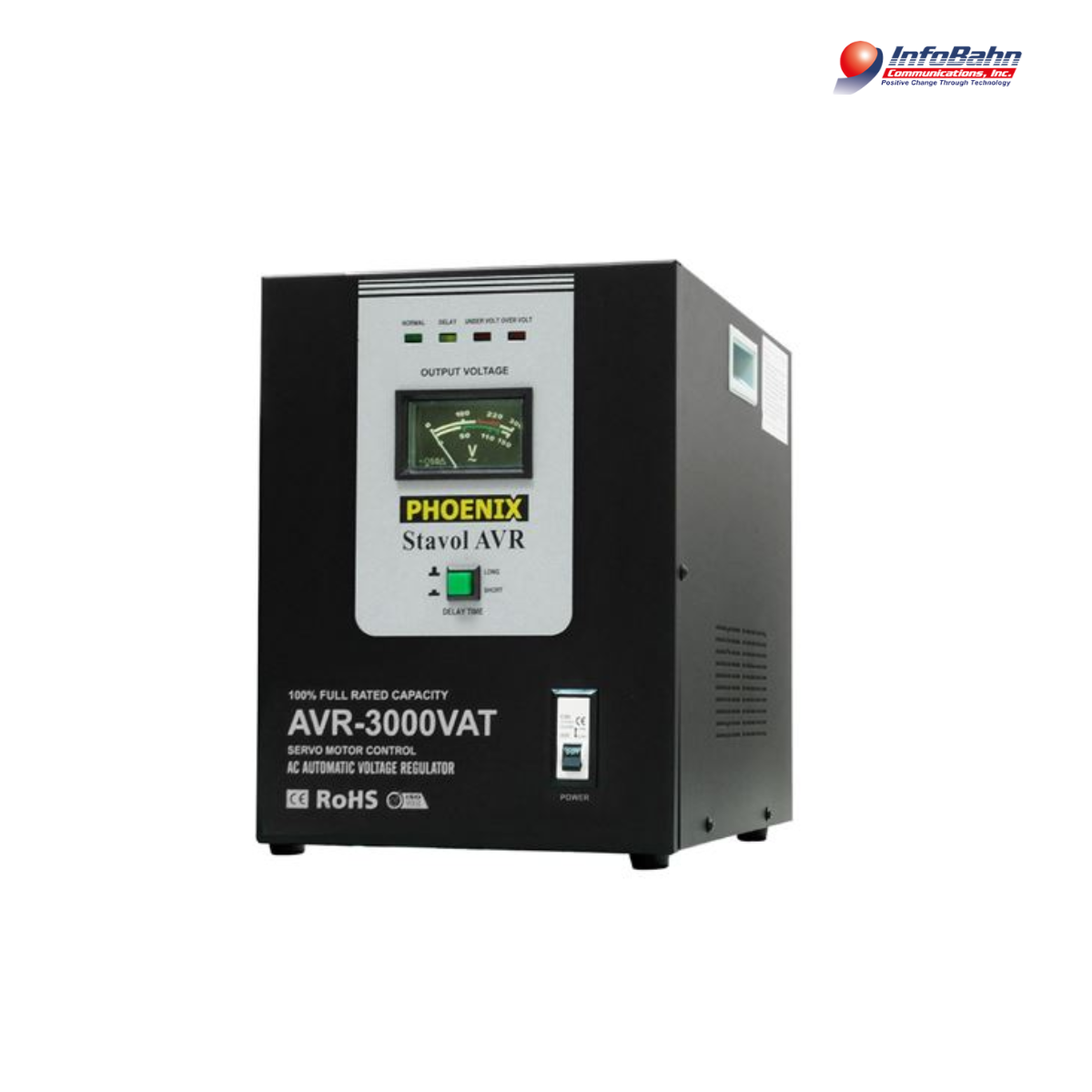

PHOENIX Stavol AVR high accuracy full automatic AC voltage stabilizer are built with high quality materials, 100% full copper windings with true rated capacity.
The voltage stabilizer features no wave distortion, reliable performance and will work continually for a very long time. It is also provided with time delay and over voltage protection.
This product is suitable for applications where power quality is a major concern. It can help ensure that the equipment will run normally.
TECHNICAL SPECIFICATIONS
(SINGLE PHASE)
CAPACITY/ VOLTAGE: 3000VA/220V
INPUT
Voltage Range : 140-260Vac
Frequency : 50 / 60 Hz
OUTPUT
Voltage : 110 / 220Vac
Accuracy : 220V±3% , 110V±6%
Power Factor : up to 0.9
Efficiency : 80%
Response Time : <1.5s
Waveform Distortion : No additional waveform distortion
Ambient Temperature : -5 °C--+ 45 °C
Dielectric Strength : 1500V/1min
Insulation Resistance : ≥.2MΩ
Overload Protection : MCB or fuse
Short Circuit Protection : MCB or fuse
Time Delay : Long Time delay: 5min (+/-2min)
: Short Time Delay: 5s (+/-2s)
