Sorry - this product is no longer available

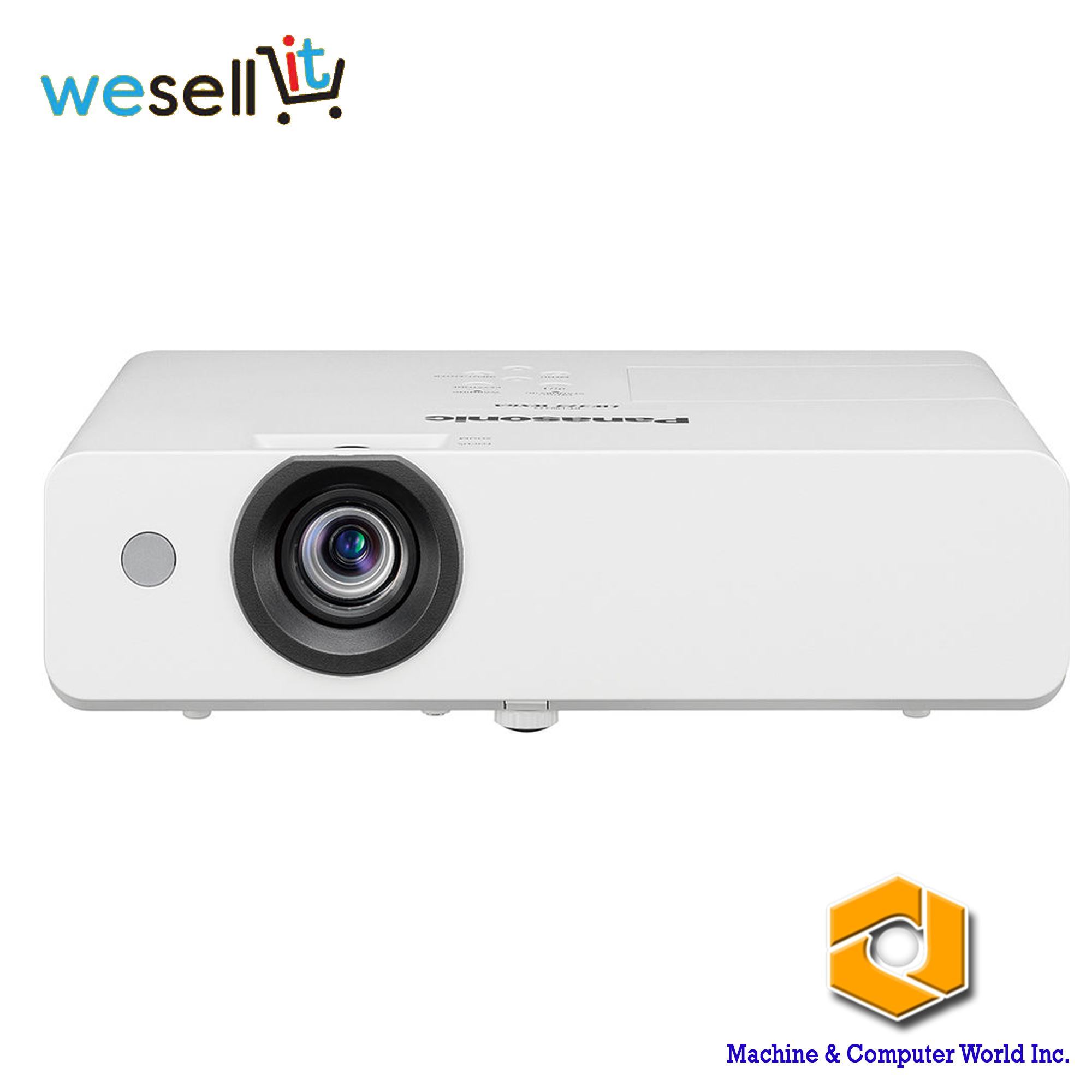

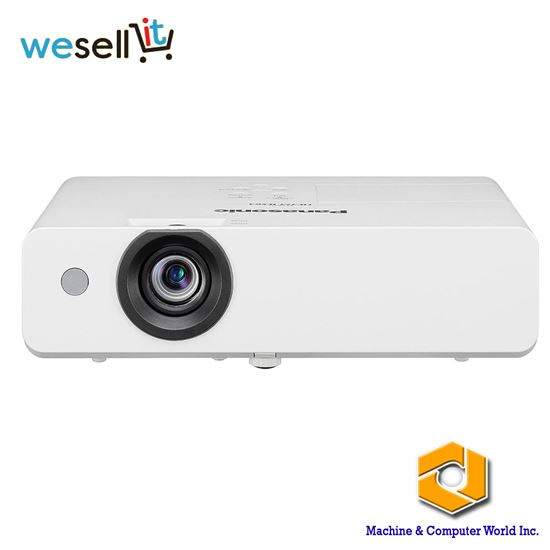

Panasonic Projector 3300 ANSI lumens / XGA

3300 ANSI lumens / XGA
SKU: PT-LB353
P 35,058.82
  • Description

Specifications :


Model PT - LB432
Power Supply : AC 100 - 240 V, 3 5 A, 50 Hz/60 Hz
Power Consumption : 300 W (6 W when Standby mode set to normal, 0.5 W when standby mode set to Eco )

LCD Panel

Display method : Transparent LCD panel ( x 3, R/G/B)

Drive method : Active matrix method

Panel size : 16. 0 mm (0.63 inches) diagonal (4:3 aspect ratio)

Pixels : 786 ,432 (1024 x 768) pixels

Lens : Manuel zoom ( 1.2 x), Manuel focus lens F = 1.6 -23.02

mm, Throw Ration : 1. 48- 1.78:1

Screen size : 0.76-62 m (30 - 300 inches) Diagonally 4:3 aspect ratio

Resolution : 1024 x 768 pixels *3

Brightness *2 ( Lamp power: Normal) : 3.300 lmLamp : 230 W x 1 lamp

Lamp replacement cycle *4 : Normal : 5,000 hours, Eco2: 10.000 hours

Conrtrast *2 : 16, 000: 1 ( all white/ all black , iris : On , Imagemode : Dynamic , Lamp control : Normal)

Scanning Frequency

HDMI IN : 525i (480i) *5 625i ( 576i)*5 ,525p (480p), 625p (576p) , 750 (720) /50p, 1125 (1080) / 60i, 1125 (1080) / 50i , 1125 (1080) / 60p , 1125 (1080) / 50p, 1125 (1080) / 24p, 1125 (1080) / 25p, (1080) /24sF , 1125 ( 1080) /30p VGA size (640 dots X 480 dots) -WUXGA ( 1,920 dots X 1.200 dots) , dot clock : 25 MHz - 162 Mhz

RGB : fH : 15 -91 kHz, fv : 24 -85 Hz, dot clock : 162 MHz or lower

YPBPR ( YCbCR) : fH 15.73 kHz fv: 59.94 Hz [525i (480i)] , fH : 15.63 kHz , fv : Hz [625i (576i] , fH: 31. 47 kHz , Fv : 59.94 Hz [525p (480p)], fH: 31.25 kHz, Fv: 50 Hz [625p (576p], fH : 45.00 kHz, fv: 60Hz [750(720)/60p] , fH: 37.50kHz, fv:50Hz [750 (720)/50p] fH; 33.75 kHz, fv: 60 Hz [1125 (1080)/60i], fH: 28.13 kHz, fv: 50 Hz [1125 (1080)/50i], fH: 28.13 kHz, fv: 25 Hz [1125(1080)/25p], fH: 27.00 kHz, fv: 24 Hz [1125 (1080)/24p], fH: 27.00 kHz, fv: 48 Hz [1125(1080) /24sF], fH: 33.75 kHz, fv:30 Hz [1125 (1080) / 30p] , fH: 67.50 kHz , fv:60 Hz [1125 (1080) /60p] , fH: 56.25 kHz, fv:50 Hz [1125(1080)/50p]

Video / S - Video : fH: 15.73 kHz, fv: 59.94 Hz [NTSC/NTSC4,43/PAL - M/PAL60} , fH: 16.63 kHz , fv: Hz [PAL/SECAM/PAL-N]

Keystone correction range : Vertical - ± 30 ° ( Auto , Manuel ) / Horizontal - ± 15° ( Manuel)

Installation : Ceiling / floor . front/rear

TERMINAL
HDMI IN : HDMI 19 - pin X HDCP compatible , Deep Color compatible, Audio signal : Linear PCM ( sampling frequencies : 48 kHz, 44.1 kHz 32 kHz)

COMPUTER 1 IN : D - sub HD 15 - pin ( female) X 1 [RGB/S - Video/YPB(CB)PR(PR)]

COMPUTER 2 IN : D - sub HD 15 - pin ( female) X 1 [RGB]

MONITOR OUT : D - sub HD 15 - pin ( female) X 1 [RGB / Monitor output]

VIDEO IN : Pin jack X 1

AUDIO IN 1 : M3 (L,R) X 1
.

AUDIO IN 2 : Pin jack X 2 ( L, R)

AUDIO OUT : M3 (L,R) X 1 (variable)

LAN : RJ -45 X 1 for netrwork connections, 10Base - TX, PJLink™ ( Class 1) compatible

SERIAL IN : D - Sub 9 - pin ( female ) X 1 for external control (RS -232C compatible)

USB - Type A : Memory Viewer/Wireless Mdule ( DC5 V , MAX 500 mA)

USB - Type B : USB Display

Built- in speaker : 10 W mono

Operation noise *2 : Normal 37 dB, Eco1: 33 d B, Eco2: 28 dB

Cabinet materials : Molded plastic (PC)

Dimension ( W x H x D ) : 335 mm x 96 mm*6 x 252 mm ( 13 3/16" x 325/32'*6 x 9 29/32")

Weight : Approx .2.9 kg (6.4 lbs)

Operating enviroment : Operating temperature : 5-40 °C ( 41 - 104 °F ) [ Altitude: below 1,400 m (4,593ft), High Land Mode: OFF ]; 5-35 °C ( 41-95 °F) [Altitude: 1,400 -2,700 m ( 4,593 - 8,858ft) , High Land Mode : On1]; 5-30 °C (41 - 86 °F) [Altitude : 2,700 -3,000 m ( 8,858 - 9,843ft), High Land Mode : On2] , Operating humidity : 20 -80 % ( no condensation)

Suppliad accessories: Wireless remote control unit , Power cord ( Number and size of cords depends on r egion), CD - ROM ( Instruction manual, Multi Monitor & Control Software *7 ), Instruction manual ( Basic guide) , Batteries for remotre control ( R03/ LRO3/AAA type battery X 2), RGB Signal cable

A Clear Winner in Price to Performance with 10, 000 - hour Maintenance - free Projection and Reduced TCO with maintenance - free Operation extended to 10,000 hours *1 business professionals and educators can depend on the PL - LB353 Series for bright and clear communication wherever thier day takes them. Weighing less than 3kg, and with set - and projext functionality, these wireless - ready *2 unit are built to impress.

BRILLIANT PERFORMANCE IN A COMPACT BODY

HIgh Brightness and Contrast for Clear, Comfortable Viewing
Power and intelligence combine in a compact and lightweight body for brightness ranging from 3.100 lm to 4.100 lm*3 highest - ever 16,000 : 1 contrast ratio, resulting in easy - to see pictures that resist washout.

Lower Maintenance Reduces TCO
Select a lamp power mode to suit your presentation style and efficiency requirements to achieve hig performance at lower cost. lamp and filter replacement timing *4 is the same in any mode, streamlining maintenance.

Lamp Mode / Replacement cycle of lamp / Replacement cyclee of Air Filters
Eco2 10,000 hours 10,000 hours
Eco1 6,000 hours 6,000 hours
Normal 5,000 hours 5,000 hours

Bright Pictures in Artificial Light
Daylight View Life uses sensor information to optimize color and brightness according to ambient lighting levels. This function is easily accessed using the supplied remote control.

Quit 28 dB*6 Operation for Distraction - free Viewing
Operating noise is low as 28 db*, reducing the chance of distraction during presentation or quiet video scenes.

EASY SETRUP AND MANAGEMENT

Corner Keystone Correction for Angles Projection
If on -site condition require off- center projection , simply designate four screen corners and Horizontal *5 & Vertical Corner Keystone Correction performs necessary adjustments for a distortion - free image.

Curved Screen Correction
Barrel and pincushion distortions are easily corrected when projectiong onto a curved screen surface.

1.2x Zoom Versatility
The PT- LB353 Series includes a 1.2x zoom lens to support a Wide range of Projection Throw - distances . This is usefel when presenting in rooms of diffrent sizes.

Simple Lamp and Filter Replacement
Lamp and filter are accessed via panels in the top and side of the projector. Periodic maintenance takes moments even with the unit attached to a ceiling - mount bracket.

Multi - Projector Monitoring Capability
In fixed intsallations, Multi Monitoring and control Software makes management of multiple projectors easy from a single PC. Wired LAN supports PJlink™ protocol, while serial port is RS - 232C- compatible for remote control

Practical Features Simply Daily Usage

Project wirelessly with Oprtional Module : Project media wirelessly via PC using Presenter light or a compatible third - party application for iOS and Android ™devices. Just connect the oprional T - WML100 Wireless Module to the projector's USB input.

Presenter Light Ver. 1.0 for Windows ® PC's
· Supports images, video , and documents such as PDF and PowerPoint®
· Mirrors PC screen on the big screen
· Project media froem up to four PCs Simultaneously in Split Screen Mode

Memory Viewer Function
Insert a USB memory device into USB port and start projecting content straight away without need od a connected PC.

USB Display Function Projects Media Over USB Cable
Transmission of audio - video content via PC to the projector isw supported over USB cable with an included USB display Mode. * Audio transmission not supported with Mac OS.

HDMI and PC Inputs
Transmit Full HD Video and Graphics using HDMI terminal, or either of two D -sub HD Terminals * for peronal computer. A PC monitor output is also included.

Additional Features
· Built - in 10 W*5 speaker
· Built - in closed - caption decoder
· Projector identification system for up to six projectors
· Blackboard modes for colored screen surfaces
· Configurable start- up logo
· Equipped with a security bar for theft preventation
· Support PJlinks™ Protocol PJLinks
· Direct Power Off

ECO FRIENDLY DESIGN
· No halogenated flame - retardants used in cabinet
· Lead - free lens glass
· Coating - free cabinet for recycling and end of life
· Switchable lamp mode conserves energy
