The RX300 is a cloud-ready thin client built for productivity on the Raspberry Pi 3 platform, providing a rich PC-like experience featuring full-screen, full-motion HD multimedia playback, WiFi and ethernet connectivity, and built-in transparent USB redirection with broad peripheral support.
The RX300 provides a simple-to-deploy, centrally managed, high performance virtual desktop, perfect for use in educational institutions.
RX300 is a cloud-ready, Wi-Fi enabled thin client for Windows and Linux, built on the latest Raspberry Pi 3 platform and optimized for vSpace Pro and VERDE VDI, and Microsoft RDS.
Easy deployment and central management of the virtual desktop environment make the RX300 ideal in educational institutions. The compact RX300 device offers the lowest acquisition cost of NComputing’s product families.
RX300 features full-screen, full-motion HD multimedia playback with built-in transparent USB redirection achieving unparalleled peripheral support. Dual Monitor Support allows an added screen for increased productivity (requires additional SDA hardware module sold seperately).

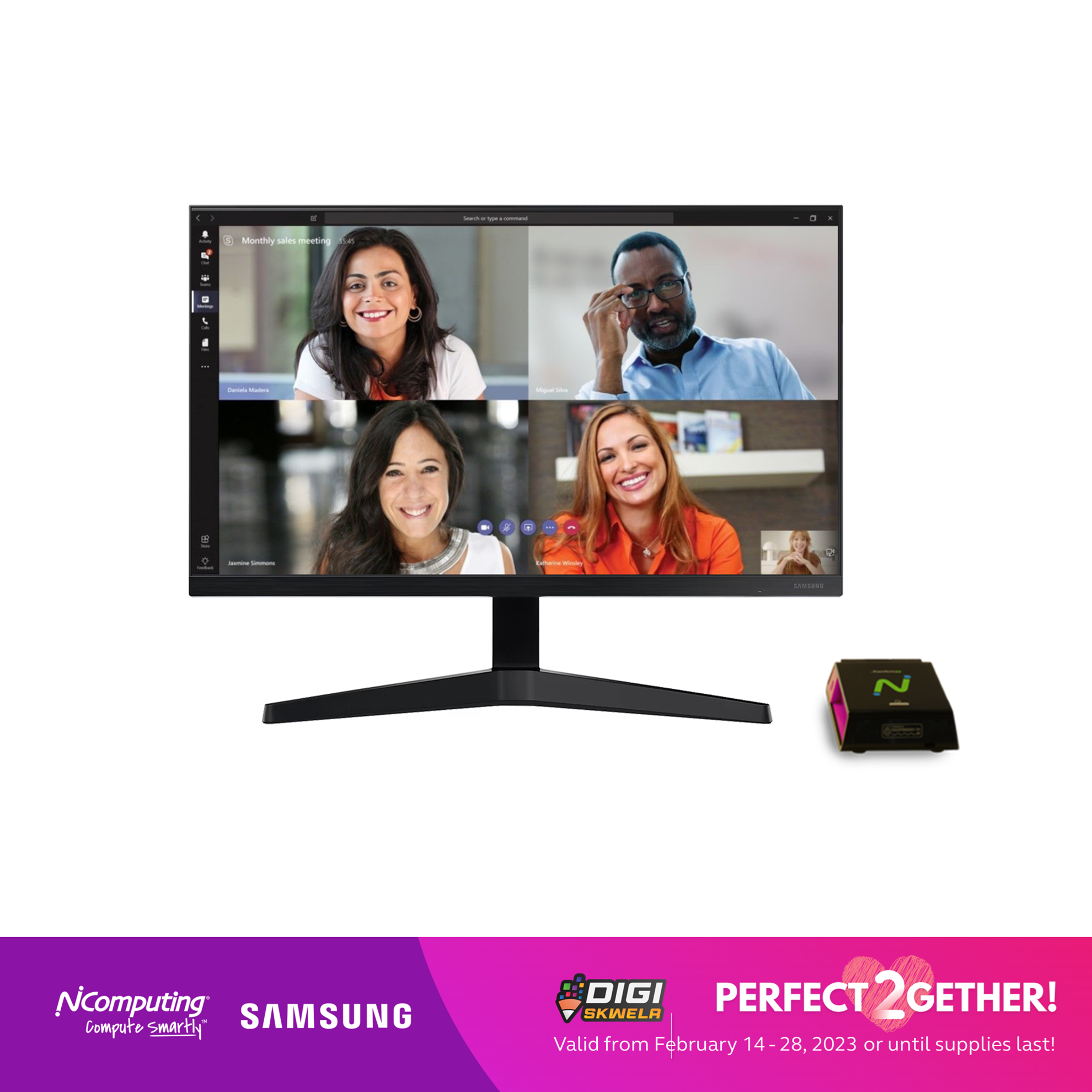

Save when you purchase our PC refresh bundle. RX300 is Perfect2gether with Samsung 24" Bezel-less FHD Monitor
23.8″ Full HD 75Hz IPS AMD FreeSync Monitor with Borderless Design, 3-Sided bezel-less display, IPS Panel, AMD FreeSync, 75Hz Refresh Rate
All-expansive view
Minimalist design, maximum concentration. The 3-sided borderless display brings a clean and modern aesthetic to any working environment. In a multi-monitor setup, the displays line up seamlessly for a virtually gapless view without distractions.
See it from any angle
Sit anywhere and have a full technicolor experience. The IPS panel preserves color vividness and clarity across every inch of the screen. Even on a display this wide, tones and shades look completely accurate from virtually any angle, with no color washing.
Synchronized action
Superfluid entertainment experience. AMD Radeon FreeSync™ keeps your monitor and graphics card refresh rate in sync to reduce image tearing. Watch movies and play games without any interruptions. Even fast scenes look seamless and smooth.
Seamless, smooth visuals
Now, the picture looks flawless. The 75Hz refresh rate delivers more fluid scenes. Whether you're catching up on your favorite TV drama, watching a video, or playing a game, your entertainment has no lag or ghosting effect.
Superior eye care
Protect your eyes and do more. The advanced eye comfort technology reduces eye strain for less strenuous extended computing. Flicker Free technology continuously removes tiring and irritating screen flicker, while Eye Saver Mode minimizes emitted blue light. Your eyes stay fresh longer.
True versatility
Connect to more. With both HDMI and D-sub ports, multiple devices can be plugged straight into your monitor for complete flexibility. Now, your computing environment is even more convenient with additional input possibilities.
Technical specifications (RX300)
Hardware
• Power Supply: 5.1VDC (2.5A) power supply included
• Power Consumption: 5W max (independent of external USB devices)
• LED Indicators: Power, network link, and network activity
• Display:HDMI video output supporting resolutions up to 1920 x 1200 with DDC support, Secondary display via optional SDA (USB to VGA, DVI or HDMI)
• SOC:Broadcom BCM2837, 1.2GHz 64bit Quad Core Cortex A53 Dual core VideoCore IV, Multimedia Processor
• Memory: Mass storage: 16 GB internal Micro SD card, RAM: 1GB
• Monitor Power-save: Power on/off and sleep mode button to disable display output for power savings
• Network and Connectivity: 10/100 Ethernet RJ45 port, Wi-Fi (2.4 GHz 802.11 b/g/n)
• Audio: 16-bit/44kHz/Stereo high quality digital audio with support for USB2.0 audio devices or via 3.5mm stereo audio jacks for headphone
• Peripheral Support: 4x USB 2.0 high-speed ports (two required for keyboard & mouse), All USB ports provide full USB redirection, utilizing device drivers from the server
• Operation mode: Provisioned by IT admin: Thin Client Mode (vSpace Pro, Microsoft RDP, VERDE VDI & Remote Access)
• Embedded operating system: RX300 Linux firmware
• Host machine config: See recommended hardware configuration guide at www.ncomputing.com/support
• Warranty: 1 year
• Mount options: VESA mount compatible (included)
RX300 Connections:
1. Power in (5.1V micro USB)
2. HDMI video output
3. Speaker jack: 16bit/44kHz/Stereo high quality audio
4. 10/100 Mbps Ethernet RJ45 port
5. 4 High-Speed USB 2.0 ports with full USB redirection support (2 required for mouse and keyboard)
6. Kensington security port
7. Power on/off and sleep mode button disables display output for power savings
Technical specifications (Samsung Monitor - LF24T350FHEXXP)
Resolution: 1,920 x 1,080
Aspect Ratio: 16:9 Aspect Ratio
Brightness: 250 cd/m2
Contrast Ratio: 1000:1
Refresh Rate: 75Hz Refresh Rate
Response Time: 5ms Response Time
Display
Screen Size (Class)
24
Flat / Curved
Flat
Active Display Size (HxV) (mm)
527.04 × 296.46 mm
Screen Curvature
N/A
Aspect Ratio
16:9
Panel Type
IPS
Brightness (Typical)
250 cd/㎡
Peak Brightness (Typical)
N/A
Brightness (Min)
200 cd/㎡
Contrast Ratio Static
1000:1(Typical)
Dynamic Contrast Ratio
Mega
HDR(High Dynamic Range)
N/A
Resolution
1,920 x 1,080
Response Time
5 (GTG）
Viewing Angle (H/V)
178°/178°
Color Support
Max 16.7M
Color Gamut (NTSC 1976)
72% (CIE 1931)
Color Gamut (DCI Coverage)
N/A
sRGB Coverage
N/A
Adobe RGB Coverage
N/A
Refresh Rate
Max 75Hz
Power
Power Supply
AC 100~240V
