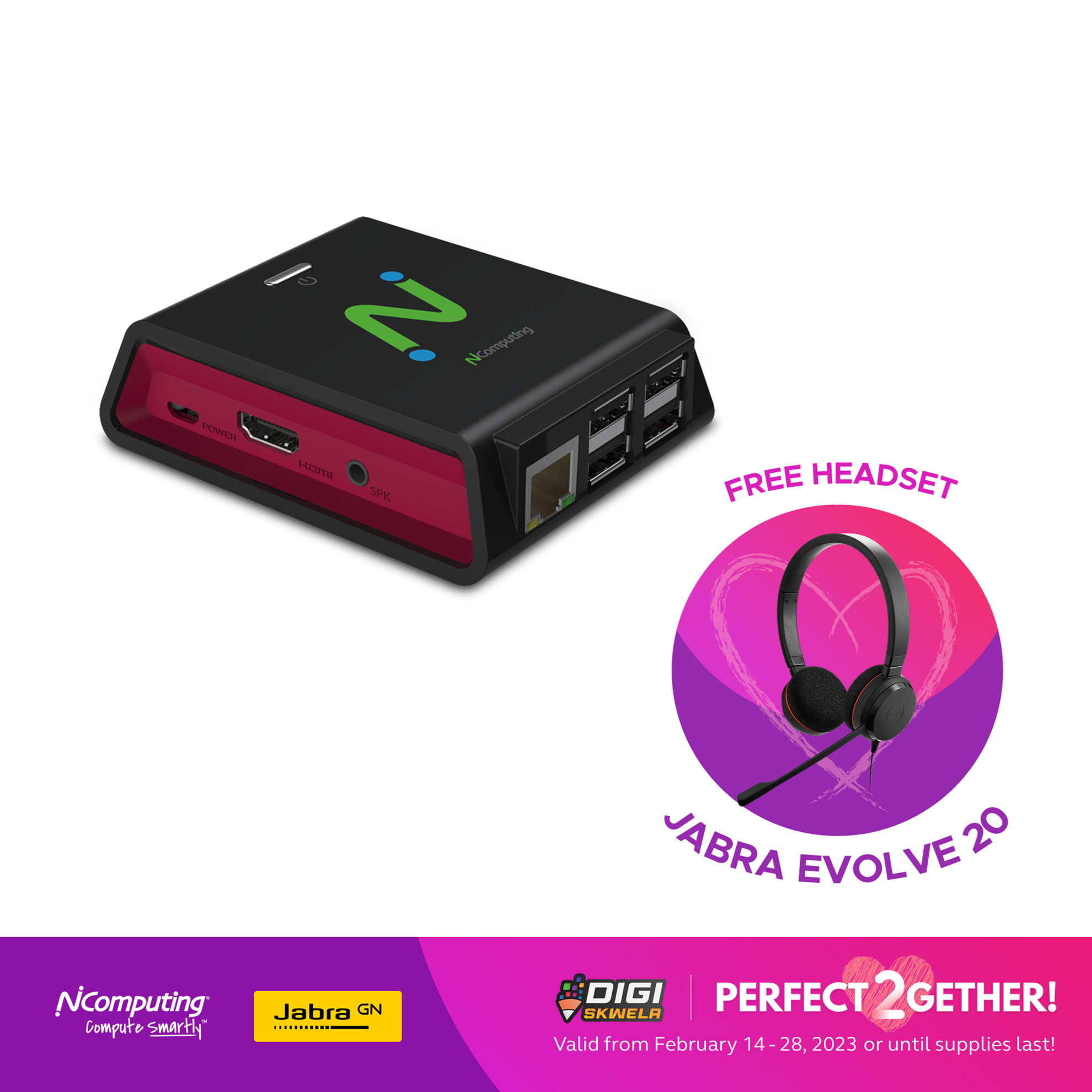

The RX300 is a cloud-ready thin client built for productivity on the Raspberry Pi 3 platform, providing a rich PC-like experience featuring full-screen, full-motion HD multimedia playback, WiFi and ethernet connectivity, and built-in transparent USB redirection with broad peripheral support.
The RX300 provides a simple-to-deploy, centrally managed, high performance virtual desktop, perfect for use in educational institutions.
RX300 is a cloud-ready, Wi-Fi enabled thin client for Windows and Linux, built on the latest Raspberry Pi 3 platform and optimized for vSpace Pro and VERDE VDI, and Microsoft RDS.
Easy deployment and central management of the virtual desktop environment make the RX300 ideal in educational institutions. The compact RX300 device offers the lowest acquisition cost of NComputing’s product families.
RX300 features full-screen, full-motion HD multimedia playback with built-in transparent USB redirection achieving unparalleled peripheral support. Dual Monitor Support allows an added screen for increased productivity (requires additional SDA hardware module sold seperately).
RX300 is Perfect2gether with is our professional headset with easy call management and great sound for calls, Jabra Evolve 20
Clearer conversation for greater efficiency
Entry-level professional headset with easy call management and great sound for calls and music.
Manage calls easily
Get easy access to the most used functions, like volume and mute. Answer and end calls quickly and easily, directly from the control unit.
Flexible plug-and-play connectivity
Works straight out of the box. Installation is as easy as simply plugging it in to the USB port on your computer
Certified for Microsoft Teams
Use the multifunctional button on the headset to launch Microsoft Teams
Technical specifications (RX300)
Hardware
• Power Supply: 5.1VDC (2.5A) power supply included
• Power Consumption: 5W max (independent of external USB devices)
• LED Indicators: Power, network link, and network activity
• Display:HDMI video output supporting resolutions up to 1920 x 1200 with DDC support, Secondary display via optional SDA (USB to VGA, DVI or HDMI)
• SOC:Broadcom BCM2837, 1.2GHz 64bit Quad Core Cortex A53 Dual core VideoCore IV, Multimedia Processor
• Memory: Mass storage: 16 GB internal Micro SD card, RAM: 1GB
• Monitor Power-save: Power on/off and sleep mode button to disable display output for power savings
• Network and Connectivity: 10/100 Ethernet RJ45 port, Wi-Fi (2.4 GHz 802.11 b/g/n)
• Audio: 16-bit/44kHz/Stereo high quality digital audio with support for USB2.0 audio devices or via 3.5mm stereo audio jacks for headphone
• Peripheral Support: 4x USB 2.0 high-speed ports (two required for keyboard & mouse), All USB ports provide full USB redirection, utilizing device drivers from the server
• Operation mode: Provisioned by IT admin: Thin Client Mode (vSpace Pro, Microsoft RDP, VERDE VDI & Remote Access)
• Embedded operating system: RX300 Linux firmware
• Host machine config: See recommended hardware configuration guide at www.ncomputing.com/support
• Warranty: 1 year
• Mount options: VESA mount compatible (included)
RX300 Connections:
1. Power in (5.1V micro USB)
2. HDMI video output
3. Speaker jack: 16bit/44kHz/Stereo high quality audio
4. 10/100 Mbps Ethernet RJ45 port
5. 4 High-Speed USB 2.0 ports with full USB redirection support (2 required for mouse and keyboard)
6. Kensington security port
7. Power on/off and sleep mode button disables display output for power savings
Technical specifications (Evolve 20)
Audio
• Headset bandwidth: Wideband
• Speaker size: ø28x3.9mm
• Speaker sensitivity: 93.6dB SPL @ 1kHz
• Speaker impedance: 32+/-4.8Ω, @ 1.0kHz
• Speaker max input power: Rated Input 5mW @0.4V, max input 10mW @0.56V
• Speaker frequency range: 150Hz~7kHz, @Output S.P.L -10dBB
• Speaker bandwidth Speak mode: 150Hz~7kHz, @Output S.P.L -10dB
• Microphone type: Electret condenser (ECM)
• Microphone sensitivity: F=1kHz, Pin=1Pa, 0dB=1V/Pa, Min=-48dB, Max=-44dB
• Microphone frequency range: 100Hz ~ 10kHz @ 6dB
• Microphone bandwidth: Wideband
• User hearing protection: PeakStopTM
Software integration
• Additional features available via Jabra Xpress and Jabra Direct
Fit & Comfort
• Headset form factor: On-ear headband
Connectivity
• Connection: USB-A
• Cord length: Control cable: 95 cm/37.40 in, HS cable: 120 cm/47.24 in
• AC power supply: USB power supply by PC
Warranty
• 2 years
