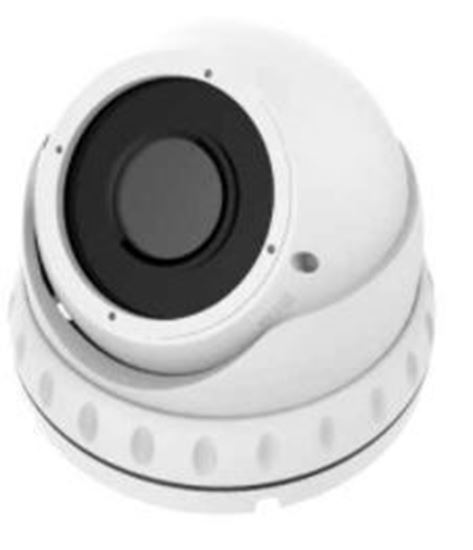

LIRDNTSP200
2MP Outdoor Varifocal Dome IP IR 30m
• 1/2.8"SONY Starvis Back-illuminated CMOS Sensor
• H.265+/H.265/H.264+/H.264 Compression Method
• 2.8-12mm Varifocal Lens
• IR Distance 30m Max.
• IP67 Outdoor Metal Case
Camera
Image Sensor 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
Resolution 2MP 1080P
Effective Pixels 1945(H)*1097(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination 0.002Lux
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Reset Button Optional
Lens
Focus Length 2.8-12mm
Focus Control Manual
Lens Type Varifocal
Pixels 3MP
Night Vision
Infrared LED 14µ x 24PCS
Infrared Distance 30M
IR Status Auto Control
IR Power On Auto Control
Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF Support ONVIF 2.4
P2P YES, Support QR Code
POE Optional, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 2048*1536@15fps
Main Stream 2 1920*1080@30fps
Main Stream 3 1280*720@30fps
Sub Stream 1 720*480@15fps
720*480@30fps
Tri Stream 352*288@15fps
352*288@30fps
IE Brower IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
Smart Phone iPhone, iPad, Android, Android Pad
Camera Features
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
Corridor Pattern Support
Defog Mode Support
ROI Support
BLC Support
WDR WDR: 96dB
Motion Detection Support
Privacy Masking 3 Rectangular Zone
Recording Mode NVR/CMS/Web
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
Audio Optional
SD Card Slot Optional, Support Max 512GB
General
Housing Metal , IP67
Anti-cut Bracket Optional Wall Bracket
IR Cut Filter YES
Operation Temperature -20℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 1100mA
Dimension ￠131 x 93(H) mm
Weight 800g
