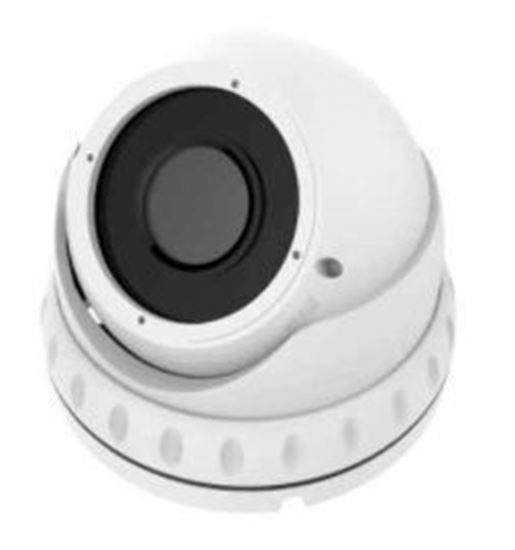

LIRDNT5XSS500
5MP Outdoor Dome IP 5X AF IR 30m
• 1/2.8"SONY Starvis Back-illuminated CMOS sensor
• H.264/H.264+/H.265/H.265+ Compression Method
• 2.7-13.5mm 5X Motor Zoom Auto Focus Lens
• IR Distance 30m Max.
• IP67 Outdoor Metal Case
Camera
Image Sensor 1/2.8" SONY Starvis Back-illuminated CMOS sensor
Resolution 5MP
Effective Pixels 2616 (H) x 1964 (V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination 0.01Lux
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Reset Button Optional
Lens
Focus Length 2.7-13.5mm
Focus Control Auto
Lens Type Motorized
Pixels 4MP
Night Vision
Infrared LED 14µ x 24PCS
Infrared Distance 30M
IR Status Auto Control
IR Power On Auto Control
Network
Ethernet RJ-45 (10/100Base-T)
Wireless /
Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF Support ONVIF 2.4
P2P YES, Support QR Code
POE Optional/Internal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 2592*1944@20fp
2560*1920@20fp
Main Stream 2 2560*1440@25fp
Main Stream 3 1920*1080@30fps
1280*720@30fps
Sub Stream 1 720*480@15fps
720*480@30fps
Sub Stream 2 /
Sub Stream 3 /
Tri Stream 352*288@15fps
352*288@30fps
IE Brower IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
Smart Phone iPhone, iPad, Android, Android Pad
Camera Features
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
Full Starlight /
Corridor Pattern Support
Defog Mode Support
ROI Support
BLC Support
HDR /
WDR DWDR: 50dB
Motion Detection Support
Privacy Masking 3 Rectangular Zone
Recording Mode NVR/CMS/Web
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
Audio Optional
Alarm /
SD Card Slot Optional, Support Max 512GB
RS485 /
General
Housing Metal ,IP67
Anti-cut Bracket NO
IR Cut Filter YES
Operation Temperature -20℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 950mA
Dimension ￠131 x 93(H) mm
Weight 800g
