• Easy scanning and operation relieves stress
• A compact footprint allows the SP-1120N to be placed in locations with space restrictions. And even with its compact body, the scanner supports both USB 3.2 Gen 1x1 high-speed connection and wired network connection are supported, so that it can be used not only near the computer but also in various places under the network environment.
• Simple and easy-to-use operation
• Operation is also simple with only two button to push , Scan/Stop and Power On/Off. Its minimal design reduces risk of human error.
• Reliability of accurate feed and protect documents
• Reliable scanning
• The SP-1120N provides stable scanning with 20 ppm scanning that does not drop speed even when scanning 300 dpi resolution and ADF that holds up to 50 sheets at a time. It assists stress-free and stable operation at the office for maximized precision and efficiency.
• Accurate feeding ability for various documents
• The scanner handles a wide range of paper from thin to thick, as well as plastic cards to suit all scanning needs. Operators need not worry about unexpected interruptions, rescans, or damaged documents.
• Advanced software for higher productivity
• Connect business workflow with PaperStream IP and PaperStream Capture
• The PaperStream IP scanner driver, supporting both TWAIN/ISIS, eliminates the need of making fine setting adjustments for OCR processes. It automatically converts images into exceptionally clean images, accelerating OCR even when scanning wrinkled, soiled and patterned documents.
With an intuitive interface, PaperStream Capture allows users to feed information into their organization's workflow through various capture features during batch scanning effectively and efficiently.
• Searchable documents made possible with ABBYY™ FineReader™ Sprint
• With ABBYY™ FineReader™ Sprint, scanned data can be converted to searchable PDF or office documents such as Word/Excel® so that users can fully utilize the data in day to day work tasks.

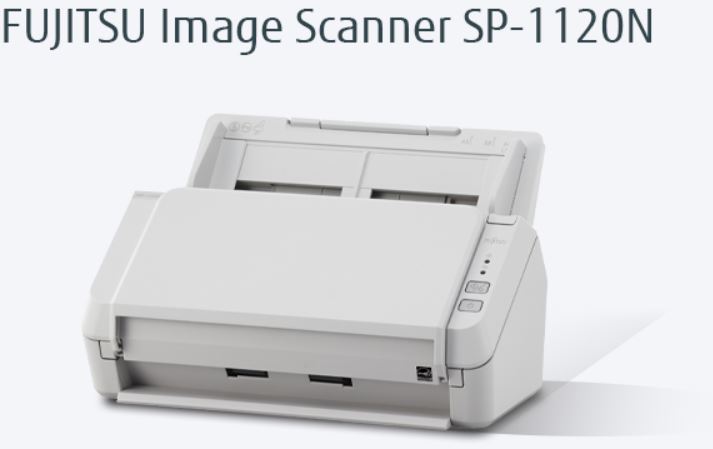

Product Name SP-1120N
Scanner Type ADF (Automatic Document Feeder), Duplex
Scanning Speed (1) (A4 Portrait)
(Color (2)/Grayscale (2)/Monochrome (3)) Simplex: 20 ppm (200/300 dpi)
Duplex: 40 ipm (200/300 dpi)
Image Sensor Type Single line CMOS-CIS x 2 (front x 1, back x 1)
Light Source RGB LED x 2 (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution (4)
(Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) (5)
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White
Document Size Maximum 216 x 355.6 mm (8.5 x 14 in.)
Minimum 52 x 74 mm (2.0 x 2.9 in.)
Long Page Scanning (6) 3,048 mm (120 in.)
Paper Weight (Thickness) Paper 50 to 209 g/m2 (13.4 to 56 lb) (7)
Plastic Card 0.76 mm (0.0299 in.) or less (8)
ADF Capacity (9)(10) 50 sheets (A4 80 g/m2 or Letter 20 lb)
Expected Daily Volume (11) 3,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor)
Interface USB (12)(13) USB 3.2 Gen 1x1 / USB 2.0 / USB 1.1
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode 18 W or less
Power Saving Mode 2 W or less
Auto Standby (Off) Mode 0.3 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions (14) (W x D x H) 298 x 135 x 133 mm (11.7 x 5.3 x 5.2 in.)
Weight 2.5 kg (5.5 lb)
Supported Operating System Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS, Linux (Ubuntu)
Included Software / Drivers PaperStream IP for SP Series (TWAIN/TWAIN x64/ISIS), WIA Driver (15), Image Scanner Driver for macOS (ICA) (15)(16), Image Scanner Driver for Linux (SANE) (15)(16), PaperStream Capture, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap (16), Scanner Central Admin, ABBYY™ FineReader Sprint™ (17), Network Setup Tool for SP Series, SP Series Online Update
Image Processing Functions Multi image output, Automatic color detection, Automatic page size detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Split image, De-Skew, Edge filler, Vertical streaks reduction, Digital endorser, Background pattern removal, Character thickness, Character augmentation, Character extraction
Included Items AC adapter, USB cable, Setup DVD-ROM
