■Efficiency gains with sophisticated software •PaperStream IP - Automatically creates the most suitable image data for hassle-free scanning
The PaperSteam IP driver, which supports TWAIN/ISIS, saves the hassle of fine tuning the document for the OCR process. It not only automatically detects the document size, single / double sided and rotation, but also automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or soiled documents or documents with a background pattern.
•ABBYY™ FineReader™ Sprint*1 – Creates searchable files from your paper documents, allowing you at a later date to find your information easier The scanned data can be converted to searchable PDF or office documents such as Microsoft® Word to be utilized in day to day work tasks. The OCR processing is able to handle 190 languages, which means it is an especially valuable feature in a mixed-language environment.
■Ideal for desktop placement

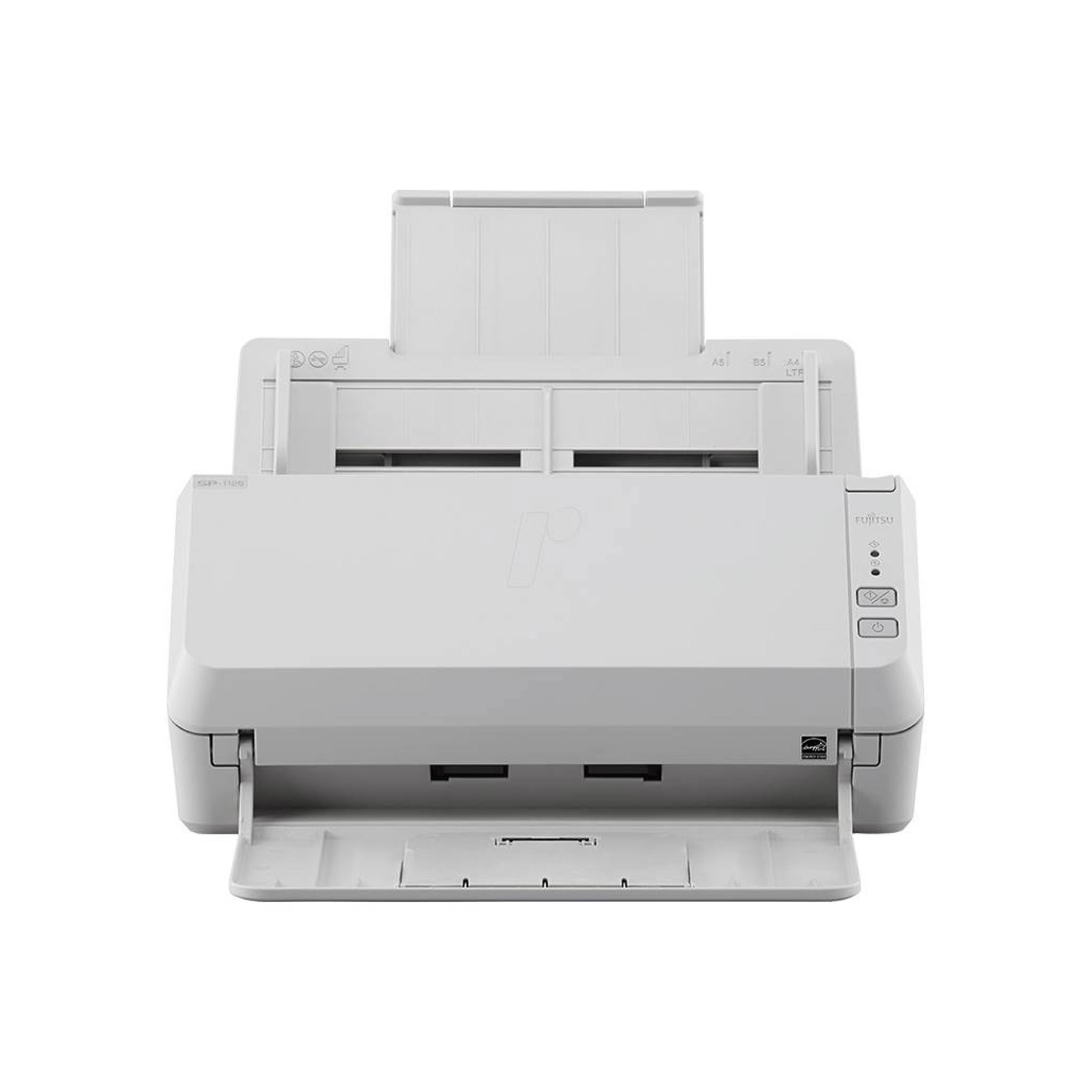

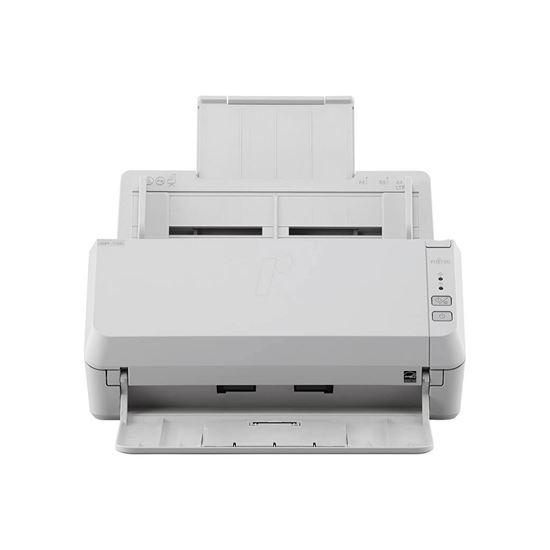

•Compact design The SP-1125 is compact in size, so it can be used at the desk or at reception where space is limited. Even with its compact size, it is equipped with a brake roller to accurately separate each page, and an ultra-sonic sensor to accurately detect multifeed, so the user can scan without worrying about potential problems
•25 ppm scanning speed model
The SP-1125 helps users finish scanning tasks in a short time without stress, with its 25 ppm (A4 color, duplex 200/300 dpi) performance. The automatic document feeder (ADF) holds up to 50 sheets*2 at a time, and the scanning speed is maintained even at 300 dpi.
•Support plastic card scanning The SP-1125 is able to handle various documents from thin to thick paper (50-209 g/m2), as well as plastic cards*3 for various tasks and applications. In the case of over-the-counter services, application forms and plastic ID cards can be scanned at the same time to avoid customers waiting.
■Simple and easy-to-use design
The simple and easy-to-use design can minimize the scanning procedures and reduce human-error. The SP-1125 has a simple operation panel with only 2 buttons (Scan / Stop and Power), and after presetting the bundled Presto!™ PageManager™*4, only one push of the scan button is necessary to store document image data instant
Functional Specification
Supported operating systems: Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit),Windows Server® 2008 (32-bit/64-bit), Linux Ubuntu(1)
Scanner Type: ADF (Automatic Document Feeder)
Scanning modes: Simplex / Duplex, Color / Grayscale / Monochrome
Image Sensor Type: Single line CMOS-CIS x 2 (Front x 1, Back x 1)
Light Source: R, G, B LED x 2 (Front x 1, Back x 1)
Document size: Maximum: A4 Portrait (210 x 297 mm) or Legal (8.5 x 14 in.) or 8.5 x 34 in. (215.9 x 863.6 mm) (long page scanning: 3,048 mm (120 in.))
Minimum: A8 Portrait / Landscape (52 x 74 mm)
Supported operating systems: Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit),Windows Server® 2008 (32-bit/64-bit), Linux Ubuntu(1)
Scanner Type: ADF (Automatic Document Feeder)
Scanning modes: Simplex / Duplex, Color / Grayscale / Monochrome
Image Sensor Type: Single line CMOS-CIS x 2 (Front x 1, Back x 1)
Light Source: R, G, B LED x 2 (Front x 1, Back x 1)
Document size Maximum: A4 Portrait (210 x 297 mm) or Legal (8.5 x 14 in.) or 8.5 x 34 in. (215.9 x 863.6 mm) (long page scanning: 3,048 mm (120 in.))
Minimum: A8 Portrait / Landscape (52 x 74 mm)
Paper weight (Thickness)
Paper: 50 to 209 g/m2 (0.06 to 0.26 mm)* A8 size: 127 to 209 g/m2 (0.15 to 0.26 mm)
Plastic Card: ISO7810 ID-1 type compliant (0.76 mm or less, embossed plastic cards with total thickness of 1.24 mm or less)
Scanning speed (A4, Portrait)
Color|Grayscale|Monochrome: Simplex: 25 ppm (200 dpi / 300 dpi) Duplex: 50 ipm (200 dpi / 300 dpi)
Paper chute capacity (A4 Landscape): 50 sheets (A4: 80 g/m2 or 20 lb)
Expected daily volume: 4,000 sheets/day
Background colors: White (Hardware, scanned background is gray)
Optical Resolution: 600 dpi
Output Resolution:
Color (24-bit)|Grayscale (8 bit)|Monochrome (1 bit): 50 dpi to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output format: Color: 24-bit, Grayscale: 8-bit, Monochrome:1-bit
Internal video processing: 65,536 levels (16-bit)
Interface: USB2.0
Connector shape: B type
Image processing function: Auto color detection, Automatic page size detection, De-Skew, Multi-image, Blank page skip, Error diffusion, Dropout color (R, G, B, Saturation), Image emphasis, Advanced DTC, sRGB, Halftone, Smoothing, Split image, Vertical streaks reduction, Digital endorser, Edge correction, Dynamic threshold(iDTC)
Power requirement: AC 100 V to 240 V ± 10%
Power consumption
Operating: 18 W or less
Sleep mode: 1.6 W or less
Auto standby (OFF) mode: 0.4 W or less
Operating environment
Temperature: 5 to 35 °C (41 to 95 °F)
Relative humidity: 20 to 80% (Non-condensing)
Dimensions: Width x Depth x Height : 298 mm x 135 mm x 133 mm (11.7 in. x 5.3 in. x 5.2 in.)
Weight 2.5 kg
Included software / drivers: PaperStream IP for SP Series driver (TWAIN/TWAIN x64/ISIS), WIA Driver(8), PaperStream Capture Lite, Software Operation Panel, Error Recovery Guide, Presto!™ PageManager™(9), ABBYY™ FineReader™ Sprit(9), Scanner Central Admin
Environmental compliance: ENERGY STAR® and RoHS
