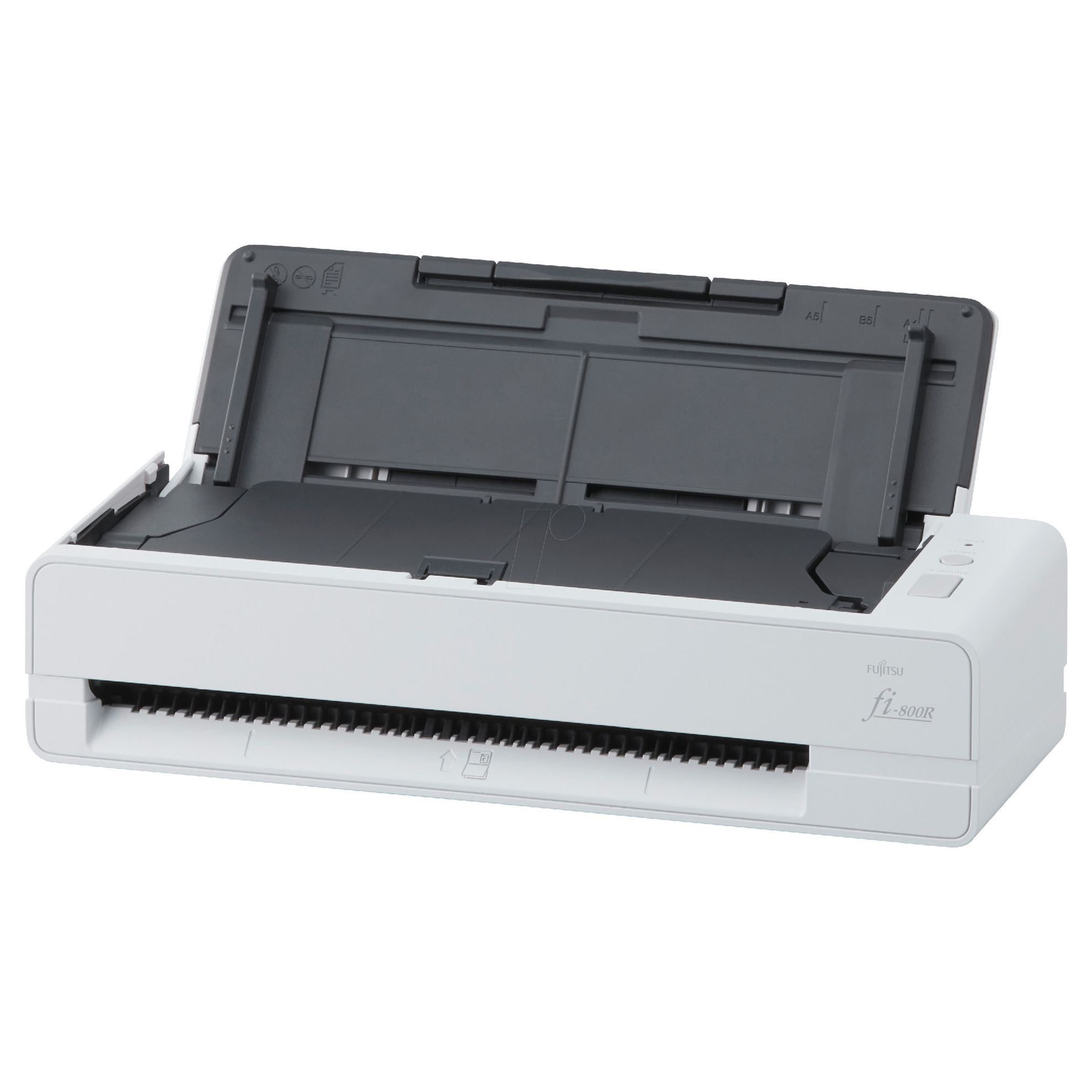

Fujitsu Scanner fi-800R

40ppm, 600dpi, A4 duplex, ADF + passport scanner (automatic document feeder), USB
SKU: FJ0402-FI800R
P 55,150.00
  • Description

Versatile scanning with space-saving design and stress-free usability
The fi-800R is a ultra compact scanner designed to fit in any limited space. Equipped with Dual Path Mechanism, while Return Scan enables robust passport and ID card scanning, U-turn Scan enables continuous scanning. The scanner automatically switches to the appropriate path depending on the location that documents are loaded so that mixed batches can be scanned without stopping to change scanning paths or software profile settings.

Return Scan for passports and ID cards
The Return Scan enables users to scan documents of up to 5 mm thick and complete start to finish in front of the scanner. Documents are ejected from where they were originally scanned in from, enabling users to scan and retrieve documents efficiently. Designed for reception-use, the device easily scans identification documents like passports, thick plastic cards, and folded documents, without a Carrier Sheet.

U-turn Scan for fast continuous scanning with the footprint of half A4 size
Equipped with ADF, the scanner scans A4-size documents continuously at a high speed of 40 ppm/80 ipm (color, 200 dpi/300 dpi). With U-turn Scan, documents are placed in from the top device to eject again from the top. The stacker automatically extends to provide neatly stacked output documents and returns to its original position once scanning has completed with Automatic Stacking Technology, so that users can easily start scanning their next batch. All these features enable the scanner’s space-saving design, allowing users to scan, organize and retrieve documents while multi-tasking with the other hand.

Fast, reliable, and hassle-free scanning for a better customer experience
The scanner has feeding mechanisms that ensure steady scanning eliminating the need to rescan documents. The Automatic Skew Correction, that corrects skewed documents one by one, prevents documents from jamming or a part of a scanned image from appearing missing, even when documents are roughly set.

Functional Specifications
Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed (A4 Portrait) (Color/Grayscale/Monochrome)
- ADF
Simplex: 40 ppm (200/300 dpi) Duplex: 80 ipm (200/300 dpi)
- Manual Feed
3.5 seconds (200/300 dpi)

Image Sensor Type: CIS x 2 (front x 1, back x 1)
Light Source: RGB LED (front x 1, back x 1)
Optical Resolution: 600 dpi
Output Resolution (Color / Grayscale / Monochrome): 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output Format: Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors: White

Document Size
Maximum: 215.9 x 355.6 mm (8.5 x 14 in.)
Minimum: 50.8 x 50.8 mm (2 x 2 in.)
Long Page Scanning: 5,588 mm (220 in.)

Paper Weight (Thickness)
- ADF
Paper: 40 to 127 g/m² (11 to 34 lb)
For A6 or smaller: 40 to 209 g/m² (11 to 56 lb)
For A8 or smaller: 127 to 209 g/m² (34 to 56 lb)
- Manual Feed
Paper: 20 to 413 g/m² (5.4 to 110 lb)
Plastic card: 1.4mm or less
Booklet: 5mm or less
ADF Capacity: 20 sheets (A4 80 g/m² or Letter 20 lb) 30 sheets (A4 52 g/m² or Letter 14 lb)
Expected Daily Volume: 4,500 sheets
Multifeed Detection: Overlap detection (Ultrasonic sensor)
Interface: USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Power Requirements: AC 100 to 240 V ±10 %

Operating Environment
Temperature: 5 to 35 °C (41 to 95 °F)
Relative Humidity: 20 to 80% (Non-condensing)
Environmental Compliance: ENERGY STAR®, RoHS
Dimensions (W x D x H): 296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.)
Weight: 2.0 kg (4.4 lb)

Supported Operating System: Windows® 10 , Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008

Included Software / Drivers: PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver, PaperStream Capture, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™ , Scanner Central Admin

Image Processing Functions: Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal

Included Items: AC cable, AC adapter, USB cable, Setup DVD-ROM
