Outstanding paper feeding delivers reliable batch scanning regardless of the document condition
The new scanners allow the user to scan a wide variety of paper thicknesses (27 to 413 g/㎡), as well as plastic cards with the same feeding mechanism inherited from our high-end models. In addition, Paper Protection constantly checks along the whole document length during scanning and automatically stops paper feeding when error occurs to avoid any damage to the document. All in all these deliver the reliable scanning experience expected from Fujitsu.
Reliable Skew Reducer even when scanning a mixed size batch

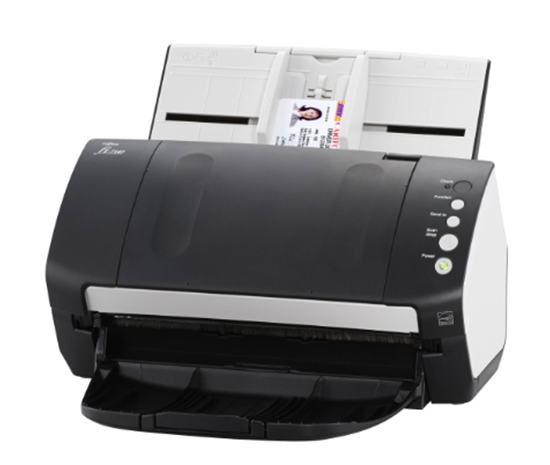

The fi-7140 automatically detect the document size when scanning a mixed size batch. Furthermore, it is equipped with Skew Reducer to detect the alignment of scanned documents and correct paper skews to minimize missing the edge of the scanned image. Users can rest assured that the result will be good even when scanning documents that are not aligned correctly.
Compact design for fast scanning right at your desk
The fi-7140 is a compact model that can be placed on the desk, whether for over-the-counter service or for operations in office. It scans at a speed of 40 ppm (A4, color, 200/300 dpi). Simply press the scan button and it will start scanning within a second. Scanning with the fi-7140 will not keep you, or your customers, waiting.
Automatically creates the most suitable high quality image data for OCR process
The PaperSteam IP scanner driver, which supports TWAIN/ISIS, saves the inconvenience of fine adjusting the settings for the OCR process. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or soiled documents or documents with a background pattern.
Functional Specification
Supported operating systems: Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), macOS (64-bit)
Sensor type: Automatic Document Feeder (ADF)
Scanning modes: Simplex / Duplex, Color / Grayscale / Monochrome
Image sensor type: Color CCD (Charge-coupled device) x 2 (front x 1, back x 1)
Light source: White LED Array x 2 (front x 1, back x 1)
Multifeed detection: Ultrasonic multi-feed detection sensor x 1, Paper detection sensor
Document size
Maximum: 216 x 355.6 mm (8.5 x 14 in.)
Minimum: 50.8 x 54 mm (2 x 2.13 in.) (Landscape / Portrait)
Long Paper Scanning: 216 x 5,588 mm (8.5 x 220 in.)
Paper Weight (Thickness)
Paper: 27 to 413 g/m² (7.2 to 112 lb.) *A8 size: 127 to 209 g/m² (34 to 56 lb.)
Plastic Card: 1.4 mm or less
Scanning speed (A4, Portrait)
Color|Grayscale|Monochrome: Simplex: 40 ppm, Duplex: 80 ipm (200 / 300 dpi)
Paper chute capacity (A4 Portrait): 80 Sheets ( A4: 80 g/m² or 20 lb. )
Daily Duty Cycle: 6,000 Sheets
Background colors: White / Black (Selectable)
Optical resolution: 600 dpi
Output resolution
Color (24-bit)|Grayscale (8-bit)|Monochrome: (1-bit)50 to 600 dpi (adjustable by 1 dpi increments), 1200 dpi (driver)(12)
Output format
Color: 24-bit
Grayscale: 8-bit
Monochrome:1-bit
Internal video processing: 1,024 levels (10-bit)
Interface: USB 2.0 / USB 1.1
Connector shape: B type
Image processing functions: Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Halftone, De-Screen, Emphasis, Color cleanup, Dropout color (None / Red / Green / Blue / Saturation), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Automatic page size detection
Power requirements: AC 100 to 240 V ±10%
Power consumption
Operating: 36 W or less
Sleep mode: 1.8 W or less
Auto standby (OFF) mode: 0.35 W or less
Operating environment
Temperature: 5 to 35 °C (41 to 95 °F)
Relative humidity: 20 to 80% (Non-condensing)
Dimensions: Width x Depth x Height: 300 x 170 x 163 mm (11.81 x 6.69 x 6.42 in.)
Weight: 4.2 kg (9.26 lb.)
Included software / drivers: PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver(1), PaperStream Capture, ScanSnap Manager for fi Series(2), Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™(2), Scanner Central Admin
Environmental compliance: ENERGY STAR® / RoHS
Included items: ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
