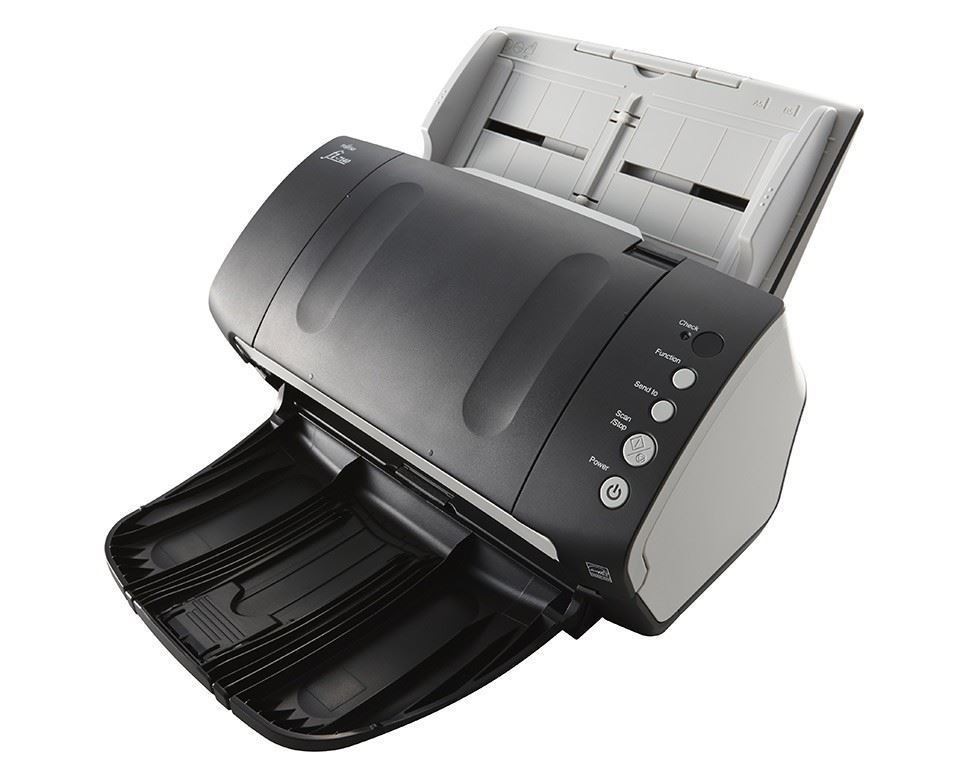

Fujitsu scanner 7140

A4 DEPT DUPLEX SCANNER ADF
P 49,888.89
  • Description

FJ 7140 black


Outsandting paper feeding delivers realibale batch scanning regardless of the document condition : the new scanners allow the user to scan a wide variety of paper thicknesses ( 27 to 413 g/m ) as well as plastic cards with the same feeding mechanism inherited from our High - end models. In addtion, Paper Protection Constanly checks along the whole document lenght during scanning and automatically stops paper feeding when errors occurs to avoid damage to the document. All in all these deliver the reliable scanning experience expected from Fujitsu.

Reliable Skew reducer even When Scanning a mixed size batch : The fi - 7140 automatically detect the document size when scanning a mixed size batch. Furthermore, it is equipped with Skew Reducer to detect the aligment of scanned documents and correct paper Skews to minimize missing the edge of the scanned documents and correct paper skews to minimize missing the edge of the scanned image. Users can rest assured thet the result will be good even when scanning documents that are not aligned correctly.

Compact design for the fast scanning rightr at your desk : The Fi-7140 is a compact model that can be placed on the desk, whether for over the - counter services or for Operations in office . It scans at a speed of 40 ppm (A4, color , 200/300dpi). Simply press the scan button and it will start scanning within a second. Scanning with the f1-7140 will not keep you, or your customers, waiting.

Automatically creates the most suitable high quality image data for OCR process : The PaperStean IP scanner driver, which supports TWAIN/ISIS, save the incovenience of fine Adjusting the setting for the OCR process. It automaticaly converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or Soiled Documents or documents with a background pattern.

Option: Post Imprinter : The optional imprinter units prints indetification markers like dates,alphanumeric codes and symbols on reverse side of the original documents. this makes it easier to locate the originals of scanned documents when you need to reference them.

Option Carrier Sheets : Carrier Sheets allow you to scan documents, photos or clippings large than A4 size. Documents large than A4 (such as A3 or B4) or photos and clippings that can be damaged easily can be digitized when using the Carrier Sheers.
*Carrier Sheets (5 sheets per set) Can be purchased seperately. (The Carrier Sheets be replaced approximately every 500 scans)

fi -7140 Technical Specifications


Supported operating Systems : Windows 8/8.1 (32 -bit/64-bit), Window 7 (32-bit/64-bit), Window Vista ( 32-bit/64-bit), Window Server 2012 (64-bit) Windows Server 2012 R2 (64-bit), Window Server 2008 R2 (64-bit), Window Server 2008 (32-bit/64bit)

Scanner type : Automatic Document Feeder (ADF)

Scanning modes : Simples / Duplex, Color / Grayscale/ Monochrome

Image sensor type : Color CCD ( Charge - coupled device) x 2 (Front x 1 , back x 1)

Light source: : White LED Array x 2 (front x1, back x 1)

Multifeed detection : Ultrasonic mult-ifeed dectection sensor x 1, paper detection sensor

Document size : Maximum - 216 x 355.6 mm (8.5 x 14in.) Minimum - 50.8 x 54 mm (2 x 2.13 in.) (Landscape /Portrait) Long page scanning - 216 x 5,588 mm (8.5 x 220 in.)

Paper Weight ( Thickness ) Paper - 27 to 413 g/m2 ( 7.2 to 112lbs) A8 size : 127 to 209
g/m2 ( 34 to 56 lb) plastic Card - 1.4 mm or less *4

Scanning speed ( A4 Portrait ) Color, Grayscale and Monochrome - Simplex : 40 ppm (200/300 dpi) , Duplex : 80 ipm (200/ 300 dpi)

Paper Chute capacity (A4 Landscape) - 80 Sheets (A4 : 80 g/m2 or 20 lb)

Background color : White / Black (Selectable )

Optical resolution : 600 dpi

Output resolution:  Color (24-bit) Grayscale (8-bit) Monochrome ( 1 - bit ) - 50 to 600 dpi (adjustbale by 1 dpi increments), 1,200 dpi ( driver)

Output Format : Color - 24 -bit Grayscale 8- bit Monochrome 1- bit

Internal video procesing : 65,536 levels (16 - bit)

Interface : USB2.0

Connector Shape : B type

Image Processing Functions : Multi Imgae output , Automatic Color detection, Blank page detection, Dymanic threshold (iDTC) , Advanced DTC , SDTC, Error Diffusion, Halftone, De- Screen, Emphasis , Color cleanup, Dropout color ( None/ Red/ Green/ Blue/Saturation) , sRGB output, Hole punch removal , Index tab cropping, Split image, De- Skew, Edge correction, Vertical Streaks reductions, Automatic page size dectection

Power requirements : AC 100 to 240 V+- 10%

Power cosumption : Operating : 36 W or less Sleep mode: 1.8 W or less

Auto standby : (OFF) mode: 0.35 W less

Operating environment : Temperature : 5 to 35°C ( 41 to 95 °F) Relative humidity : 20 to 80% (Non - Condensing)

Dimension : Width x Depth x Height - 300 x 170 x 163 mm ( 11.81 6.69 x 6.42 in.)

Weight : 4.2 Kg ( 9.26 lb)

Environment compliance : ENERGY STAR and RoHS

Included items : ADF paper chute. AC cable. AC adapter, USB cable, Setup DVD - ROM
