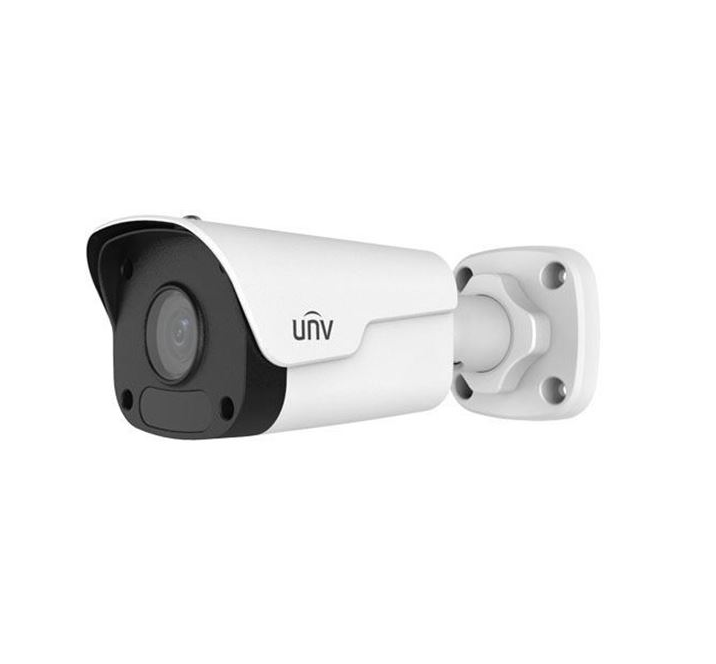

Uniview CCTV 2MP Mini Fixed Bullet Network Camera

SKU: IPC2122LR3-PF40(60)-C
P 2,655.00
  • Description

Key Features

Optics
Day/night functionality
SmartIR, up to 30 m (98 ft) IR distance
Car-grade LEDs, brighter and uniform light compensation
3D DNR (Digital Noise Reduction)


Compression
H.265, H.264, MJPEG
Triple streams
ROI (Region of Interest)

Network
ONVIF Conformance


Structure
Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide input voltage range of ±25%
2-Axis
IK10 vandal resistant
IP66

Specifications


Camera
Sensor : 1/2.7", 2 megapixel, progressive scan CMOS
Lens : 2.8 mm@F2.2
Angle of View (H) : 105.2°
Shutter : Auto/Manual, 1/6 1/100000 s
Min. Illumination : Colour: 0.2 Lux (F2.2, AGC ON) / 0 Lux with IR
IR Range : Up to 30m (98 ft) IR range
Day/Night : IR-cut filter with auto switch (ICR)
S/N : >52dB
WDR : Supported
Noise Reduction : 2D/3D

Video
Max. Resolution : 1920 × 1080
Video Compression : H.265, H.264,MJPEG
Frame Rate : 1080P (1920*1080): Max. 25 fps; 720P (1280*720): Max. 30 fps; D1 (720×576): Max. 8 fps
Video Streaming : Triple
Evaluative Metering : Supported
ROI : Supported
OSD : Up to 8 OSDs
Privacy Mask : Up to 8 areas

Network
Protocols : L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration : ONVIF,API

Interface
Network : 10M/100M Base-TX Ethernet

General
Power : 12 V DC, or PoE (IEEE802.3 af) / Power consumption: Max 5.0W
Dimensions (Ø x H) : Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight : 0.3 kg (0.66 lb)
Working Environment : -35°C +60°C (-31°F 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection : IP66
