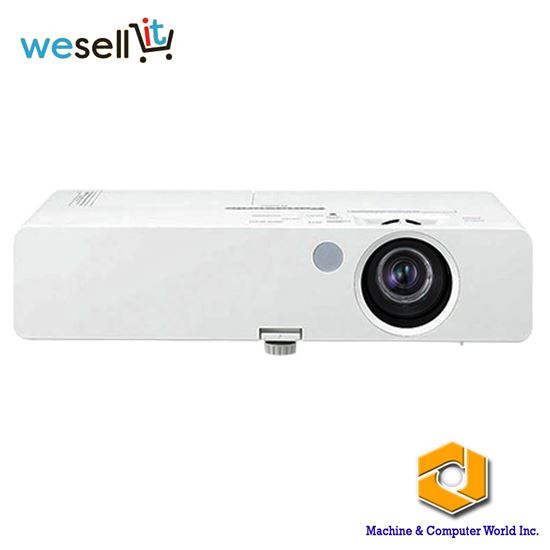

BRILLIANT PERFORMANCE IN A COMPACT BODY
HIgh Brightness and Contrast for Clear, Comfortable Viewing
Power and intelligence combine in a compact and lightweight body for brightness ranging from 3.100 lm to 4.100 lm*3 highest - ever 16,000 : 1 contrast ratio, resulting in easy - to see pictures that resist washout.
Lower Maintenance Reduces TCO
Select a lamp power mode to suit your presentation style and efficiency requirements to achieve hig performance at lower cost. lamp and filter replacement timing *4 is the same in any mode, streamlining maintenance.
Lamp Mode / Replacement cycle of lamp / Replacement cyclee of Air Filters
Eco2 10,000 hours 10,000 hours
Eco1 6,000 hours 6,000 hours
Normal 5,000 hours 5,000 hours
Bright Pictures in Artificial Light
Daylight View Life uses sensor information to optimize color and brightness according to ambient lighting levels. This function is easily accessed using the supplied remote control.
Quit 28 dB*6 Operation for Distraction - free Viewing
Operating noise is low as 28 db*, reducing the chance of distraction during presentation or quiet video scenes.
EASY SETRUP AND MANAGEMENT
Corner Keystone Correction for Angles Projection
If on -site condition require off- center projection , simply designate four screen corners and Horizontal *5 & Vertical Corner Keystone Correction performs necessary adjustments for a distortion - free image.
Curved Screen Correction
Barrel and pincushion distortions are easily corrected when projectiong onto a curved screen surface.
1.2x Zoom Versatility
The PT- LB353 Series includes a 1.2x zoom lens to support a Wide range of Projection Throw - distances . This is usefel when presenting in rooms of diffrent sizes.
Simple Lamp and Filter Replacement
Lamp and filter are accessed via panels in the top and side of the projector. Periodic maintenance takes moments even with the unit attached to a ceiling - mount bracket.
Multi - Projector Monitoring Capability
In fixed intsallations, Multi Monitoring and control Software makes management of multiple projectors easy from a single PC. Wired LAN supports PJlink™ protocol, while serial port is RS - 232C- compatible for remote control
Practical Features Simply Daily Usage
Project wirelessly with Oprtional Module : Project media wirelessly via PC using Presenter light or a compatible third - party application for iOS and Android ™devices. Just connect the oprional T - WML100 Wireless Module to the projector's USB input.
Presenter Light Ver. 1.0 for Windows ® PC's
· Supports images, video , and documents such as PDF and PowerPoint®
· Mirrors PC screen on the big screen
· Project media froem up to four PCs Simultaneously in Split Screen Mode
Memory Viewer Function
Insert a USB memory device into USB port and start projecting content straight away without need od a connected PC.
USB Display Function Projects Media Over USB Cable
Transmission of audio - video content via PC to the projector isw supported over USB cable with an included USB display Mode. * Audio transmission not supported with Mac OS.
HDMI and PC Inputs
Transmit Full HD Video and Graphics using HDMI terminal, or either of two D -sub HD Terminals * for peronal computer. A PC monitor output is also included.
Additional Features
· Built - in 10 W*5 speaker
· Built - in closed - caption decoder
· Projector identification system for up to six projectors
· Blackboard modes for colored screen surfaces
· Configurable start- up logo
· Equipped with a security bar for theft preventation
· Support PJlinks™ Protocol PJLinks
· Direct Power Off
ECO FRIENDLY DESIGN
· No halogenated flame - retardants used in cabinet
· Lead - free lens glass
· Coating - free cabinet for recycling and end of life
· Switchable lamp mode conserves energy
Specifications
Main unit
Power supply : AC100–240V 50/60 Hz
Power consumption : 295 W (0.5 W when STANDBY MODE set to ECO, 8W when STANDBY MODE set to Normal.)
LCD paneL
Panel sizel : 15.0 mm (0.59 inches) diagonal (16:10 aspect ratio)
Display method : Transparent LCD panel (× 3, R/G/B)
Drive method : Active matrix method
Pixels : 1,024,000 (1,280 × 800) pixels
Lens : Manual zoom (1.2 ×), Manual focus lens, F=1.65–1.93, f=18.53–22.18 mm, Throw Ratio: 1.4–1.7:1
Screen size : 0.84–7.62 m (33–300 inches) diagonally
Resolution : 1,280 × 800 pixels (Input signals that exceed this resolution will be converted to 1,280 × 800 pixels.)
Brightness* (Lamp power: Normal) : 2,800 lm
Lamp : 230 W UHM lamp
Lamp replacement cycle : Normal: 4000 h/Eco: 5000 h (This value is calculated by continuously turning the lamp on for 3.5 hours and off for 0.5 hours.)
Center-to-corner uniformity* : 80 %
Contrast*3 : 2,000:1 (Lamp control: Normal, Image mode: Dynamic, Auto Powersave: Off)
Scanning frequency
HDMI : 525i (480i)*, 625i (576i)*, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p Dot clock: 25–162 MHz (640 x 400 pixels to 1920 x 1200 pixels) * Pixel-Repetition signal (dot clock frequency 27.0 MHz) only
RGB : fH: 15–91 kHz, fV: 24–85 Hz, dot clock: 162 MHz or lower
YPBPR (YCBCR) : fH: 15.7 kHz, fV: 59.9 Hz [525i (480i)], fH: 15.6 kHz, fV: 50.0 Hz [625i (576i)], fH: 31.5 kHz, fV: 59.9 Hz [525p (480p)], fH: 31.3 kHz, fV: 50.0 Hz [625p (576p)], fH: 45.0 kHz, fV: 60.0 Hz [750 (720)/60p],fH: 37.5 kHz, fV: 50.0 Hz [750 (720)/50p],fH: 33.8 kHz, fV: 60.0 Hz [1125 (1080)/60i], fH: 28.1 kHz, fV: 50.0 Hz [1125 (1080)/50i], fH: 28.1 kHz, fV: 25.0 Hz [1125 (1080)/25p],fH: 27.0 kHz, fV: 24.0 Hz [1125 (1080)/24p], fH: 27.0 kHz, fV: 48.0 Hz [1125 (1080)/24sF], fH: 33.8 kHz, fV: 30.0 Hz [1125 (1080)/30p], fH: 67.5 kHz, fV: 60.0 Hz [1125 (1080)/60p], fH: 56.3 kHz, fV: 50.0 Hz [1125 (1080)/50p]
Video/S-Video : fH: 15.7 kHz, fV: 59.9 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.6 kHz, fV: 50.0 Hz [PAL/SECAM/PAL-N]
Keystone Vertical : ±30°
correction range Horizontal : ±30°
Installatio : Ceiling/floor, front/rear
Terminals
HDMI IN : HDMI 19-pin × 1, Deep Color, compatible with HDCP, Audio signal: Linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER IN : D-sub HD 15-pin (female) × 1, compatible with RGB/YPBPR (YCBCR)/YC
RGB : 0.7 Vp-p, 75 ohms (SYNC IN GREEN: 1.0 Vp-p, 75 ohms), SYNC/HD: TTL high impedance, automatic positive/negative polarity compatible, VD: TTL high impedance, automatic positive/negative polarity compatible (The SYNC/HD and VD terminals do not support 3 value SYNC.)
Y, PB (CB), PR (CR) : Y: 1.0 Vp-p (including sync signal), 75 ohms ,
Y/C : Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
VIDEO IN : Pin jack × 1, 1.0 Vp-p, 75 ohms
AUDIO IN : M3 jack × 1
SERIAL IN : D-sub 9-pin (female) × 1 For external control (RS-232C compatible)
VIEWER/WIRELESS : USB type A x 1 (output DC 5 V, max.500 mA) Memory Viewer / Wireless module (Model No.: ET-WML100E) compatible
Built-in speaker : 1 W (monaural)
Cabinet color : Champagne gold
Dimensions (W × H × D) : 307 mm × 80 mm (when legs at shortest position) × 210 mm (12-3/32 × 3-5/32 × 8-1/4 inches)
Weight : Approx. 2.3 kg (5.1 lbs)
Operating environment : Operating environment temperature: Normal use: 0 °C (32 °F) to 40 °C (104 °F) (Elevation: below 1,400 m (4,593 ft); When the ambient operating temperature is 35–40 °C (95–104 °F), [Lamp Power] will switch automatically to [Eco mode].)
0 °C (32 °F) to 35 °C (95 °F) (Elevation: 1,400 m (4,593 ft)–2,700 m (8,858 ft))
Operating environment humidity: 20–80 % (no condensation)
Supplied accessories : • ·Wireless remote control unit (× 1) • Power cord (× 2) • Power cord safety hook • CD-ROM (× 1) ··· Logo Transfer Software • Batteries for remote control (R03/LR03/AAA type battery (× 2)) • RGB signal cable (× 1)
